WBLF-1602-AT2200 385mm (16inch) 12V 200W High Airflow Brushless Cooling Fan - Sunlight Motor

Introducing Sunlight Motor’s WBLF-1602-AT2200 — a 385mm (16inch) 12V 200W brushless cooling fan for high-demand heat management.
It delivers 2900m³/h airflow (2700rpm) and supports PWM speed control (100-1000Hz) for precise tuning.
Boasting IP68 waterproofing, it operates reliably in -40~+85℃ environments with a ≥25000-hour lifespan.
Low noise (≤80dB) and 9-16VDC compatibility make it ideal for robust heat dissipation needs.


  • WBLF-1602-AT2200

Voltage:
12v
Availability:
Quantity:
Inquire Add to Basket

Specification of  385mm (16inch) 12V 200W High Airflow Brushless Fan



 Voltage range 9-16VDC
Rated current ≤16A
Power 200W
Maximum air volume 2900m³/h
Rotation speed 2700rpm
Fan life ≥25000h
0perating temperature -40℃~+105℃
Fan stopping temperature  105°C
PWM/E frequency range 100-1000Hz
Weight 2.5KG

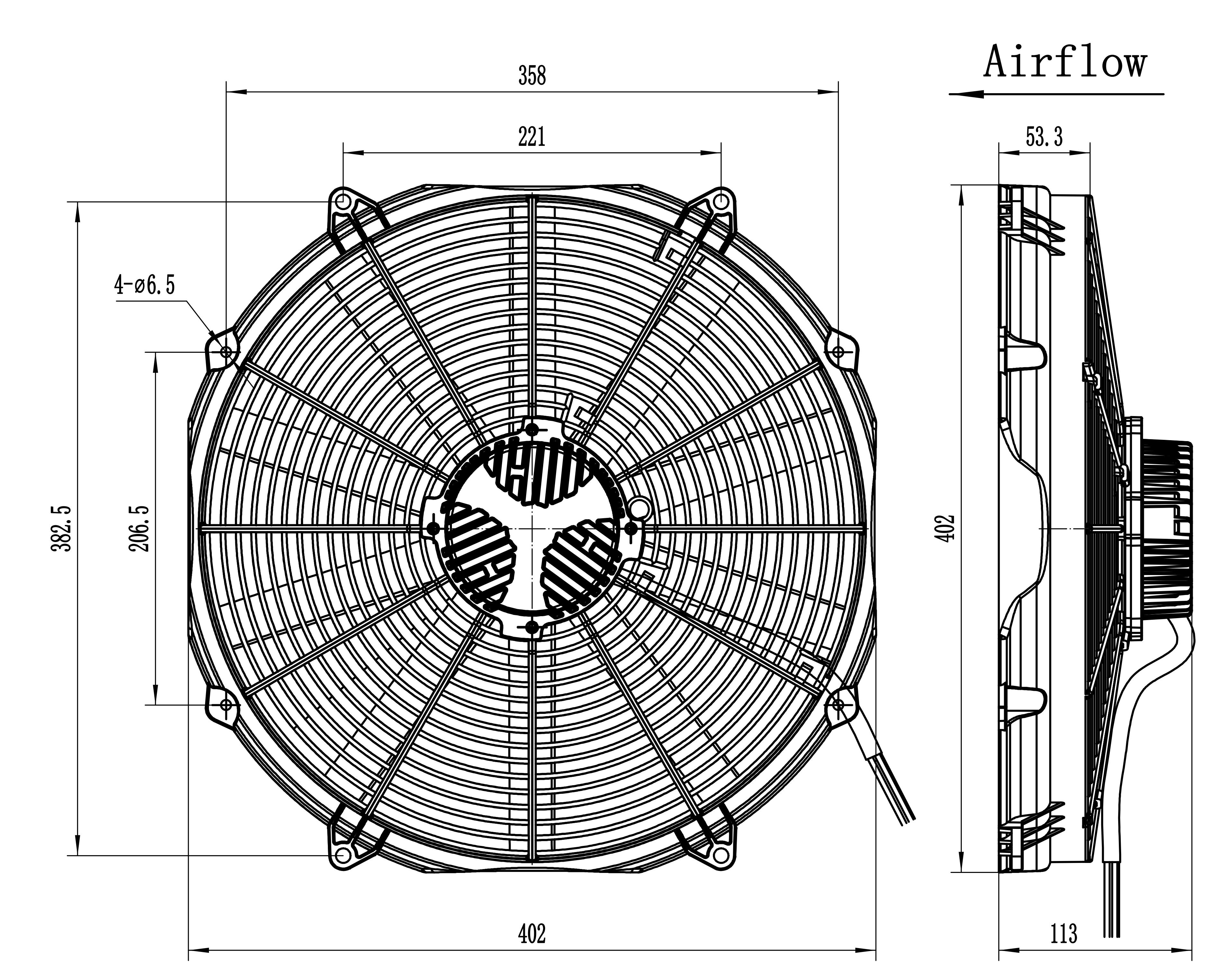

Drawing of 385mm (16inch) 12V 200W High Airflow Brushless Fan


擦除WBLF-1602-AT2200 规格书(直叶吹风)_01


Real photo of  385mm (16inch) 12V 200W High Airflow Brushless Fan


14inch brush (2)


Advantages of  385mm (16inch) 12V 200W High Airflow Brushless Fan


  • High Performance Drop-In Option -- WBLF-1602-AT2200 385mm/16inch cooling fan: 2700rpm, 2900m³/h powerful airflow.

  • Flexible Control -- PWM speed control (100-1000Hz, 20-100% duty cycle) for precise adjustment.

  • Robust Sealing & Durability -- IP68 waterproof, -40~+85℃ operating range, ≥25000-hour lifespan (heavy-duty applicable).

  • Lower Noise & Higher Efficiency -- Brushless design, ≤80dB low noise, 200W energy-efficient operation.

In-House Full Control -- Sunlight Motor internal R&D, design, manufacturing for consistent quality.

  • Independent Testing & Certification -- EMC, vibration compliant; 660VAC insulation resistance for reliable protection.

  • Customization Service -- Tailored wire length (500±20mm), harness specs & connectors.

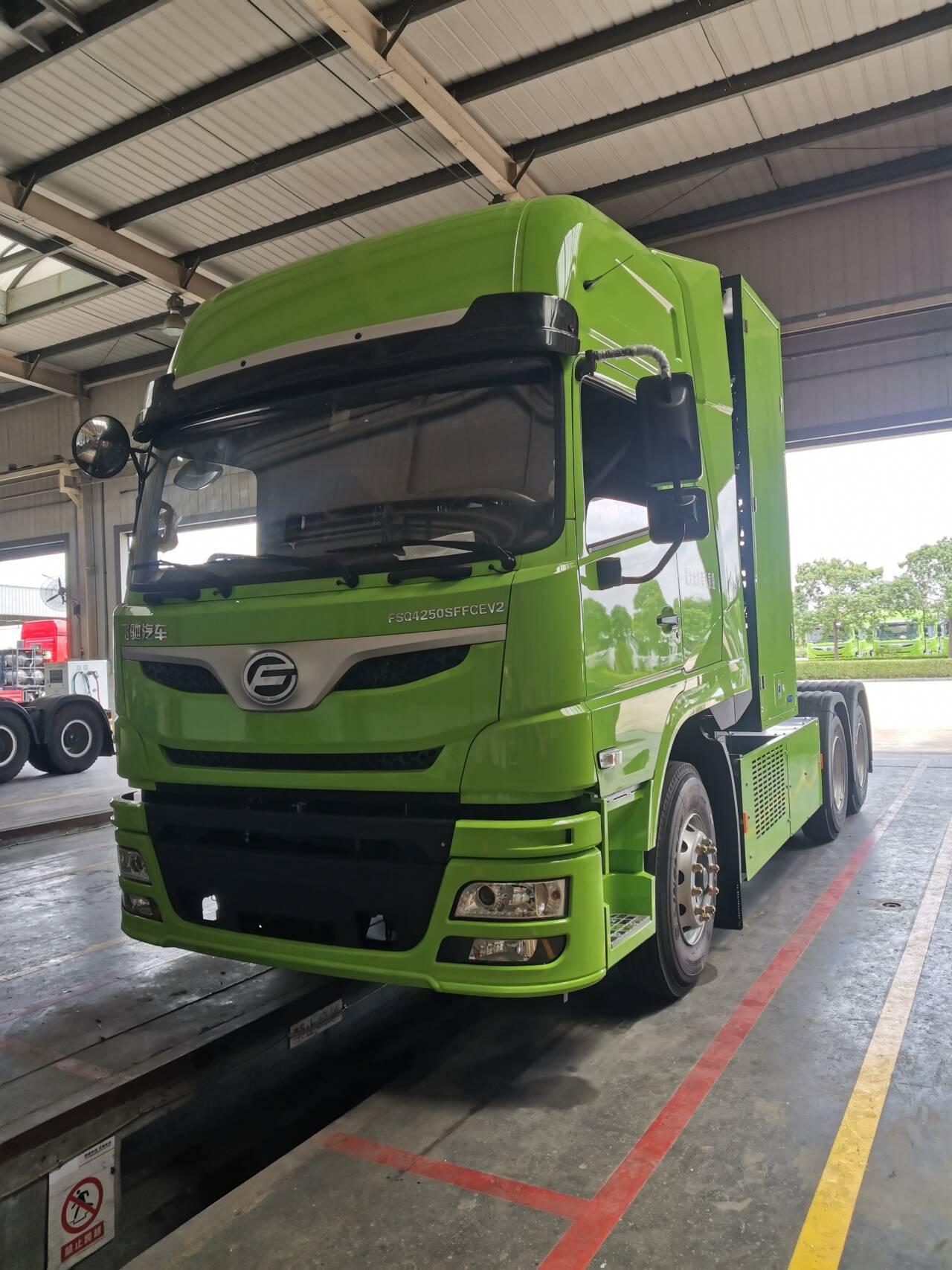

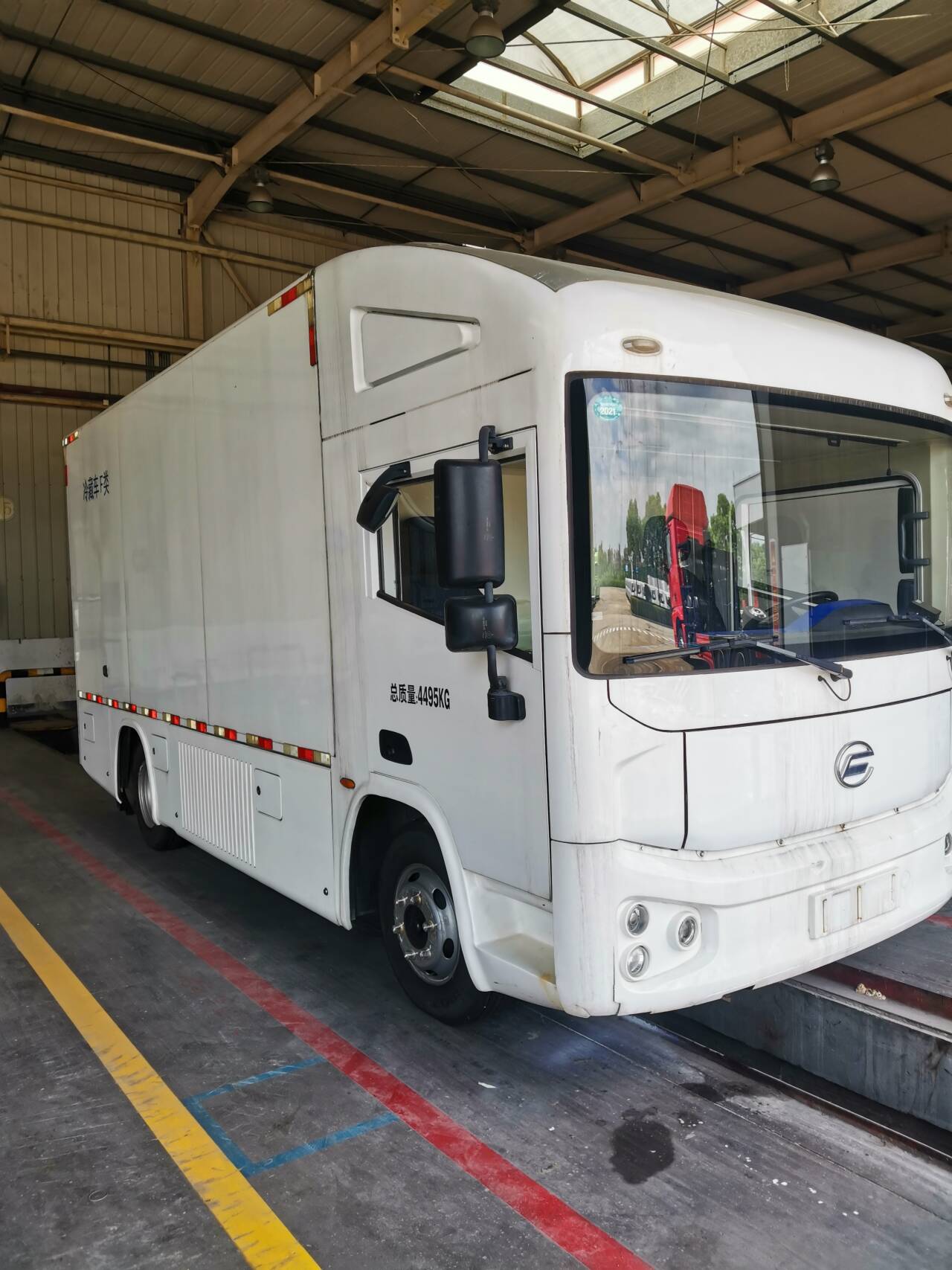

Application of 385mm (16inch) 12V 200W High Airflow Brushless Fan


Suitable for use in

  • Trucks, trailers, and refrigeration units

  • Condensers, radiators, heat exchangers

  • Construction & utility vehicles

  • Buses, ambulances, engineering vehicles

  • Agricultural, mining, forestry machinery

  • New energy vehicles, charging station thermal managemer

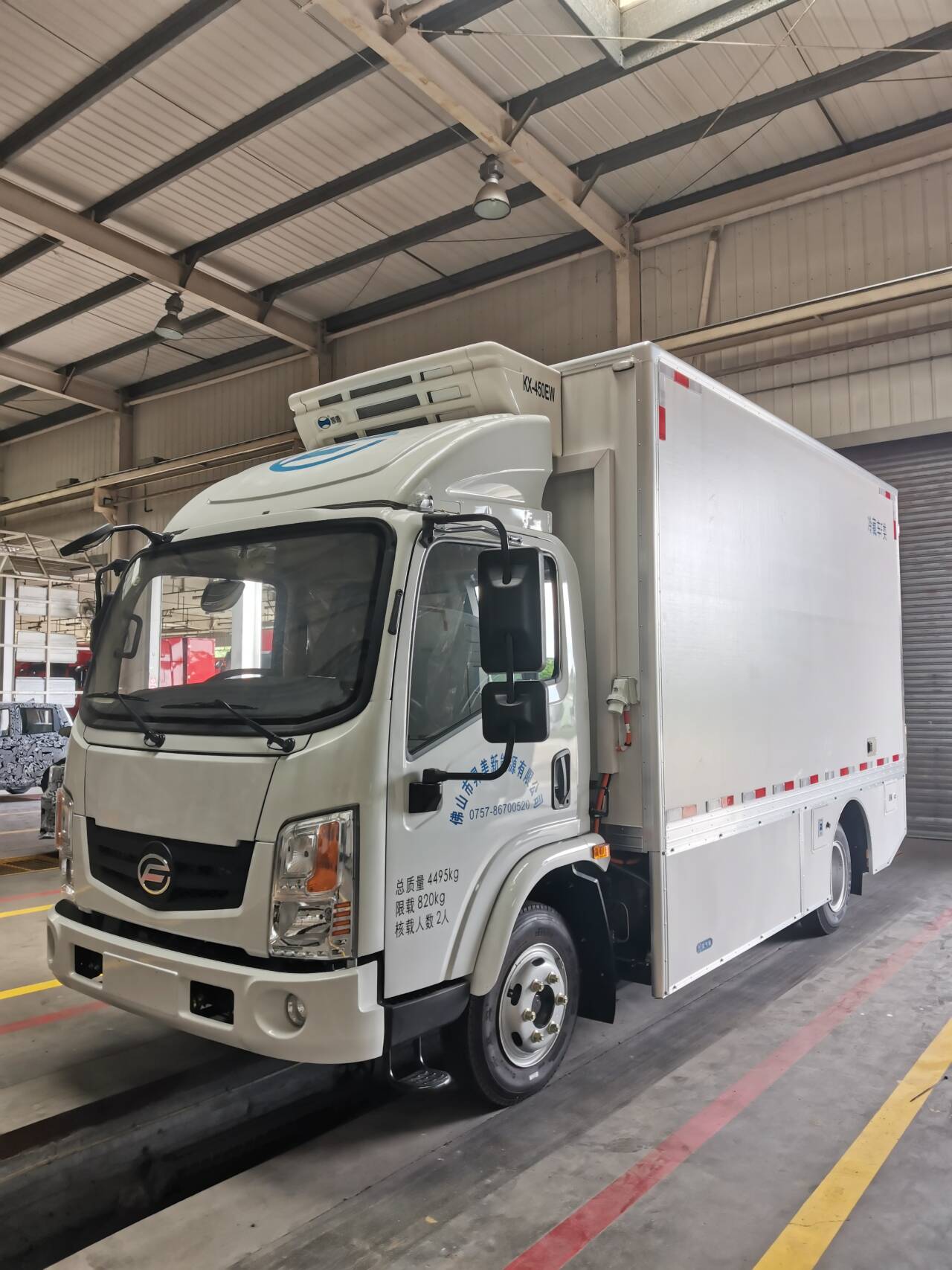

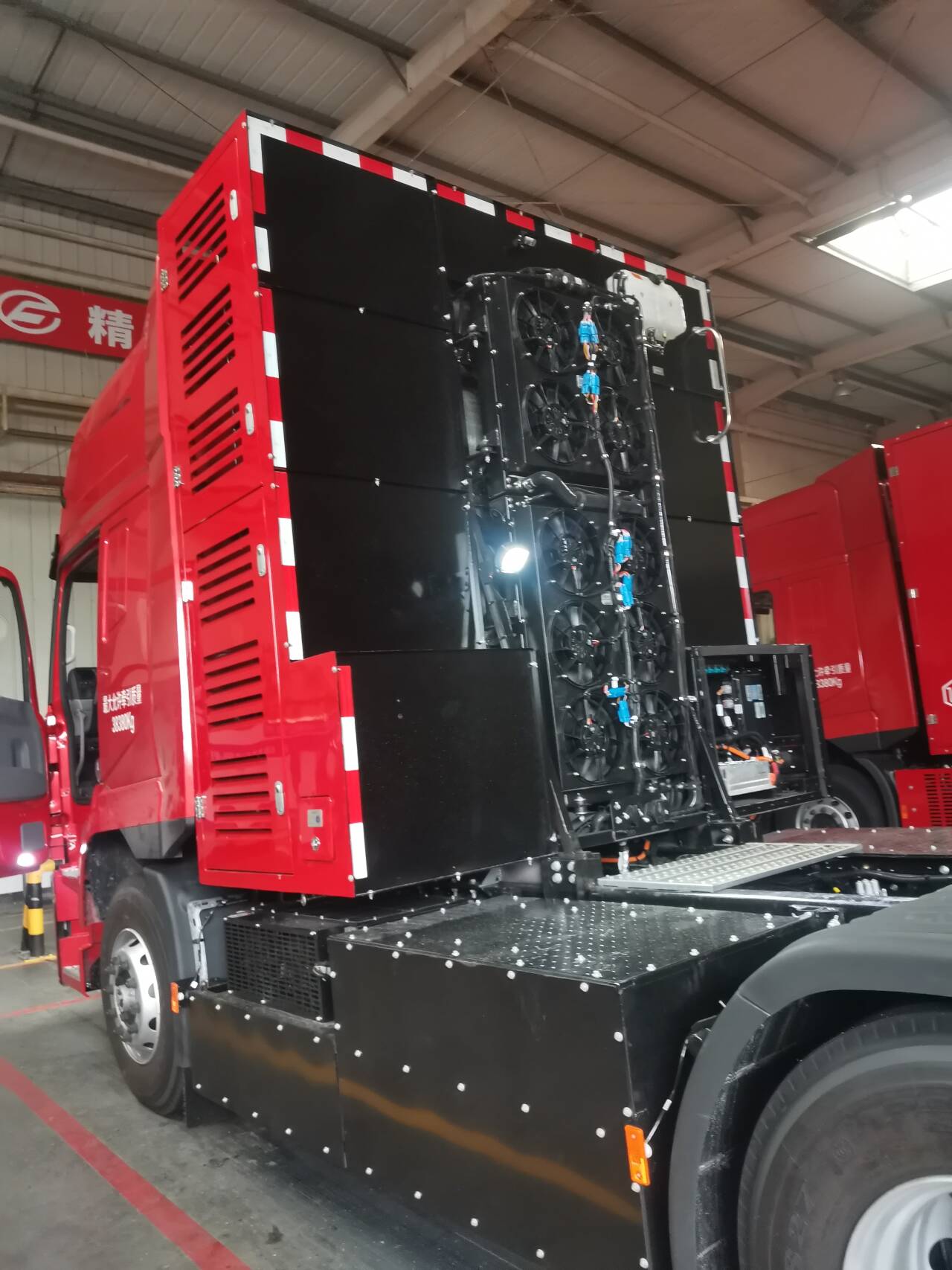

    8dbccac7d2c5b613f20f1eaf0ad4f28a_720  0dcc7b5d7aa422ad230db5b4d8088a5f_720 99c53b9f7c1435710f4178aeb71d9d73_720 ef6a362d0f79a7cba7074f3f460c67ba_720应用图





Installation & Usage Tips


  • Mount Flat & Securely: Use a flat mounting surface with proper torque. Avoid frame deformation—prevents airflow imbalance & reduces 2900m³/h cooling efficiency.

  • Maintain Clear Airflow: Do not obstruct inlet/outlet paths; allow free airflow—avoids equipment overheating & unplanned shutdowns.

  • Wiring Polarity: Connect correct polarity (positive-negative matching). Reverse polarity risks driver damage (anti-reverse protection included to skip repair costs).

  • Stable Power Supply: Keep voltage 9-16VDC (nominal 12V) for stable operation; power ripple ≤1%—prevents speed fluctuations & cooling failure.

  • Use Clean Environments: IP68 rated; avoid corrosive liquids; -40~+85℃ operating temp—fits harsh, 95% max humidity environments.

  • Routine Checks: Periodically inspect wiring/connections—catches issues early to avoid fan malfunctions.

  • Storage Conditions: Store dry at -40~+85℃—preserves materials & ≥25000-hour lifespan.

  • Control & Regulation: Use PWM (100-1000Hz); 20-100% duty cycle—precisely tunes cooling to load demands.


About us


Since 1990, Sunlight has specialized in manufacturing high-performance brushless fans and blowers. Certified with ISO9001 and IATF16949, our products meet CE, RoHS, and EMC standards. Widely applied in automotive, machinery, refrigeration and energy industries. Sunlight is committed to delivering quality, innovation, and reliable cooling solutions.

All fans undergo 100% testing before shipment, with customization and technical support available.

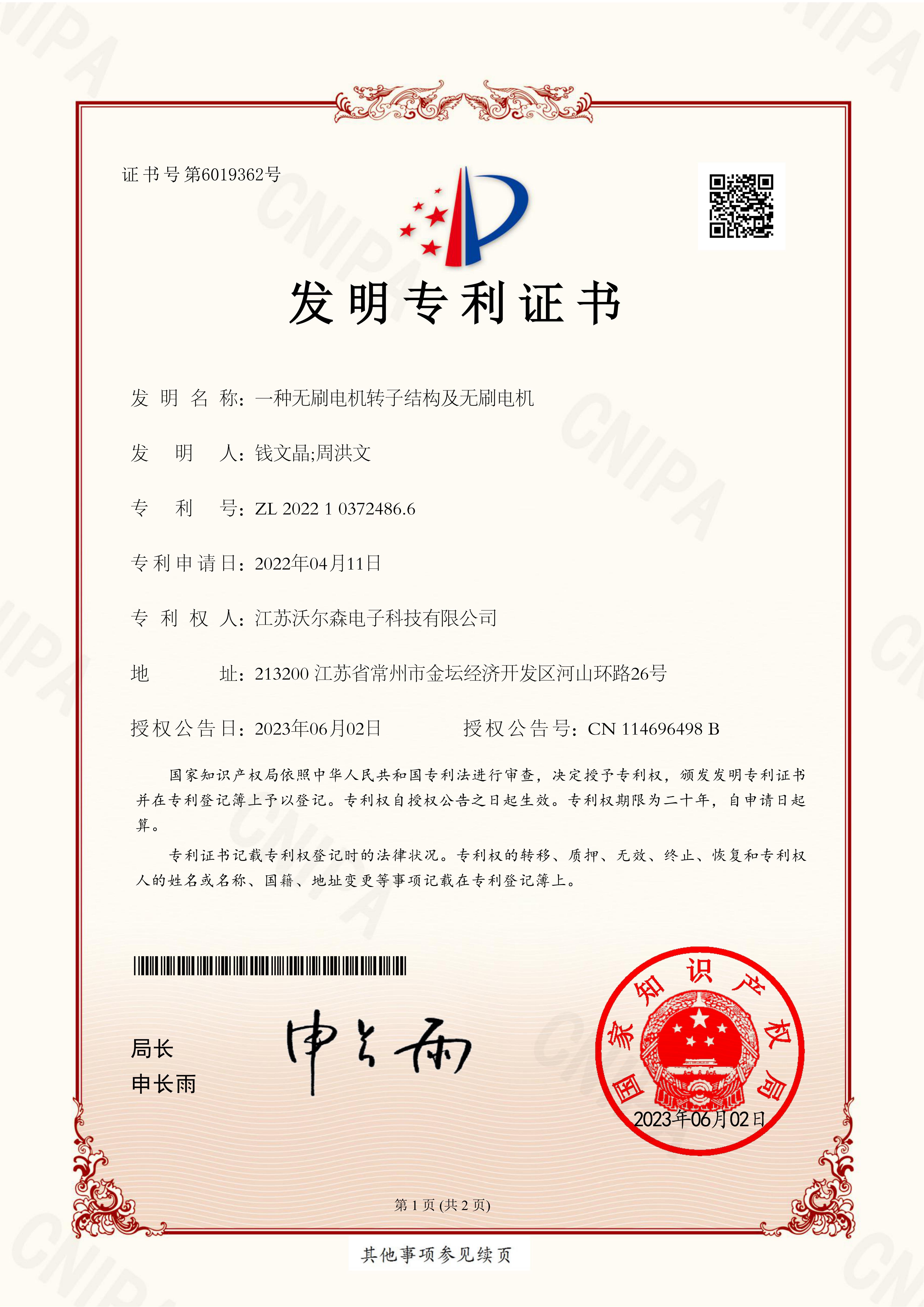

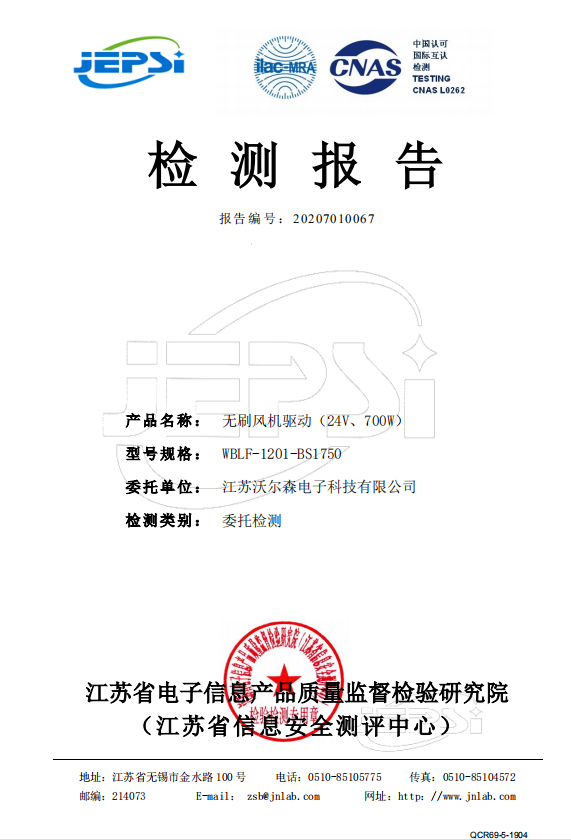

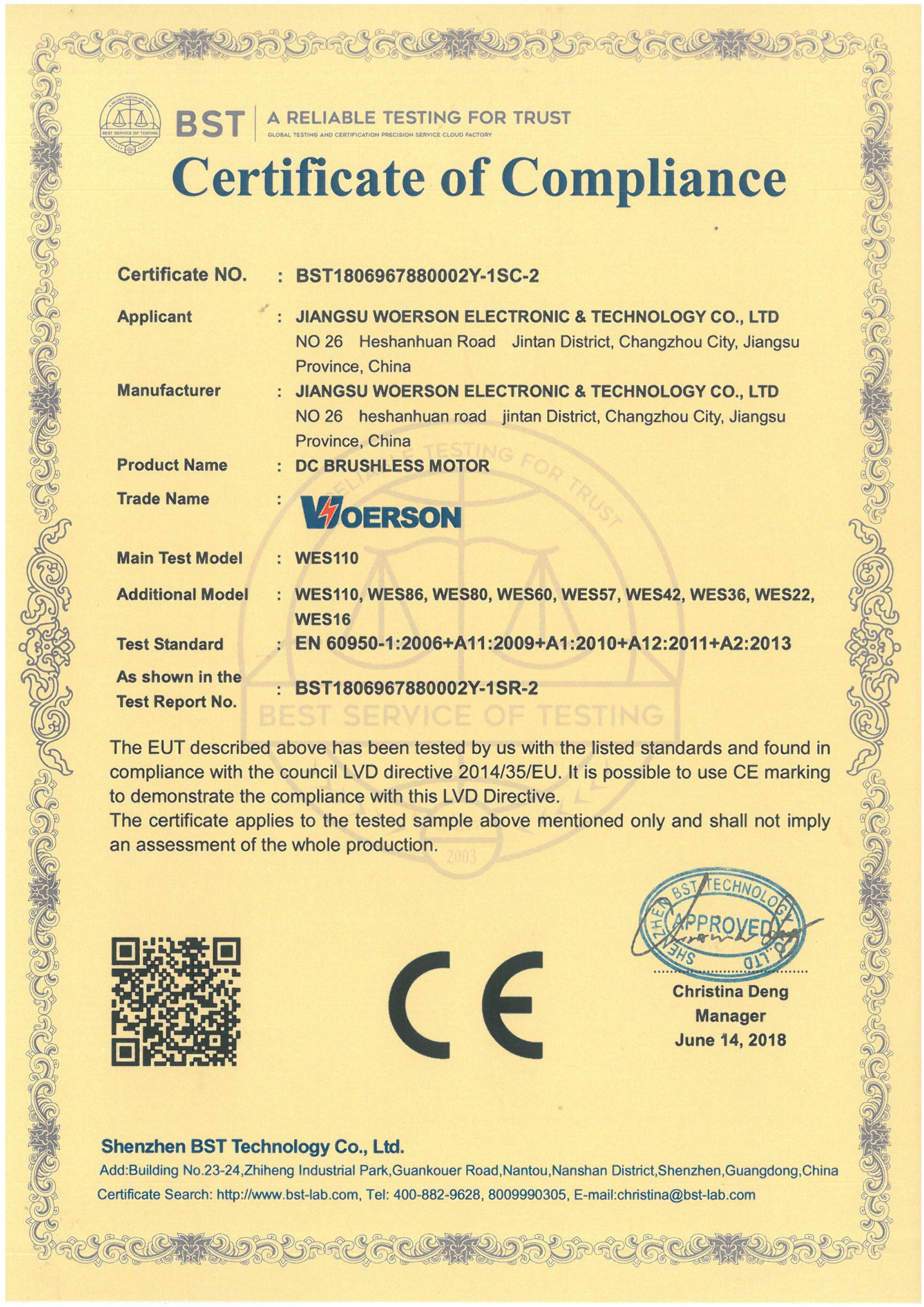

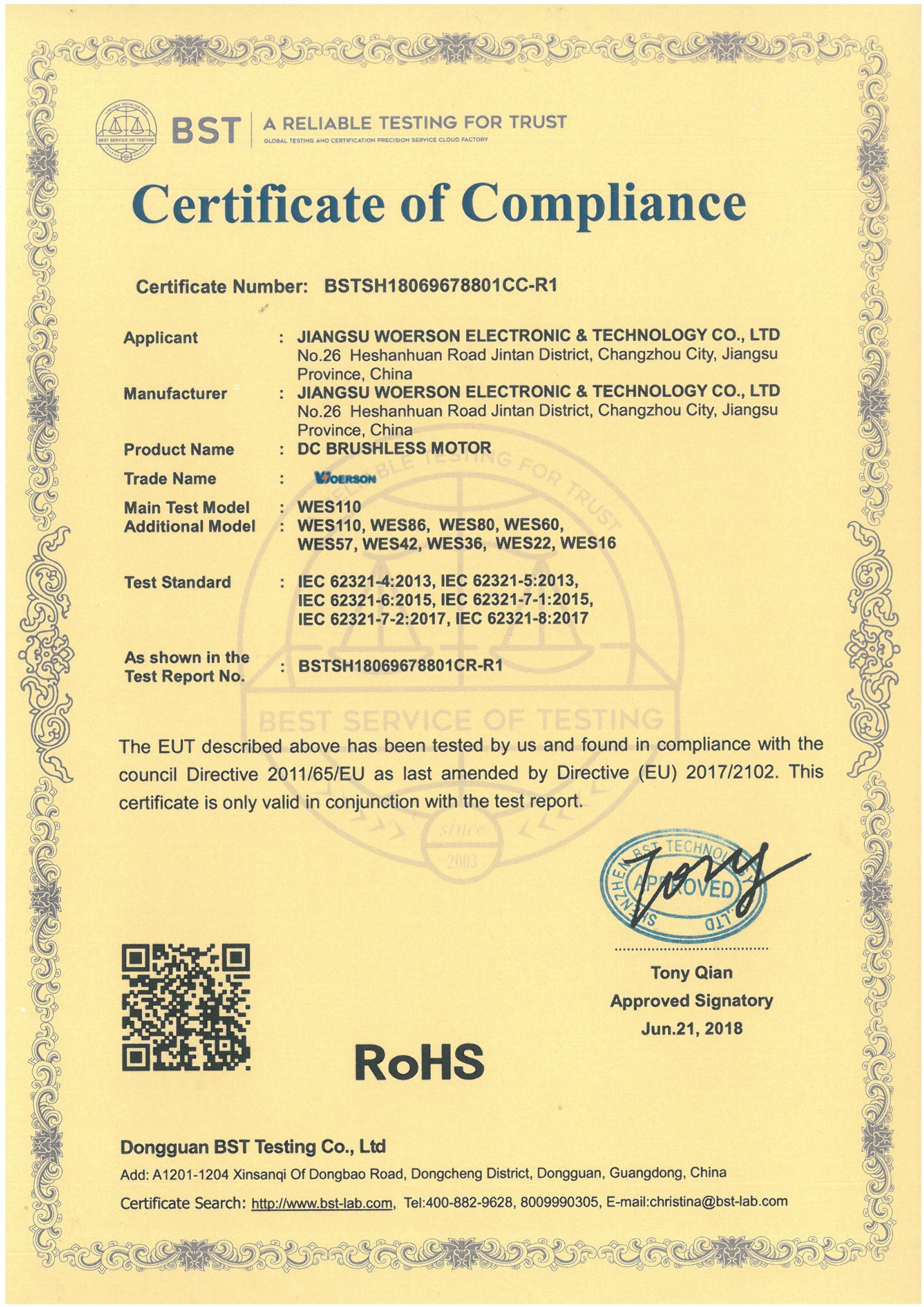

Certifications


1 3576图片3图片1


Exhibition


Brushless Fan Exhibition - Sunlight微信图片_2025-09-11_161603_662QQ图片20220525135048Shipping photops-1 (8)

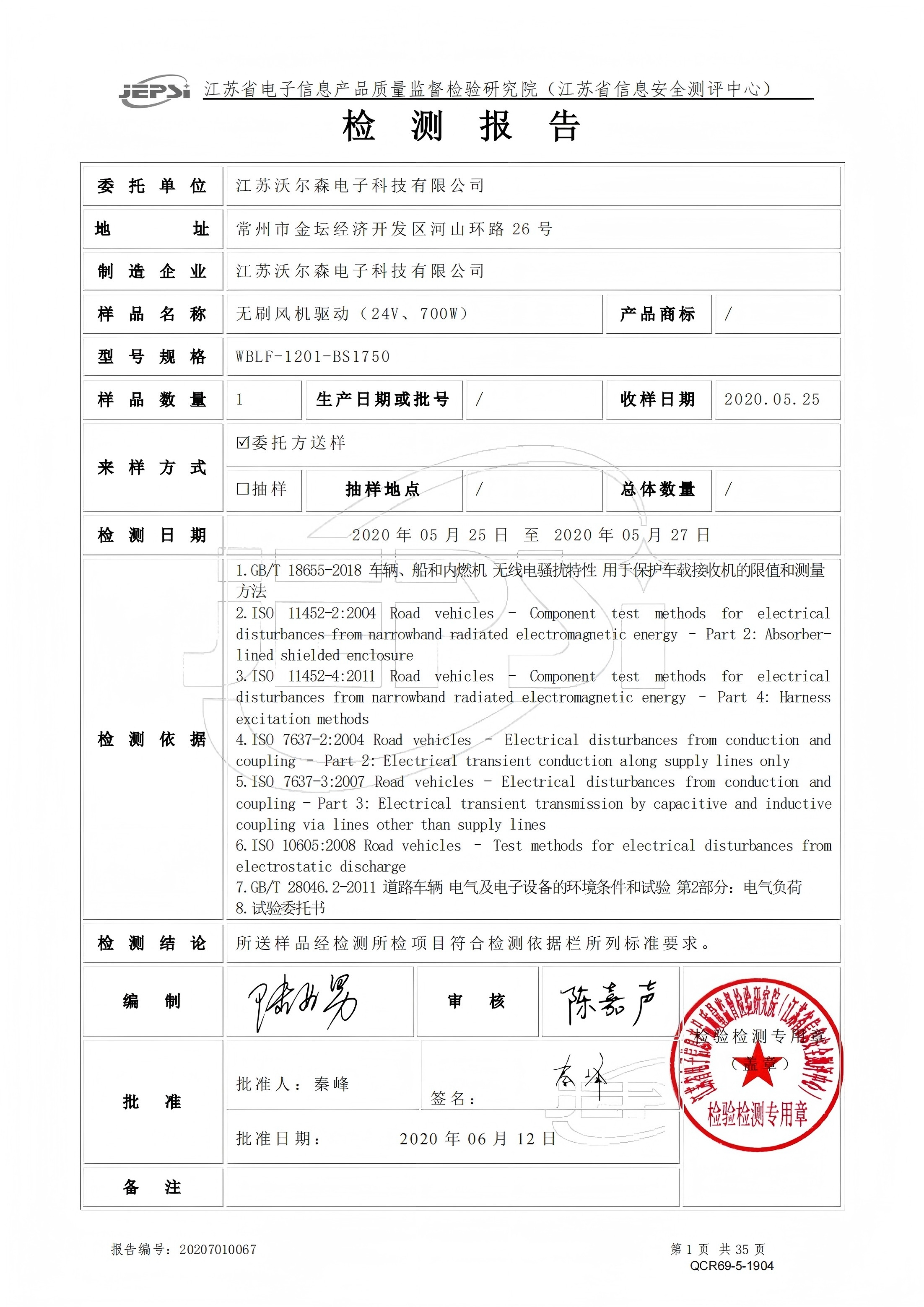

Test Experiment


67891234


Ordering Information

Sample Lead Time: 14days

Mass Production: 21days

MOQ: 2

Customization: Voltage, control mode, wiring, housing treatment available

Contact Us:

Sunny Li: +86-18806140118 / sunny@sunlightmotor.com

Alisa Chen: +86-18806140198 / sales3@czsunlight.com

Frances Zhang: +86-18806140168/ sales1@czsunlight.com

Vicky Li: +86-18806140098/ sunlight@sunlightmotor.com


FAQ


1. Q: What voltage range does the WBLF-1602-AT2200 support, and will reverse polarity damage it?

A: It operates on 9-16VDC (nominal 12V). Its 660VAC insulation resistance provides robust circuit protection—reverse polarity avoids costly driver damage (only pauses operation, minimizing downtime).

2. Q: How do I adjust the WBLF-1602-AT2200’s speed, and what PWM parameters apply?

A: Adjust via  PWM control (100-1000Hz frequency, 20-100% duty cycle). We recommend 500±100Hz for stable, precise tuning to match your heat load.

3. Q: Is the WBLF-1602-AT2200 fit for harsh industrial environments?

A: Yes—with  IP68 waterproof/dustproof rating, it works reliably in -40~+85℃ temperatures and 95% max humidity, ideal for dusty, high-moisture industrial setups.

4. Q: What’s the WBLF-1602-AT2200’s lifespan, and how can I extend it?

A: It has a  ≥25000-hour lifespan. Extend it by keeping inlet/outlet paths clear (maintaining 2900m³/h airflow) and inspecting wiring periodically to avoid overheating.

5. Q: If the WBLF-1602-AT2200 won’t run, how do I quickly troubleshoot?

A: Connect the PWM wire to positive power (red) + 12V: full-speed operation = intact (protection mode); no movement = fault—speeding up after-sales resolution.
