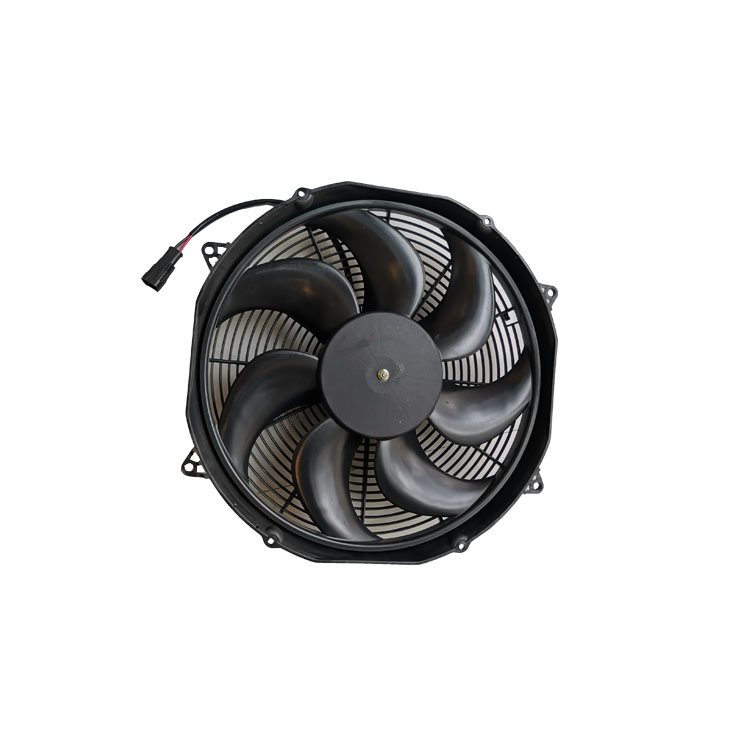

24V 385mm Brushed DC Condenser Fan in Puller

24V 385mm Brushed DC Axial Fan / Condenser Fan, long service life 8000H. Both puller and pusher are options.
Individually packing, fast delivery.
The paraemter can be custommized according to your special requirements.
  • SLT1624X-002

  • Sunlight

  • 24V

  • 12A

Voltage:
Availability:
Quantity:

Features of 24V 16inch Brushed DC Condenser Fan in Puller


Max Fan Speed 2300rpm
Min Fan Speed 1000rpm
Weight 2.8KG
Operating supply voltage rang  24V
Operating working temperature range -40°C - 85°C
Storage temperature range -40°C - 100°C
Life time up to 8000 hours depending on missing profile



The dimension of 24V 16inch Brushed DC Condenser Fan in Puller

16inch puller fan dimension

Performance of 24V 16inch Brushed DC Condenser Fan in Puller


          Static presusure
                     Pa
              Airflow
                m3/h
            Current
                A
3450 12.2
20 3300 12.4
40 3160 12.6
60 3010 12.6
80 2850 12.5
100 2660 12.6
120 2500 12.5
140 2326 12.4
160 2111
12.3
180 1824 12.1
200 1635 12




Airflow of 24V 16inch Brushed DC Condenser Fan in Puller

The grey line is Airflow

SLT1624X-003


Application of 24V 16inch Brushed DC Condenser Fan in Puller

Brushless Axial fans is widely used in various models,such as Ambulance, Loader, Construction machinery, Special vehicle, Manure truck, Corn receiver, Excavator, Snow shovel, Bus, Engineering Vehicle, Forestry Machinery, Refrigeration Truck and so on.


brushless axial fan application - Sunlight Motor


Certifations


TS16949 certificate-for brushless fan - sunlight motorIATF 16949:2016 Certificate

IATF16949 for brushless fan - sunlight motorIATF 16949:2016 Certificate



EMC certificate for brushless fan - sunlight motorEMC Certificate

CE certificate for brushless fan - sunlight motorCE certificate



The experimental project :

无刷风机EMC认证_00


无刷风机EMC认证_01


无刷风机EMC认证_10


无刷风机EMC认证_03


无刷风机EMC认证_12


无刷风机EMC认证_27


无刷风机EMC认证_31


无刷风机EMC认证_32


无刷风机EMC认证_33


无刷风机EMC认证_34



FAQ:

What is DC Brushless Fan?

24V 12inch brushless DC Axial fan uses brush DC motors  that have a cross pattern arrangement of four permanent magnets mounted on the sides of the rotor. Unlike brushed DC motors, BLDC motors do not require any commutator or brushes to operate.

The brushless DC Axial fan is a combination of a powerful BLDC motor, shaft, and fan blades. These fans are durable, reliable, and highly energy efficient. They do not produce sparks in the circuit and operate noiselessly.

The initial torque produced in DC motors is quite high, and hence, brushless DC Axial fans reach their full potential in no time. Their speed can be controlled merely by increasing or decreasing the voltage input.


DC Brushless Axial fan Behaviour

To understand the cooling behavior of 12inch brushless DC fan, you first need to understand the working of its components. However, you can understand the general behavior of the fan by closely following the voltage drops and rises in the power supply. DC Brushless Axial fans have three voltage variants: 12V, 24V .

Let us try to understand this through a simple example. If a brushless DC brushless Axial fan operates on 12 volts of voltage, then the fan would have an RPM (revolutions per minute) of around 2500. Suppose the voltage now drops to 9 volts, then the RPM of the fan would be reduced to about 1300. Such factors are taken into serious consideration during the testing and R&D of the product to minimize this possibility, that is decreased RPM with less voltage. An efficient DC brushless  Axial fan is quite stable and works well even during power fluctuations.



DC Brushless Axial Fan Types

In an environment where air flow is not easily generated naturally, air movement by external force is needed for cooling propose. Nowadays, the air movement is commonly generated by cooling fans which can be differ widely by shapes, sizes, functions etc.. Therefore, Cooling fans have typically classified into 4 categories which include Axial Fans, Centrifugal Fans, Centrifugal blowers, Cross Flow Fans.


Fan Accessories

Sunlight Brushless Axial fans are the result of more than 10 years engineering experience. Sunlight uses advanced modeling software and computer-assisted simulation systems to develop electric motors and blades that optimize a fan’s ability to pull air cleanly through the radiator core.

While many cooling fans are pieced together from many different vendors, Sunlight controls all aspects of its engineering and manufacturing processes from the design and tooling of injection molds to the winding of each electric motor at its ISO 9001 and TS16949-certified facilities.


Notes:

1.Q:What's your minimum order quantity?
A:One piece is ok .

2.Q:How do you ship samples?
A:Considering sample quantity is not big, we support ship samples by DHL,UPS,TNT or Fedex , fast and less damages.

3.Q:Could I use my own forwarder?
A:Yes

4.Q:I am new to international business,could you find an experienced forwarder to organize shipment for us?
A:Yes, we will assist and guild you to work out the shipping and import process.

5.Q:What's your delivery time?
A:For samples: within 7days; For bulk: within 25days.
