DC 225mm 9inch 12V Brushless Axial Fan, Cooling for Bus, Truck - WBLF-901-AS1170

DC 9inch 225mm Brushless Axial Fan / Condenser Fan, 12V, 4100rpm MAX, IP68, long life 250000H.
Cheap price with high quality.
Individually packing , fast delivery.
we can be custommized according to customer requirements ,specially designed to meet new generation cooling systems requirements in every industry.
  • WBLF-901-AS1170

  • Sunlight

  • 1275m³/h

  • 25000H

  • IP68

  • Cooling for Bus, Truck, Construction machinery, Forestry Machinery

  • PWM

  • Brushless

  • 225mm

  • 12V

  • 11A

  • 170W

Voltage:
Availability:
Quantity:

Specification of DC 9inch 225mm 12V Brushless Axial Fan WBLF-901-AS1170

1,The motor black wire connect the positive,Brown wire connect the negative . clockwise rotation
2,Axial clearance: 0.25mm Max;
3,Pressure test,:660VAC 1S 5mA;
4,Protection:IP68
5,Insulation class:H
6,Insulation resistance:20MΩMIN(500VDC)
7,Operaing temperture:-40-85℃
8,Humidity:0-100°
9,Operaing life:25000 hours Min
10,Vibration :20ms 5G
11,Rated voltage:12VDC Voltage Range:9-32VDC
12,30A Insurance in controller
13,Lead length:500±20mm,A blace∅8 PVCtube length 450
14,Power line model:UL1015 12AWG
15,Weight Approx:3Kg

Features DC 9inch 225mm 12V Brushless Axial Fan WBLF-901-AS1170


Max Fan Speed 4100rpm
Min Fan Speed 1250rpm
Weight 1.5KG
Operating supply voltage rang  9V -16V
Operating working temperature range -40°C - 85°C
Storage temperature range -40°C - 120°C
Life time up to 40000 hours depending on missing profile
Time from 0 rpm to max speed 8 seconds
IP grade IP68

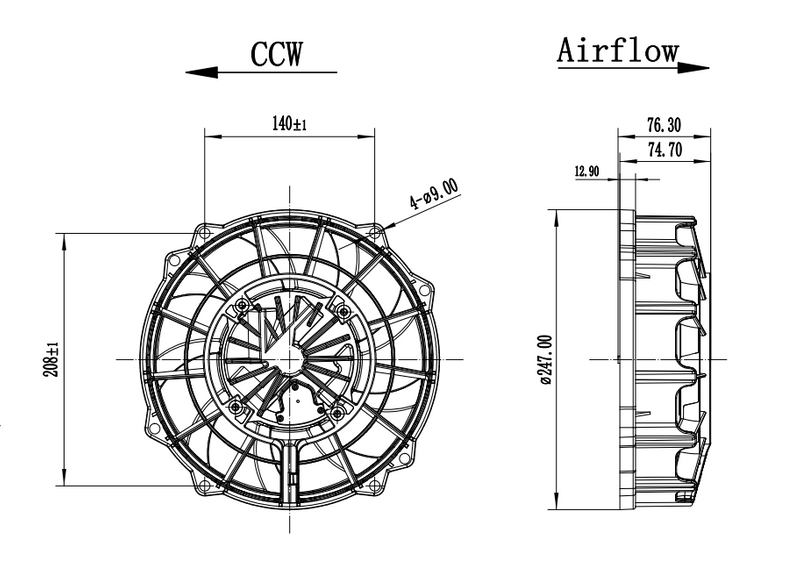

The drawing of Dimension(mm) of DC 9inch 225mm 12V Brushless Axial Fan WBLF-901-AS1170

9inch 12V Brushless Axial Fan-1

备注:风量为实验室测试结果,环境温度20±5°C,测试压力0 pa

Note: Air flow is tested under 0 pa & 20 ± 5 °C

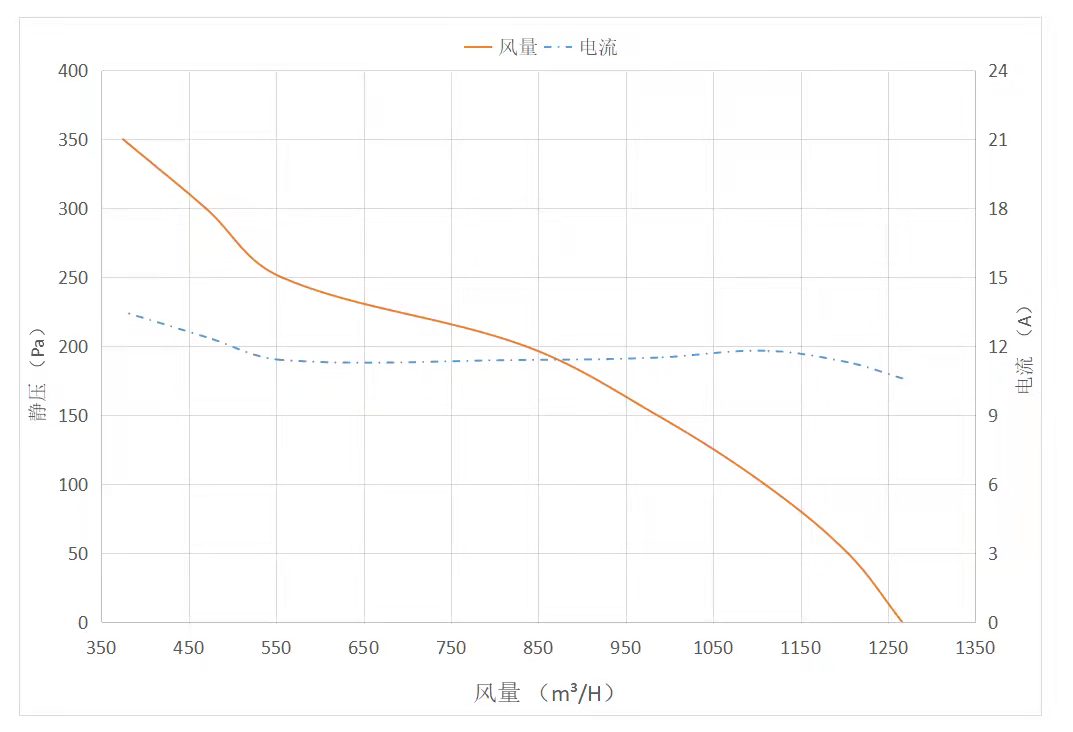

Airflow of DC 9inch 225mm 12V Brushless Axial Fan WBLF-901-AS1170

WBLF-AS1179(9寸 12V 风量曲线


PWM control diagram of DC 9inch 225mm 12V Brushless Axial Fan WBLF-901-AS1170

PWM control

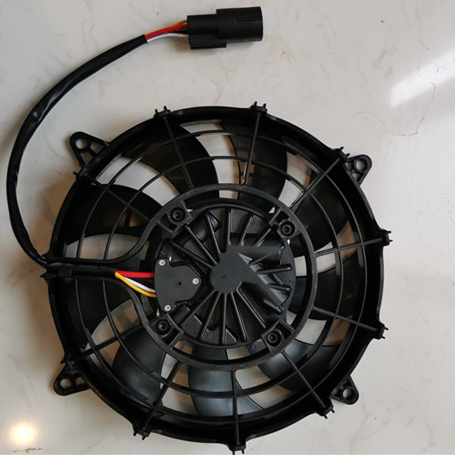

Product Picture of DC 9inch 225mm 12V Brushless Axial Fan WBLF-901-AS1170


10inch 335


Application

Brushless Axial fans is widely used in various models,such as Ambulance, Loader, Construction machinery, Special vehicle, Manure truck, Corn receiver, Excavator, Snow shovel, Bus, Engineering Vehicle, Forestry Machinery, Refrigeration Truck and so on.
