SLTBLDC-WP2418P
Sunlight
| Quantity: | |
|---|---|
Product Parameters
| Rated Voltage | 24 V DC |
| Operating Voltage | 16～32 V DC |
| IP Rating | IP68 |
| Operating Ambient Temperature | -40～+85 °C |
| Applicable Medium | Antifreeze Fluid |
| Rated Current | 10 A |
| Noise Level | 52 dB(A) |
| Pump Rated Parameters | Q=2900 L/h, H=17 m |
| Rated Power | 240 W |
| Operating Life | ≥ 20000 h |
| Weight | 2.1 kg ±5% (including mounting bracket) |
Specification
Advantages

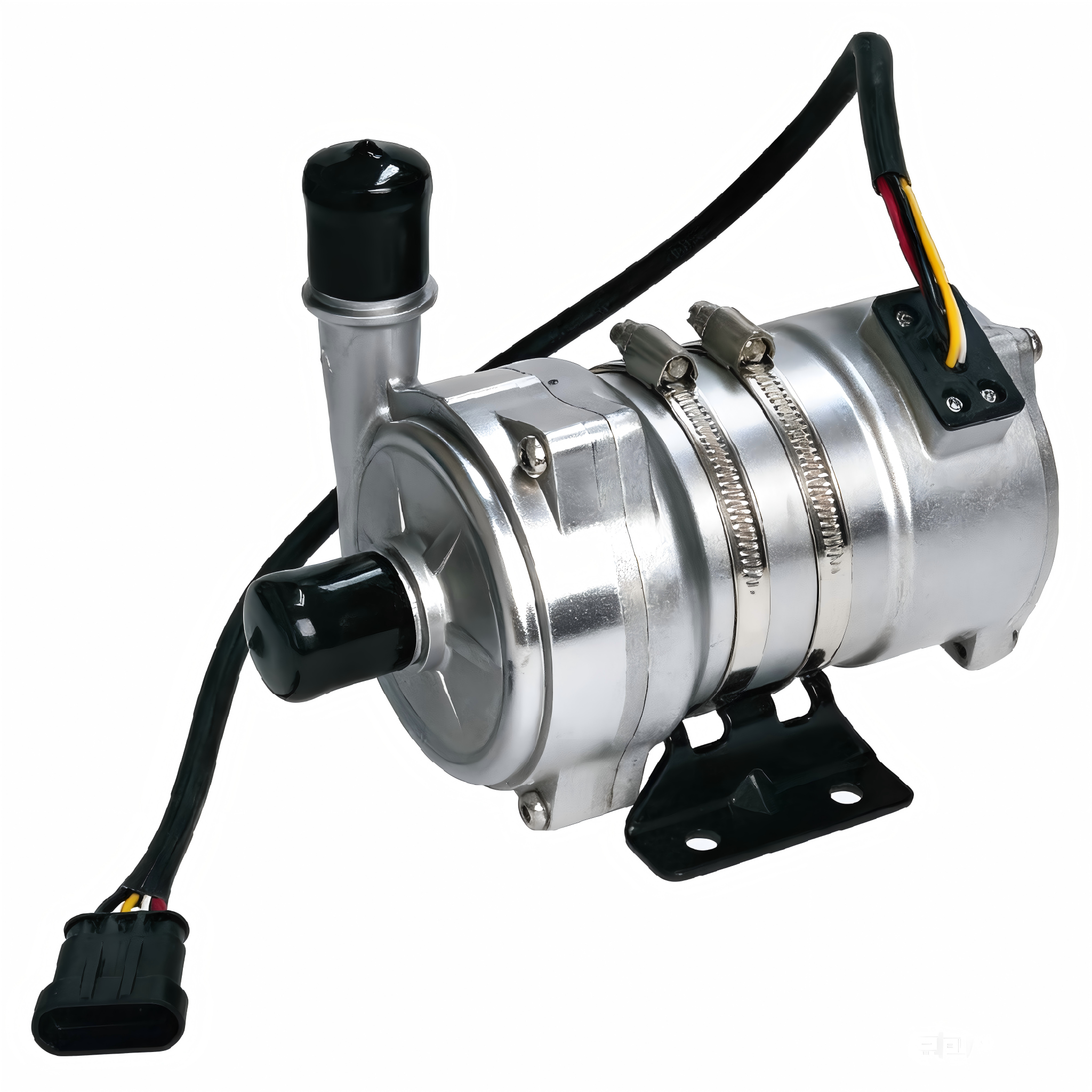

The Sunlight 24V DC water pump delivers high flow and long-term reliability for demanding cooling systems. Operating at 16–32 V DC, it provides stable performance with 2900 L/h flow and 17 m head for efficient antifreeze circulation.
Built with an IP68-rated housing, it performs reliably in harsh environments from -40 to +85 °C. With 240 W rated power, low noise at 52 dB(A), and a service life ≥ 20,000 hours, it ensures durable, quiet operation. Compact at 2.1 kg, it offers easy installation and proven efficiency for EV, energy storage, and industrial thermal management.
Sunlight electric water pumps are designed for reliable liquid circulation in closed-loop cooling systems using antifreeze fluids. They are widely applied in electric and hybrid vehicles to support battery packs, motors, and power electronics with stable and efficient thermal control.
Built for harsh environments, Sunlight pumps are also used in energy storage systems, charging infrastructure, and outdoor industrial equipment, where long operating life, environmental resistance, and low noise are critical. Their compact design and quiet operation make them suitable for modern systems that demand both performance and durability.
Secure Installation: Mount the pump on a stable surface and fasten it properly to minimize vibration and ensure consistent operation.
Correct Flow Direction: Always check the inlet and outlet connections to maintain proper liquid circulation and system efficiency.
Clean System: Ensure the piping and cooling loop are free of debris or contaminants to prevent blockages and reduce wear.
Use Appropriate Fluids: Operate with recommended antifreeze fluids; avoid running the pump dry or leaving it idle for long periods.
Regular Inspection: For outdoor or continuous applications, periodically check connections, mounting, and system integrity to maintain reliability and reduce maintenance.
Temperature & Environment Awareness: Ensure the pump operates within suitable temperature ranges and environmental conditions to maximize service life.
Since 1990, Sunlight has specialized in manufacturing high-performance brushless fans and blowers. Certified with ISO9001 and IATF16949, our products meet CE, RoHS, and EMC standards. Widely applied in automotive, machinery, refrigeration and energy industries. Sunlight is committed to delivering quality, innovation, and reliable cooling solutions.
All fans undergo 100% testing before shipment, with customization and technical support available.
Ordering Information
Sample Lead Time: 14days
Mass Production: 21days
MOQ: 2
Customization: Voltage, control mode, wiring, housing treatment available
Contact Us:
Sunny Li: +86-18806140118 / sunny@sunlightmotor.com
Alisa Chen: +86-18806140198 / sales3@czsunlight.com
Frances Zhang: +86-18806140168/ sales1@czsunlight.com
Vicky Li: +86-18806140098/ sunlight@sunlightmotor.com
FAQ
1. What applications is the Sunlight water pump suitable for?
It is ideal for electric and hybrid vehicles, energy storage systems, and industrial cooling, providing reliable thermal management in harsh environments.
2. How do I ensure long-lasting operation?
Install the pump securely, maintain a clean cooling loop, use recommended antifreeze fluid, and avoid dry running or prolonged idle periods.
3. Can the pump handle extreme temperatures and outdoor conditions?
Yes, it is designed for demanding environments, delivering stable performance in high or low temperatures and resistant to dust and water exposure.
4. How noisy is the pump during operation?
The pump operates quietly, minimizing disruption in vehicles and industrial systems while maintaining efficient liquid circulation.
5. Is the pump easy to install and maintain?
Its compact, lightweight design allows flexible installation. Regular checks of mounting and connections help ensure long-term reliability and low maintenance.
