24V 350W 350mm DC Brushless Blower

Features of 24V 350mm DC Brushless Blower

Max Fan Speed	3500rpm
Min Fan Speed	1000rpm
Weight	2.4KG
Operating supply voltage rang	24V
Operating working temperature range	-40°C - 85°C
Storage temperature range	-40°C - 100°C
Life time	up to 40000 hours depending on missing profile

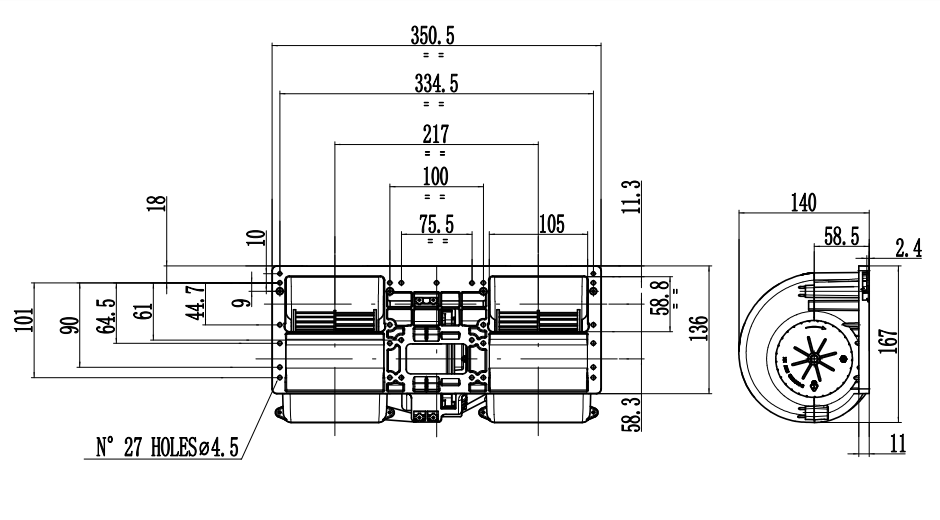

The drawing of 24V 350mm DC Brushless Blower

Performance of 24V 350mm DC Brushless Blower

Application of 24V 350mm DC Brushless Blower

24V 350mm DC Brushless Blower is widely used in various models，such as Ambulance, Loader, Construction machinery, Special vehicle, Manure truck, Corn receiver, Excavator, Snow shovel, Bus, Engineering Vehicle, Forestry Machinery, Refrigeration Truck and so on.

Certifations

EMC Certificate

CE certificate

The experimental project :

Name1

Name2

Name3

Name4

Name5

Name1

Name2

Name3

Name4

Name5

FAQ:

What is DC Brushless Fan?

24V 12inch brushless DC Axial fan uses brush DC motors  that have a cross pattern arrangement of four permanent magnets mounted on the sides of the rotor. Unlike brushed DC motors, BLDC motors do not require any commutator or brushes to operate.

The brushless DC Axial fan is a combination of a powerful BLDC motor, shaft, and fan blades. These fans are durable, reliable, and highly energy efficient. They do not produce sparks in the circuit and operate noiselessly.

The initial torque produced in DC motors is quite high, and hence, brushless DC Axial fans reach their full potential in no time. Their speed can be controlled merely by increasing or decreasing the voltage input.

DC Brushless Axial fan Behaviour

To understand the cooling behavior of 12inch brushless DC fan, you first need to understand the working of its components. However, you can understand the general behavior of the fan by closely following the voltage drops and rises in the power supply. DC Brushless Axial fans have three voltage variants: 12V, 24V .

Let us try to understand this through a simple example. If a brushless DC brushless Axial fan operates on 12 volts of voltage, then the fan would have an RPM (revolutions per minute) of around 2500. Suppose the voltage now drops to 9 volts, then the RPM of the fan would be reduced to about 1300. Such factors are taken into serious consideration during the testing and R&D of the product to minimize this possibility, that is decreased RPM with less voltage. An efficient DC brushless  Axial fan is quite stable and works well even during power fluctuations.

DC Brushless Axial Fan Types

In an environment where air flow is not easily generated naturally, air movement by external force is needed for cooling propose. Nowadays, the air movement is commonly generated by cooling fans which can be differ widely by shapes, sizes, functions etc.. Therefore, Cooling fans have typically classified into 4 categories which include Axial Fans, Centrifugal Fans, Centrifugal blowers, Cross Flow Fans.

Fan Accessories

Sunlight Brushless Axial fans are the result of more than 10 years engineering experience. Sunlight uses advanced modeling software and computer-assisted simulation systems to develop electric motors and blades that optimize a fan’s ability to pull air cleanly through the radiator core.

While many cooling fans are pieced together from many different vendors, Sunlight controls all aspects of its engineering and manufacturing processes from the design and tooling of injection molds to the winding of each electric motor at its ISO 9001 and TS16949-certified facilities.

Notes:

1.Q:What's your minimum order quantity?
A:One piece is ok .

2.Q:How do you ship samples?
A:Considering sample quantity is not big, we support ship samples by DHL,UPS,TNT or Fedex , fast and less damages.

3.Q:Could I use my own forwarder?
A:Yes

4.Q:I am new to international business,could you find an experienced forwarder to organize shipment for us?
A:Yes, we will assist and guild you to work out the shipping and import process.

5.Q:What's your delivery time?
A:For samples: within 7days; For bulk: within 25days.
