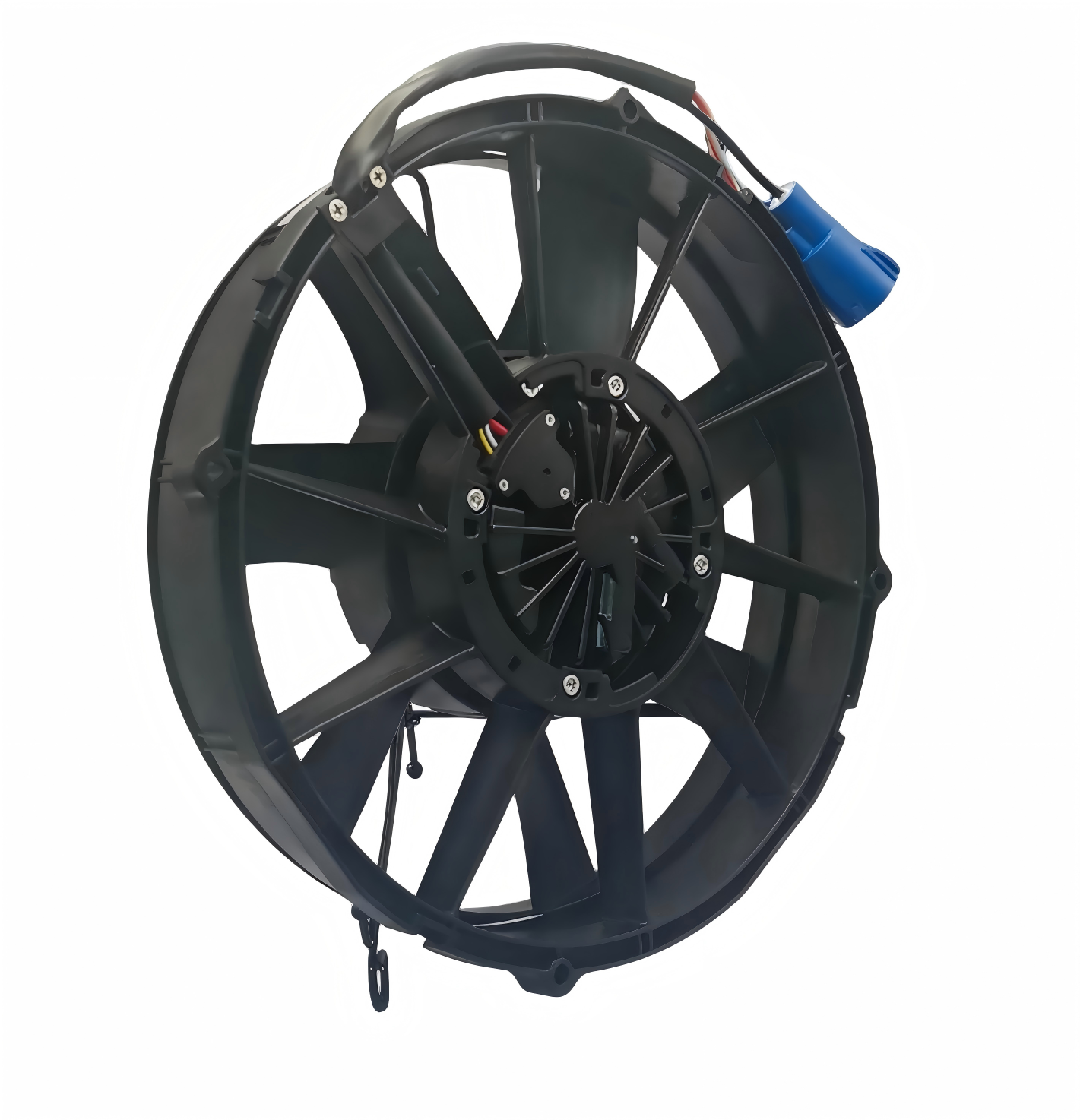

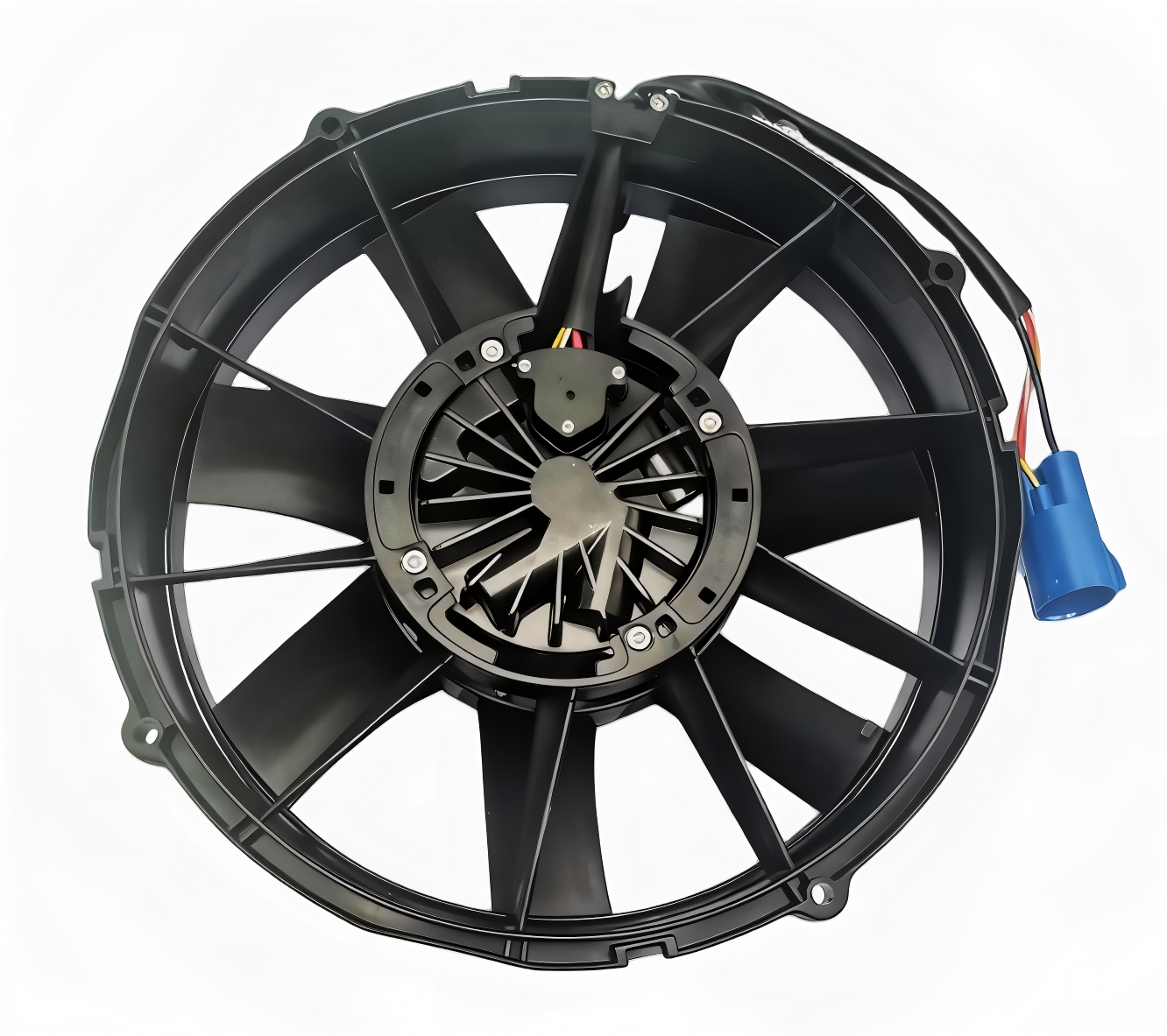

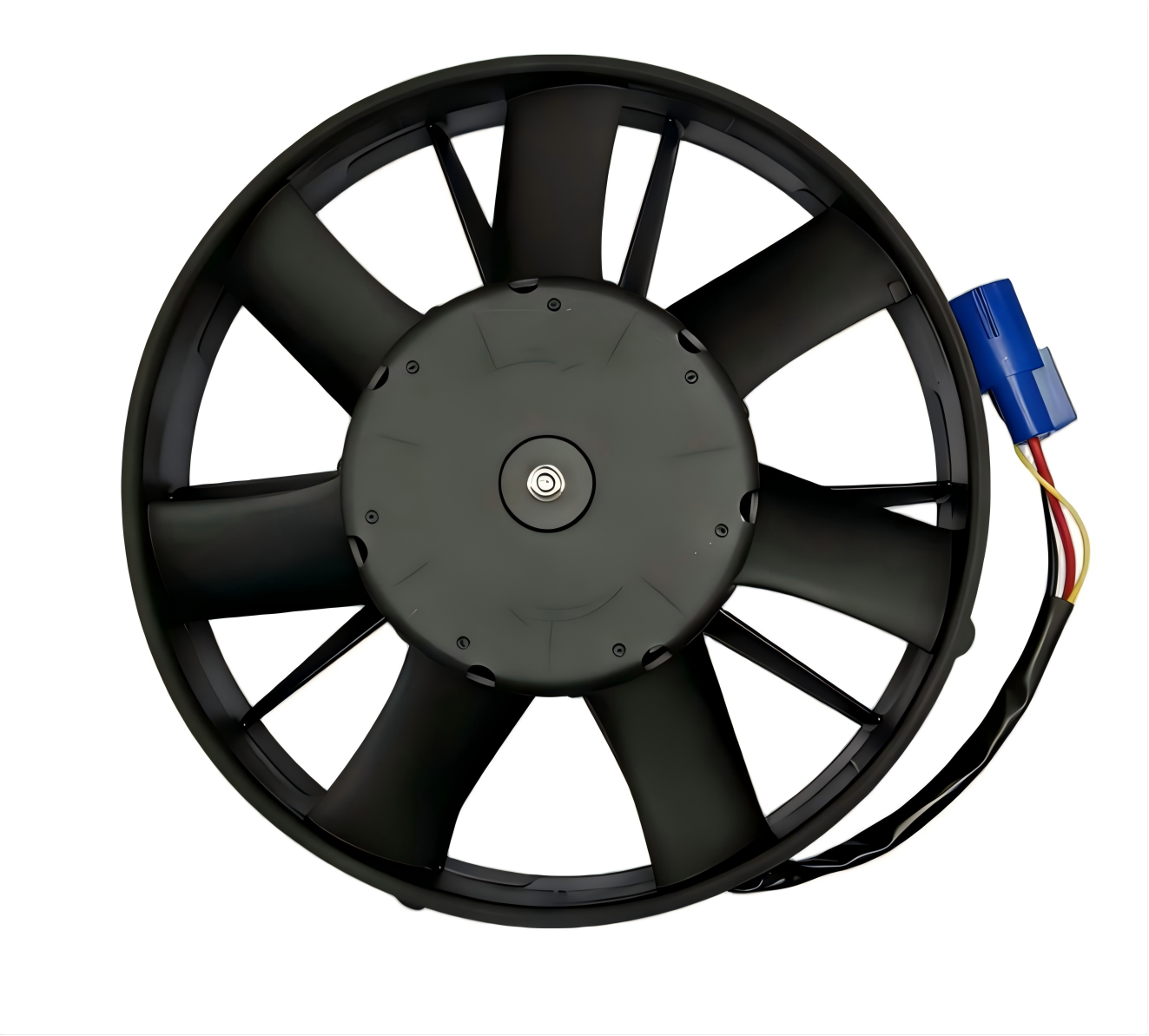

WBLF-1251-AS2350
SUNLIGHT (SLT)
| Quantity: | |
|---|---|
Max fan speed | rpm | 3300 |
| Min fan speed | rpm | 1000 |
| Sound pressure level | dBA | 78 - at 1 m from the fan module - lateral side |
| Weight | kg | 2.5 |
| Operating supply voltage range | V | 9 - 16 at the Drive connector |
| Supply voltage to reach max speed | V | 13 - 16 at the Drive connector |
| Operating ambient temperature range | °C | -40 - +85 |
| Speed derating threshold | °C | +85 |
| Storage temperature range | °C | -40 - +110 |
| Lifetime | h | up to 40000 hours depending on mission profile |
| Time from 0 rpm to max speed | s | 3~5s |
| Load dump protection ( Pulse 5b ) | V | 35 - Pulse peak voltage (Us*) - ISO16750 - 2:2010 |
| Reverse polarity protection | yes |
Proprietary Design – Custom-designed aerodynamic blades and intelligent driver system.
Strong Cooling Output – 350W high power ensures performance under heavy thermal loads.
Low Noise & Stability – Optimized airflow design reduces wind noise and vibration.
Durability in Harsh Conditions – IP68 and ISO 16750 compliance for rugged environments.
Flexible Speed Control – Supports PWM, analog (0–5V/0–10V), or CAN bus control.

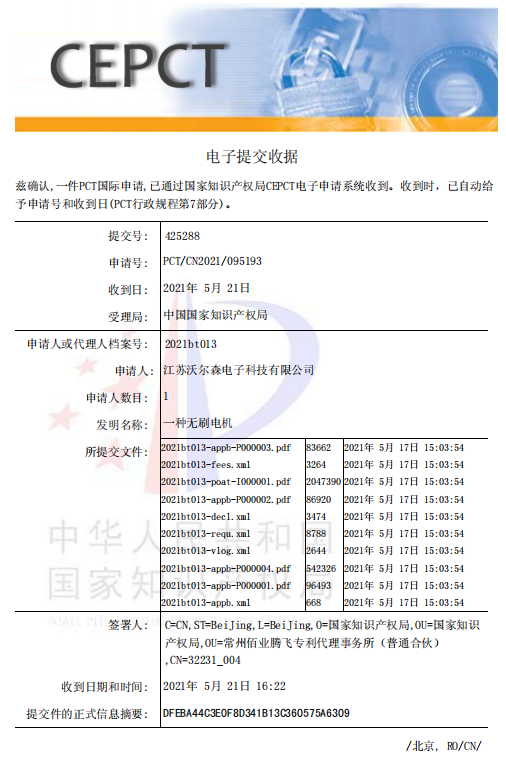

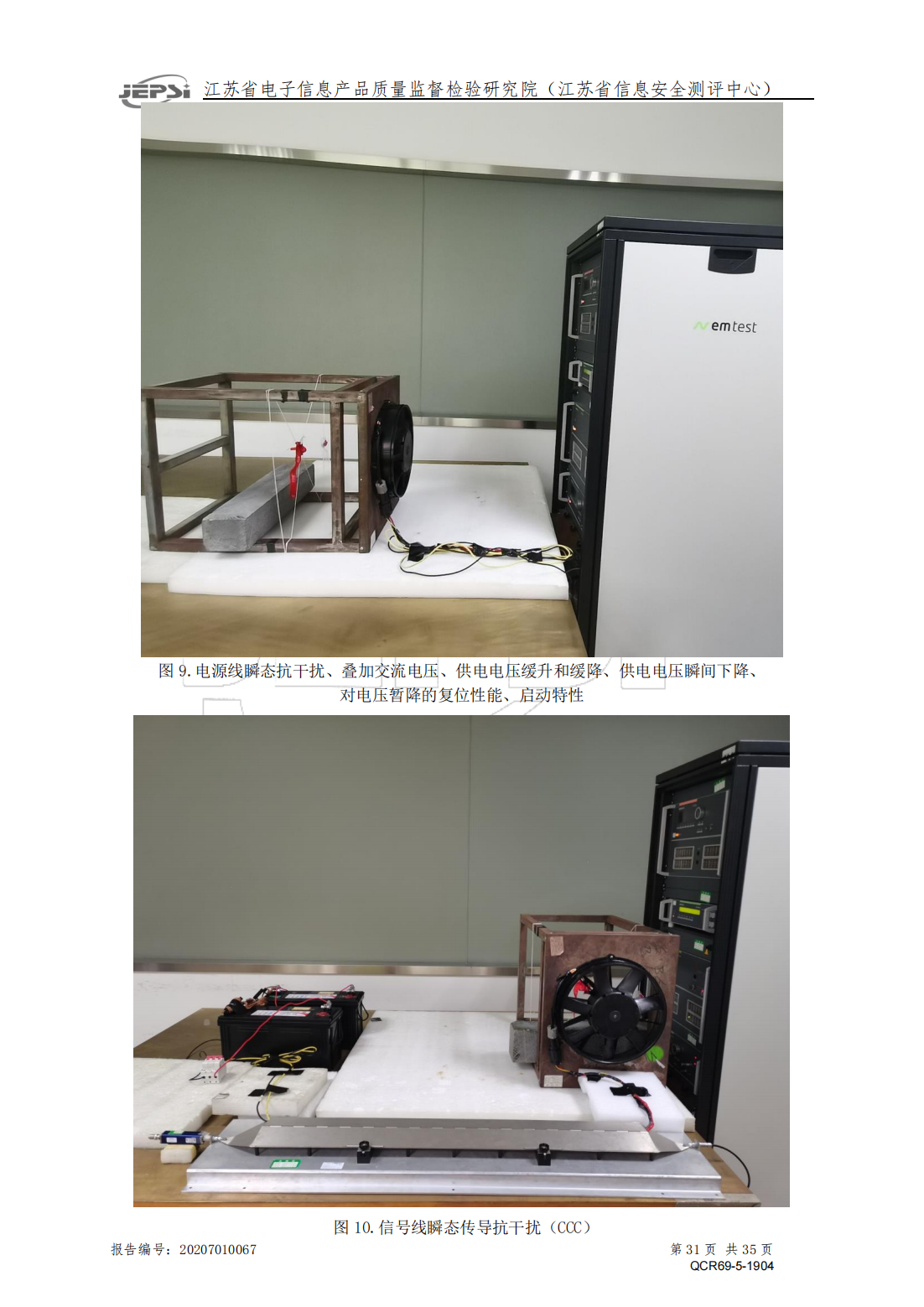

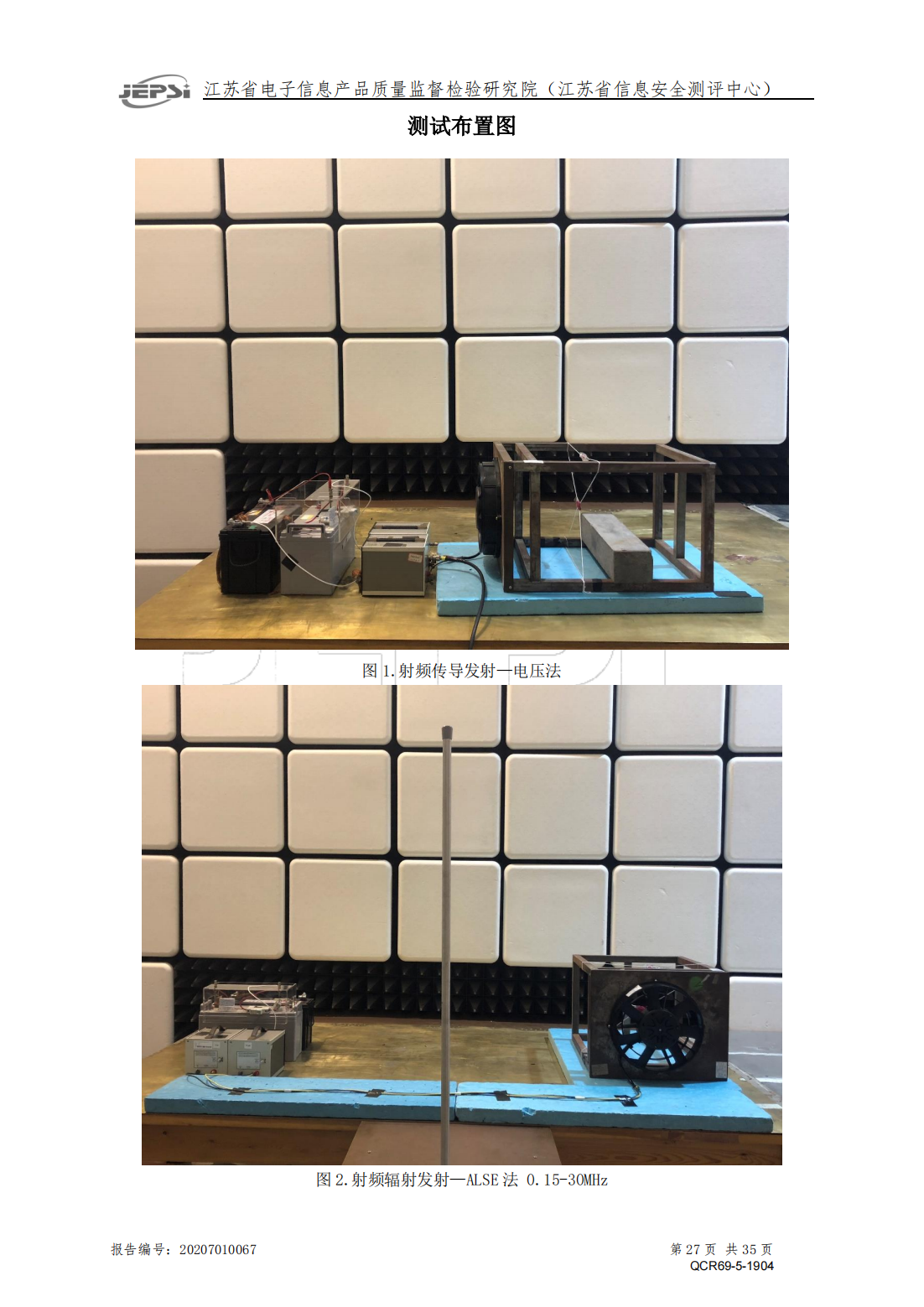

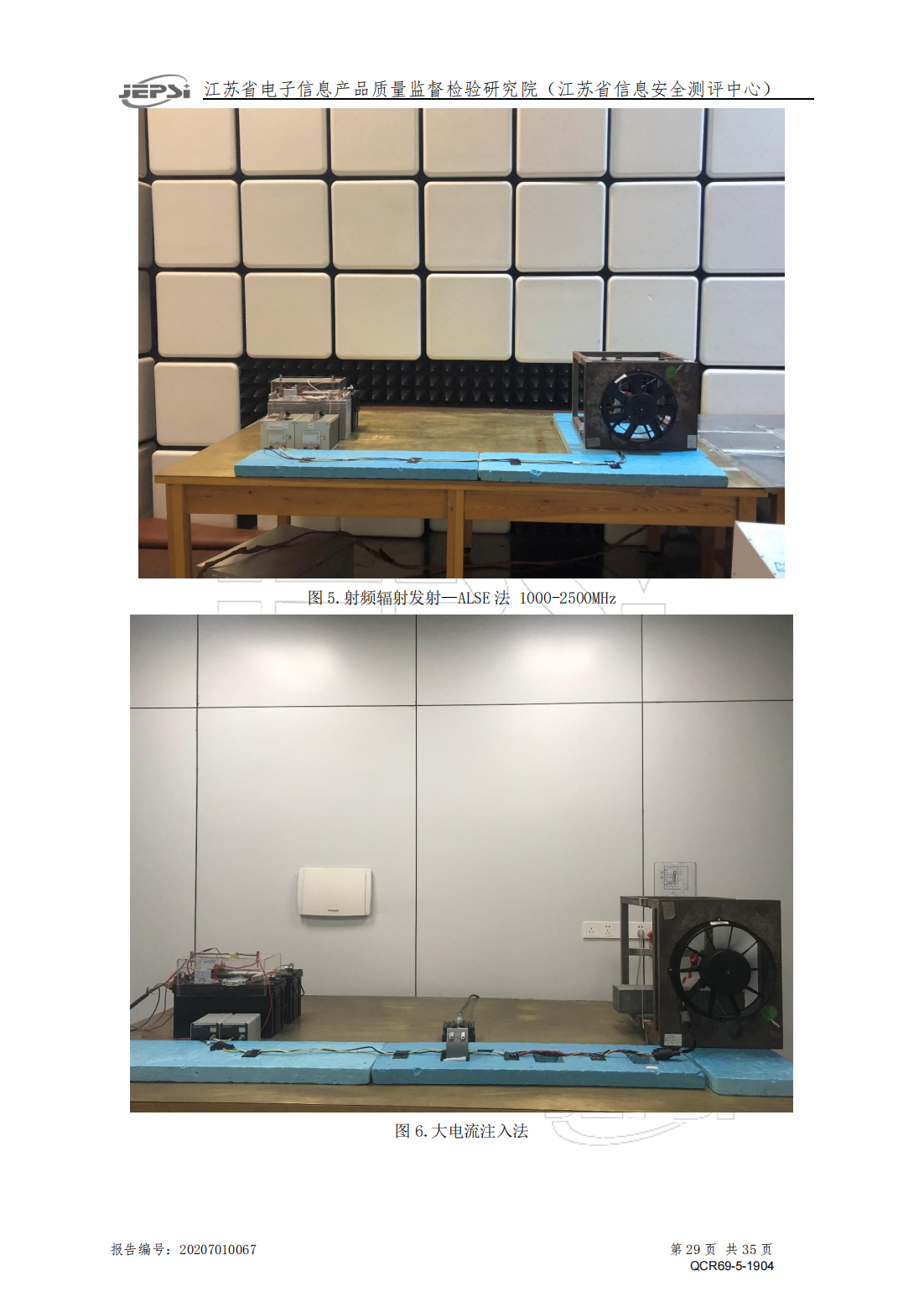

Certified Reliability – EMC compliant and backed by patents for performance assurance.
Construction machinery (excavators, loaders, tractors)
Bus, coach & commercial vehicle HVAC systems
Electric vehicles (battery, motor, and controller cooling)
Generator sets & industrial power equipment
Cold-chain trucks & refrigeration units
EV charging stations & telecom base stations
Defense, military & special-purpose vehicles

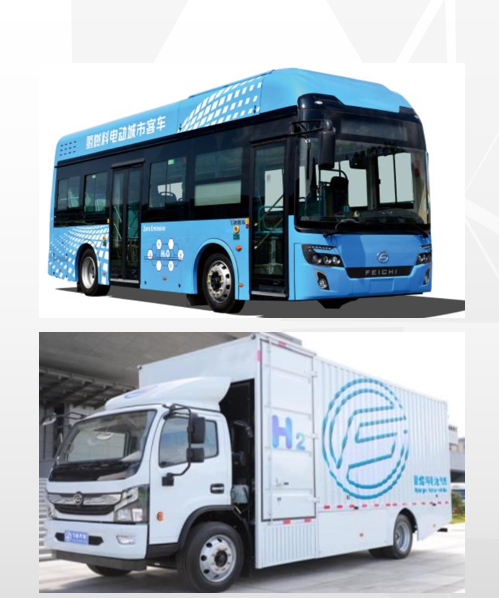

New nergy vehicle
Hydrogen fuel vehicles heat dissiation system

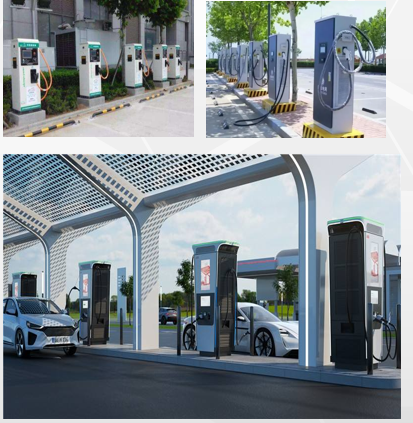

New energy charging pile heat dissipation system

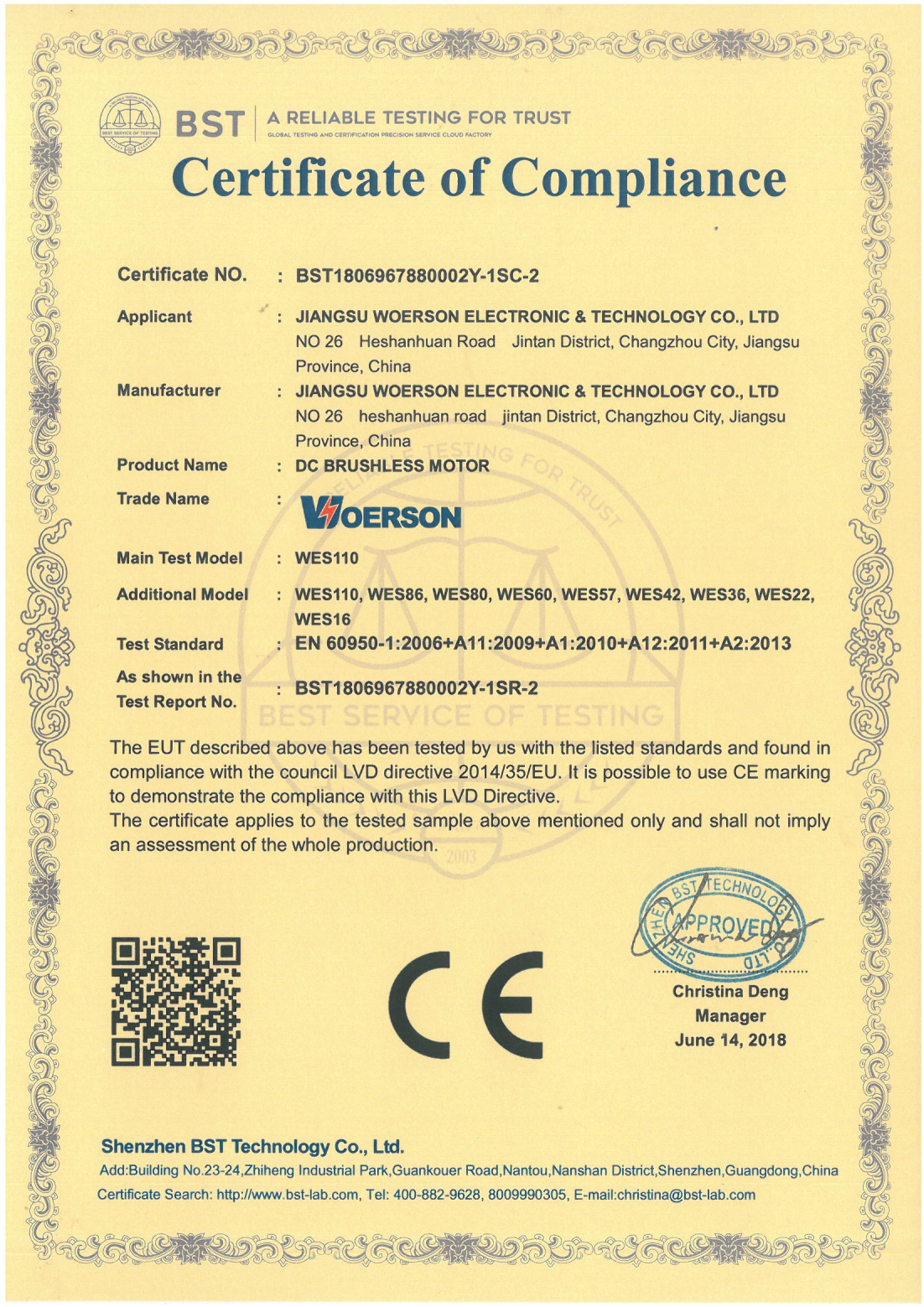

Since 1990, Sunlight has specialized in manufacturing high-performance brushless fans and blowers. Certified with ISO9001 and IATF16949, our products meet CE, RoHS, and EMC standards. Widely applied in automotive, machinery, refrigeration and energy industries. Sunlight is committed to delivering quality, innovation, and reliable cooling solutions.

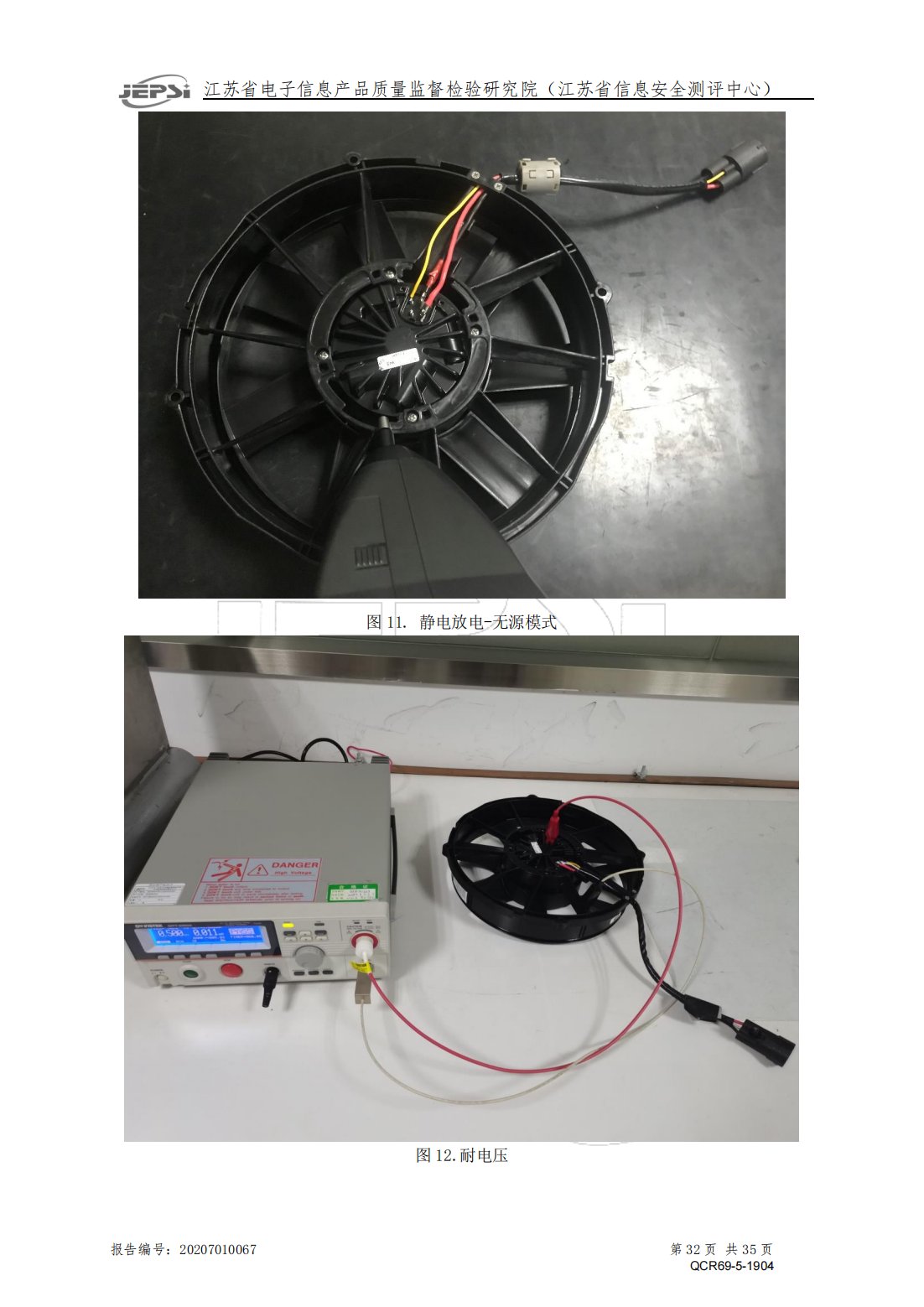

All fans undergo 100% testing before shipment, with customization and technical support available.
delivery dc fans
delivery to European
delivery brushless fans
Exhibition show romm
BMW exhibition hall
Name4
Sample Lead Time: 14 days
Mass Production Lead Time: 21 days (depending on order)
MOQ: 2
Customization Available: Voltage, connectors, control modes, housing treatment
Contact Us:
Sunny Li: +86-18806140118 / sunny@sunlightmotor.com
Alisa Chen: +86-18806140198 / sales3@czsunlight.com
Q1: Why choose a brushless DC axial fan?
A: Brushless fans are more efficient, quieter, longer-lasting, and maintenance-free compared to brushed fans.
Q2: What is the maximum airflow of this fan?

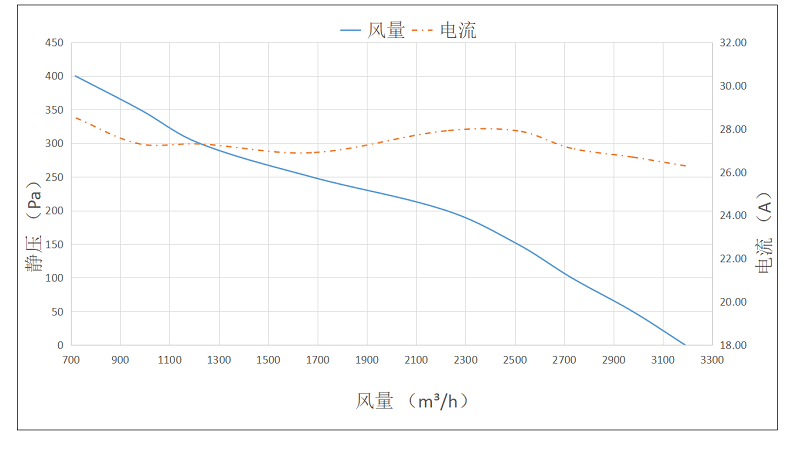

A: Airflow depends on system resistance. Please check performance curves or consult our engineers.
Q3: Can I customize the control method?
A: Yes. Options include PWM, analog voltage (0–5V / 0–10V), and CAN bus control.
Q4: Do you provide samples for testing?
A: Yes, we support sample orders for performance verification.
Q5: What is the MOQ (minimum order quantity)?
A: 2
Q6: What is the lead time?
A: Samples within 14 days; mass production usually 21 days depending on order volume and customization.
