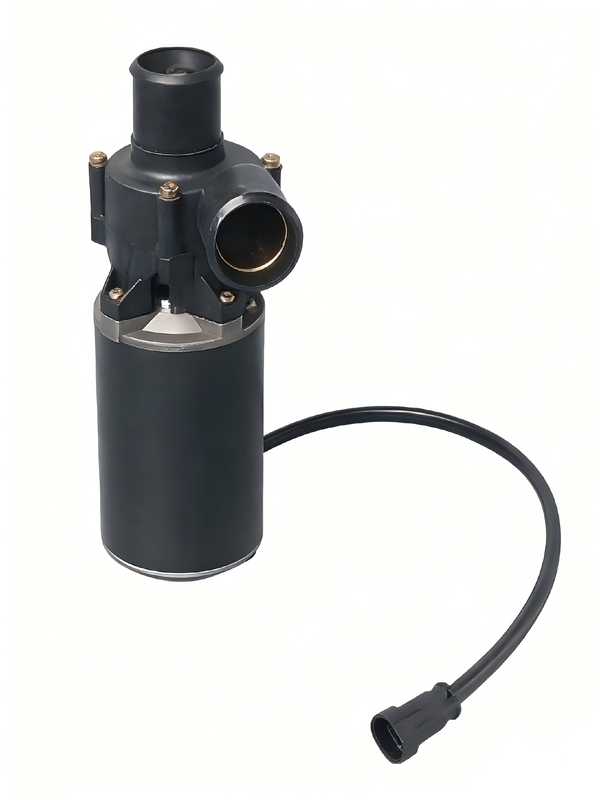

SLTDC-WPZ790-38
Sunlight
| Voltage: | |
|---|---|
| Quantity: | |
Product Parameters
| rated voltage | 24VDC |
| rated current | ≤6A |
| motor output power | 130W ± 10% |
| Rated speed | 3800 ± 200rpm |
| Insulation strength | withstands AC sinusoidal 660V, 50Hz, 1 second without breakdown |
| Maximum operating ambient temperature | +80°C |
| minimum ambient temperature | -40°C |
| Connector pull-off force | ≥49N (pull force meter) |
| motor protection level | IP54 |
| Operating mode | S1 |
| Weight | 1.7kg |

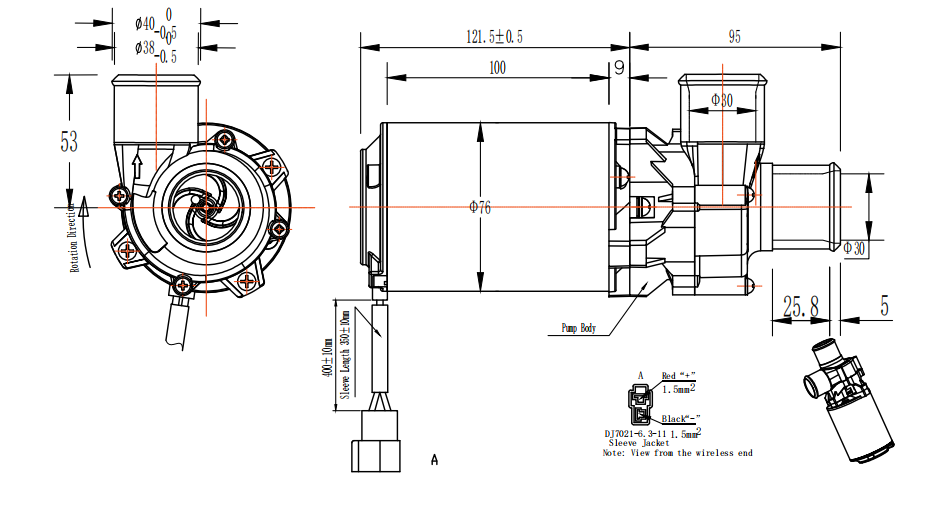

Specification
Reliable liquid circulation under variable conditions
Maintains consistent flow and pressure for demanding thermal management systems.
Durable brushed motor design
Engineered for long-term operation, offering predictable performance and low maintenance.
Leak-resistant and system-safe
Optimized sealing ensures secure operation in pressurized environments, minimizing downtime.
Flexible integration and secure connections
Compact layout and robust connectors simplify installation in diverse cooling architectures.
Adaptable to harsh environments
Performs reliably across wide temperature ranges and under mechanical or environmental stress.
Closed-loop thermal circulation systems
Designed for liquid cooling loops that require steady flow, pressure stability, and leak-safe operation.
Mobile equipment cooling architectures
Suitable for systems exposed to vibration and frequent movement, where secure connections and durability are essential.
Integrated cooling modules in power-dense systems
Supports heat dissipation in compact assemblies where consistent coolant delivery is critical.
All-climate operating environments
Performs reliably in both extreme cold and high-temperature conditions without compromising circulation efficiency.
Electrified and hybrid thermal management platforms
Well-matched for modern energy systems requiring dependable liquid transport and electrical safety.
OEM-customized cooling solutions
Easily adapted into tailored pump-and-pipeline designs for equipment manufacturers and system integrators.
Inspect the pump before installation
Ensure the housing and ports are clean and undamaged to support leak-free operation from the start.
Align the pump with the intended flow direction
Correct orientation helps maintain smooth circulation and avoids unnecessary load during operation.
Fix the pump securely within the system
Use stable mounting to prevent loosening or misalignment caused by vibration or long-term use.
Keep electrical interfaces protected
Seal and secure connectors properly to reduce the impact of dust, moisture, or mechanical stress.
Allow adequate airflow around the pump body
Avoid fully enclosed installation to help manage heat during continuous operation.
Prime the system before powering on
Fill the circuit with coolant in advance to prevent seal damage caused by extended dry running.
Monitor the system during initial operation
Check for abnormal noise, vibration, or leakage to ensure reliable long-term performance.
Since 1990, Sunlight has specialized in manufacturing high-performance brushless fans and blowers. Certified with ISO9001 and IATF16949, our products meet CE, RoHS, and EMC standards. Widely applied in automotive, machinery, refrigeration and energy industries. Sunlight is committed to delivering quality, innovation, and reliable cooling solutions.
All fans undergo 100% testing before shipment, with customization and technical support available.
Ordering Information
Sample Lead Time: 14days
Mass Production: 21days
MOQ: 2
Customization: Voltage, control mode, wiring, housing treatment available
Contact Us:
Sunny Li: +86-18806140118 / sunny@sunlightmotor.com
Alisa Chen: +86-18806140198 / sales3@czsunlight.com
Frances Zhang: +86-18806140168/ sales1@czsunlight.com
Vicky Li: +86-18806140098/ sunlight@sunlightmotor.com
Q1: What type of systems is this water pump best suited for?
A: It is designed for closed-loop liquid circulation systems that demand stable flow, secure sealing, and dependable long-term operation.
Q2: How does the pump perform in extreme or unstable environments?
A: The pump is engineered to operate reliably across wide temperature ranges and in environments affected by vibration, dust, or frequent movement.
Q3: Can the pump handle continuous operation?
A: Yes. Its internal structure and motor design support continuous-duty use, making it suitable for systems that run for extended periods.
Q4: What should be considered during installation to ensure reliability?
A: Proper mounting, correct flow orientation, and secure electrical connections are essential to maintain consistent performance and prevent premature wear.
Q5: Is the pump protected against leakage and external exposure?
A: The sealing and housing design help prevent coolant leakage while offering protection against splashing water and airborne contaminants.
Q6: Does the pump require special startup or shutdown procedures?
A: It is recommended to fill the system before startup and avoid extended dry operation to protect internal seals and components.
