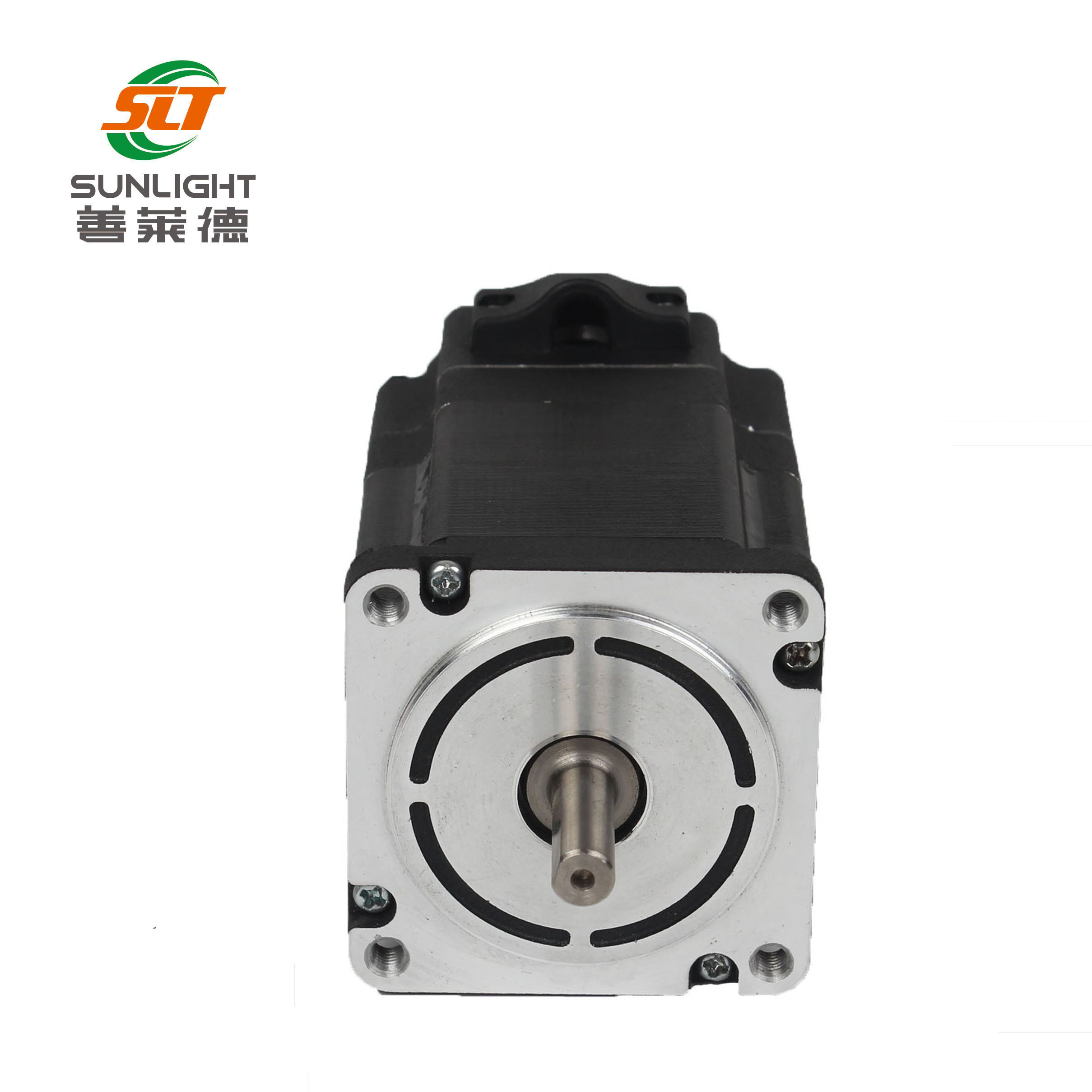

750W Brushless DC Motor SLT86BLF80

750W Brushless DC Motor, high efficiency motor, with high speed and largo torque, stable performance, customized parameter is available. It is widely used in industry application, medical machinery, AGV , etc.
  • SLT86BLF80

  • SLT

  • 8501310000

  • 86mm

  • 48V

  • 19.5A

  • 2.5N.m

  • 750W

  • 3

  • 4

Availability:
Quantity:

Specification of dc brushless motor SLT86BLF80


Specification

Unit Model
SLT86BLF30 SLT86BLF55 SLT86BLF80
Number of phase phase 3
Number of poles poles 4
Rated voltage VDC 48 48 48
Rated speed RPM 3000 3000 3000
Rated torque N.m 1 1.8 2.5
Rated current Amps 8.4 14.8 19.5
Rated power W 315 550 750
Body length mm 80 105 130

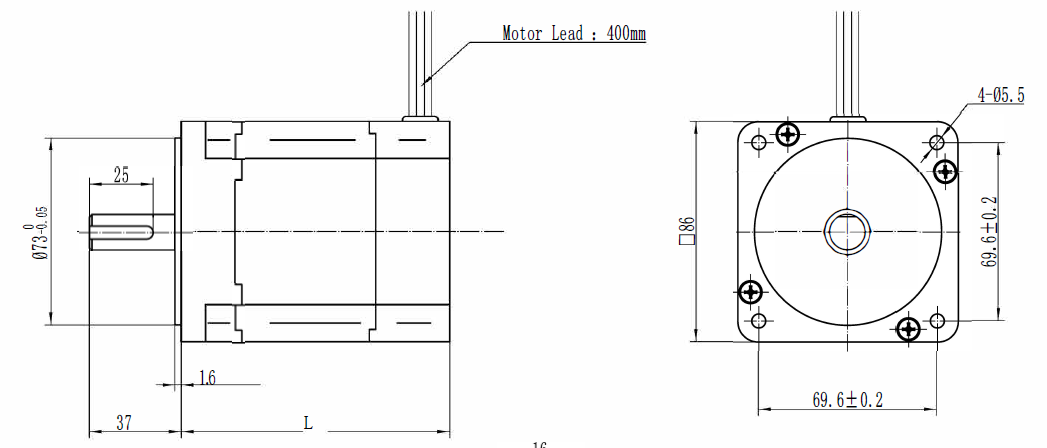

Drawing of dc brushless motor SLT86BLF80

SLT86BLF

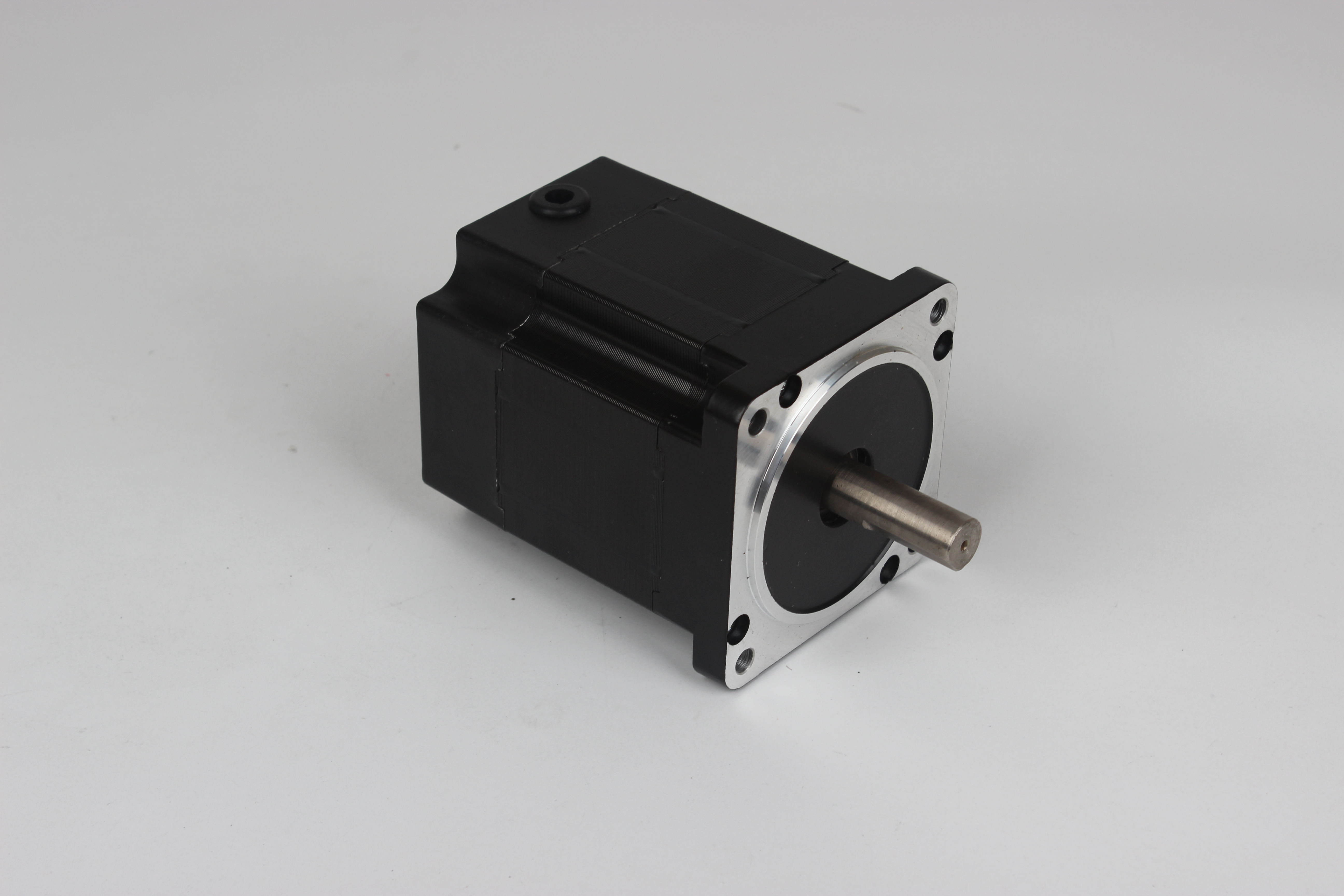

86BLF55 (3)

Application of dc brushless motor SLT86BLF80

application for brushless motor 1


About us

Factory

Since 1990

Sunlight is a young and energetic team, "where there is power supply, there is sunlight", this is our slogan.

It is the subsidiary company of the Jiangsu Woersen Electronics Technology Co.,ltd.


Now we have an excellent group with rich experience in manufacturing and reseaching.

We can provide solution to practical problems for all types customer.


Sunlight provides wide range of brushless dc motor and driver, a customized specifications can also be made.

We passed ISO9001 and IAFT16949, brushless dc motors have got CE, RoHS certification.


Certifations of dc brushless motors

CE-1CE-2

CE-3ROHS-2

TS16949


FAQ:

1.Q: Before place a order, how can I choose the right brushless dc motor?
A:Please specify the brushless dc motor size,voltage, power and no-load speed of the required wheel motor.

2.Q:Could I take brushless dc motor samples to test quality and market in advance?
A:Yes, welcome to take samples to test our quality and service.

3.Q:What's the total cost for samples?
A:Total sample cost= sample cost + freight
We will give u the best shipping cost after knowing the wheel size, battery needed or   not .

4.Q:How do you ship samples?
A:Considering sample quantity is not big, we support ship samples by EMS,TNT or    Fedex , fast and less damages.

5.Q:What's your minimum order quantity?
A:two samples are ok .

6.Q:Could I use my own forwarder?
A:Yes

7.Q:I am new to international business,could you find an experienced forwarder to organize shipment for us?
A:Yes, we will assist and guild you to work out the shipping and import process.

8.Q:Is the sample same with formal orders?
A:Yes, sample's specification, performance, quality are totally same with formal orders.

9.Q:What's your delivery time?
A:For samples: within 7days; For orders: within 25days.
