High Torque Brushless Dc Motor SLT80BLF55 Sunlight Motor

SLT80BLF55 Brushless DC Motor, high efficiency motor, with high speed and largo torque, stable performance, customized parameter is available. It is widely used in industry application, medical machinery, AGV , etc.




  • SLT80BLF50

  • SLT

  • 8501310000

  • 80mm

  • 48V

  • 11A

  • 0.76N.m

  • 400W

  • 3

  • 4

Availability:
Quantity:

Specs of High Torque Brushless Dc Motor SLT80BLF55



Model SLT80BLF55
Rated voltage 48V
Rated speed 5000rpm
Rated torque 0.76N.m
Rated current 11A
Rated power 400W
Body Length 106mm

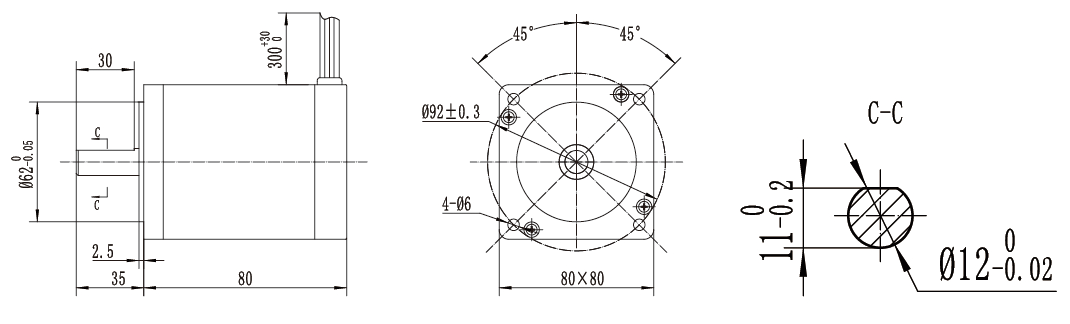

The drawing of High Torque Brushless Dc Motor SLT80BLF55

Drawing 80BLF80



Application of High Torque Brushless Dc Motor SLT80BLF55


SLT86BLF80 Brushless DC Motor, high efficiency motor, with high speed and largo torque, stable performance, customized parameter is available. It is widely used in industry application, medical machinery, AGV , etc.


motor applicationmotor application-1


About us


Factory

Since 1990

Sunlight provides the market with a wide range of brushless dc motor and drivers, we can customized made the specs for you.


Currently our company has passed ISO9001 and YS16949,also brushless dc motors have got then CE,RoHS certification.


Our principle: Quality is our life, technical is the basic, be honest and faithful to our partners. At the same time, we pay more attention on team work and improving the staff skills.Customer requirements and the innovation of technology as our guide, try to be the market leader of axial fan business.



Certifations of High Torque Brushless Dc Motor SLT80BLF55


CE-1CE-2CE-3ROHS-1ROHS-2TS16949





Exhibition of High Torque Brushless Dc Motor SLT80BLF55



微信图片_20181212103029微信图片_20181212103123微信图片_20181212103137微信图片_20181212103052

FAQ:

1.Q:Before place a order,how can i choose ?
A:Please specify the wheel diameter size,width,voltage,power and no-load speed of the required wheel motor.

2.Q:Could I take samples to test quality and market in advance?
A:Yes, welcome to take samples to test our quality and service.

3.Q:What's the total cost for samples?
A:Total sample cost= sample cost + freight
We will give u the best shipping cost after knowing the wheel size, battery needed or   not .

4.Q:How do you ship samples?
A:Considering sample quantity is not big, we support ship samples by EMS,TNT or    Fedex , fast and less damages.

5.Q:What's your minimum order quantity?
A:two samples are ok .

6.Q:Could I use my own forwarder?
A:Yes

7.Q:I am new to international business,could you find an experienced forwarder to organize shipment for us?
A:Yes, we will assist and guild you to work out the shipping and import process.

8.Q:Is the sample same with formal orders?
A:Yes, sample's specification, performance, quality are totally same with formal orders.

9.Q:What's your delivery time?
A:For samples: within 7days; For orders: within 25days.
