TD8114503-0A03402
Sunlight
TD8114503-0A03402
DC brush
12 VDC nominal
0.2N.m
optional
≤0.1A
≥1.2N.m
≤0.5A
customized
less than 45 dB at 10cm
-40℃ to 85℃
0.450KG
0-87°
≤0.2N.m
more than 900/L in the fully open position
IP54
more than 50,000 cycles
air leakage zero fault detection per 3 minutes at a 0.4Mpa pressure
internal leakage zero fault detection less than 1L per hour at the temperature 85℃ under a hydraulic pressure of 0.1Mpa
| Quantity: | |
|---|---|
Model: TD8114503-0A03402
Brand: Sunlight

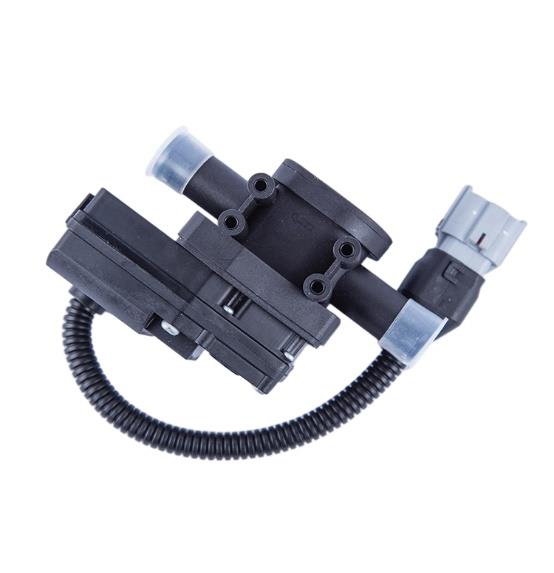

The Electric Water Valve TD8114503-0A03402 is engineered to precisely regulate coolant flow in vehicle heating systems. Integrated into the engine’s water circulation loop, this valve modulates flow to the heater core, enabling consistent in-cabin temperature control. Equipped with a DC brush motor actuator and 87° stem travel, it ensures reliable, accurate actuation under varied operating conditions.
| Feature | Specification | Benefit |
|---|---|---|
| Input Voltage | 12 VDC nominal | Compatible with most automotive systems |
| Rated Load Torque | 0.2 N·m | Smooth, stable valve actuation under load |
| Rated Load Speed | Optional | Customizable to application needs |
| Rated Load Current | ≤ 0.1 A | Energy-efficient performance |
| Stall Torque | ≥ 1.2 N·m | Strong startup under load |
| Stall Current | ≤ 0.5 A | Safe electrical limits |
| Noise Level | < 45 dB @ 10 cm | Quiet operation in vehicle cabin environment |
| Operating Temperature | –40 ℃ to +85 ℃ | Suitable for extreme climates |
| Net Weight | 0.450 kg | Compact and lightweight |
| Rotation Range | 0–87° | Ideal for open-close or modulated control |
| Opening / Closing Torque | ≤ 0.2 N·m | Low friction, responsive actuation |
| Flow Rate (Fully Open) | > 900 L/h | High throughput for demanding heating needs |
| Water Resistance | IP54 | Dust and splash resistant for engine bay environments |
| Service Life | ≥ 50,000 cycles | Durable and long-lasting |
| External Leakage | Zero leakage @ 0.4 MPa for 3 minutes | Excellent sealing performance |
Heating & cooling loops in commercial trucks and buses
Cabin HVAC systems in agricultural and construction machinery
Climate control in specialty, emergency, and utility vehicles
Any system requiring precise control of coolant or heater flow
Interested in full HVAC component systems? Explore our HVAC Solutions or check our selection of Brushless Fans for complementary parts.
Connector Type: Customized
Mounting Tips: Align smoothly with coolant lines, avoid sharp bends and air pockets
Wiring Advice: Provide slack for maintenance or replacement
Commissioning: Before putting into service, run a full open/close cycle test to verify smooth motion and no abnormal noise
Undergoes rigorous durability and environmental aging tests
Dual leakage inspection: external and internal
Accurate positioning and travel control
Validated under real-world vehicle operating conditions
Individually packaged with anti-vibration protection
Includes installation guide and test report
Customized packaging and labeling available upon request
A: It regulates coolant flow in HVAC systems, ensuring consistent cabin temperature and improved energy efficiency.
A: The valve is designed to operate from –40 ℃ to +85 ℃ and meets IP54 protection standards, ensuring reliability in harsh environments.
A: Its high sealing performance, low noise operation (<45 dB), and over 50,000 cycle durability make it stand out.
A: Yes, it works with commercial trucks, buses, agricultural machines, and specialty vehicles.
A: Minimal maintenance is needed. Inspect connections and ensure the valve cycles smoothly. Periodic cleaning of connectors is recommended.
For pricing, bulk orders, or custom versions (e.g. different voltage, torque, connector types), please contact our sales team:
International Sales: Sunny Li / Alisa Chen / Frances Zhang / Vicky Li
For phone, email, and details, see our Contact Us page.
