Hand Valve 603591A

The valve is running in typical vehicle heating system. The outlet and inlet hoses to the heater core are coupled with engine water circulation together. The valve triggers the valve stem traveling, which directs flow rate to regulate the heating value and enable desired in- cabin temperature.

  • 603591A

  • Sunlight

  • 603591A

  • -40℃ to 120℃

  • 90°

  • ≤0.2N.m

  • more than 1000/L in the fully open position

  • more than 50,000 cycles

  • air leakage fault detection per 3 minutes at a 0.4MPa pressure

  • internal leakage fault detection less than 950ml per hour at the temperature 85℃ under a hydraulic pressure of 0.1MPa

Availability:
Quantity:
Inquire Add to Basket

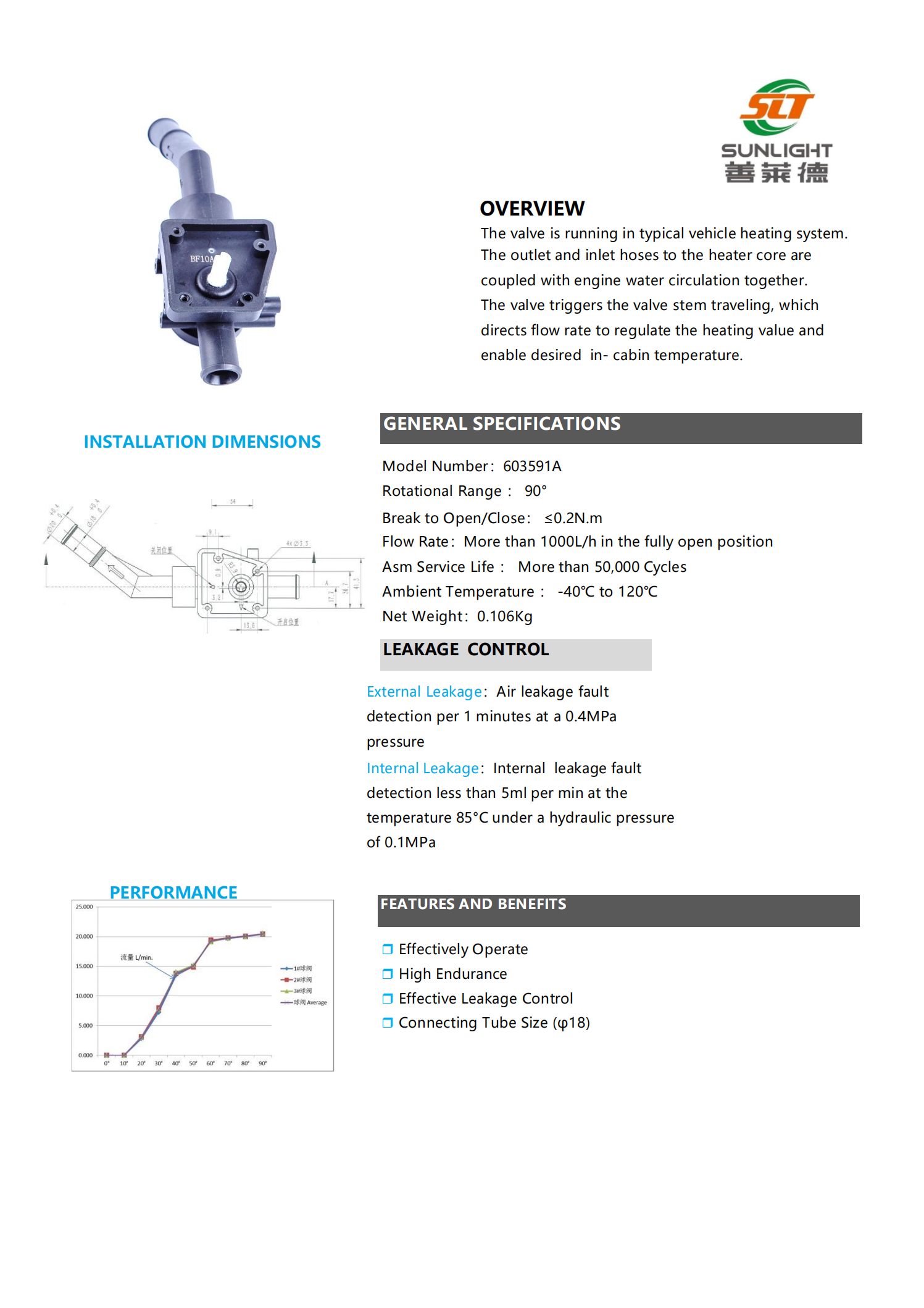

White_paper_EN_Actuator_&_valve_2024_catalogue(1)(1)_10
