NEMA 24 brushless DC Motor SLT60BLF69

300w Brushless DC Motor, high efficiency motor, with high speed and largo torque, stable performance, the customized parameter is available.It is widely used in industry application, medical machinery, AGV , etc. Sunlight Motor is a 300w Brushless DC Motor manufacturer & supplier.
SLT motor focus on offering motor solutions to smart products for home appliance ,like BLDC,Capacitor motor,shaded pole motor,universal motor and mini generator. Our motors are widely used in kitchen, air conditional, Ice chest, washing machine etc.
  • SLT60BLF69

  • SLT

  • 8501310000

  • 60mm

  • 48V

  • 8.8A

  • 0.95N.m

  • 300W

  • 3

  • 8

Availability:
Quantity:

Specification of dc brushless motor SLT60BLF69

Specification

Unit Model
SLT60BLF27 SLT60BLF48 SLT60BLF69 SLT60BLF90
Number of phase phase 3
Number of poles poles 8
Rated voltage VDC 48 48 48 48
Rated speed RPM 3000 3000 3000 3000
Rated torque N.m 0.32 0.65 0.95 1.27
Rated current Amps 3 6 8.8 11.5
Rated power W 100 200 300 400
Body length mm 78 99 120 141

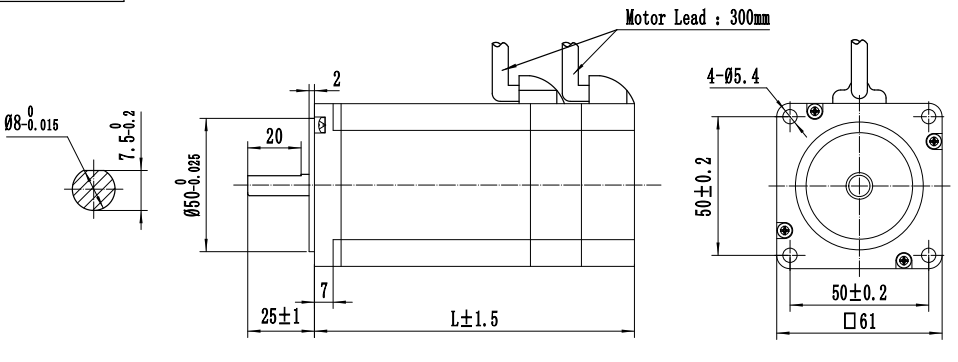

Drawing of dc brushless motor SLT60BLF69

SLT60BLF90


SLT60BL

Application of dc brushless motor SLT60BLF69S

application for brushless motor 1
