WBLF-1601-BT2400
Sunlight
| Voltage: | |
|---|---|
| Quantity: | |
| Model | WBLF-1601-BT2400 |
| Max fan speed | 3100rpm |
| Min fan speed | 1000rpm |
| Noise level | 60dBA |
| Weight | 3.5kg |
| Lifetime | up to 25000 hours depending on mission profile |
| Time from 0 rpm to max speed | 8S |
| Range of working temperature | -40 ~ +80℃ |
| Operating power supply voltage range | 18-32V |
We have 12-24V brushless axial fan,and 200W-950W.We will recomemd u the correct model according to your specifications.
1.Independent research and development fan blades and driver
2.High power
3.low noise
4.IP68 protection level
5.The fan can realize stepless speed regulation.
6.The working environment is -40℃~+ 100℃
7.Passed EMC certification,meets ISO 16750:2010 standards
8.The fan blade and motor structure have applied for domestic and international invention patents.
Brushless axial fan can be used in Ambulance,Loader,Construstion machinery,Drilling truck,Manure truck,corn reciver,Excavator,Snow shovel,Bus,Engineering vehicle,Forestry machinery,Refrigeration truck and so on.
New energy vehicle
new energy charging pile
hydrogen fuel vehicles
Sunlight provides the market with a wide range of high performance brushless fans and blowers, specially designed to meet new generation cooling systems requirements in every industry.
Currently our company has passed ISO9001 and YS16949,also brushless axial fans have got then CE,RoHS certification.
We attended Bauma Fair In German and Shanghai,Frankfurt Shanghai,CIAAR Shanghai.
Shanghai BAUMA Exhibition
Shanghai Frankfurt Exhibition
delivery DC Fans
delivery to European
delivery brushless fans
delivery axial fans
Q1: What vehicles is this fan compatible with?
A: Designed for trucks, buses, construction machinery, refrigeration vehicles and new-energy vehicles. Confirm mounting dimensions and electrical compatibility before replacing an existing unit.
Q2: What nominal voltage does this fan require?
A: Standard SKU is 24 V DC. Custom 12 V or other configurations may be available — contact sales to confirm.
Q3: Is this fan waterproof and dustproof?
A: Yes. The unit is rated IP68 when installed per instructions.
Q4: What control interface is supported?
A: PWM stepless speed control. We can provide wiring recommendations for controllers and fusing.
Q5: Can this replace SPAL condenser fans?
A: It’s designed as a universal SPAL-style replacement. Verify bolt pattern, depth and electrical connections before ordering.
Q6: What is the expected service life and warranty?
A: Typical life is ~25,000 hours depending on operating conditions. Warranty varies by order size/region — contact sales for details.
Q7: Do you provide mounting kits or harnesses?
A: Yes — mounting kits, connector harnesses and protective screens are available as accessories.

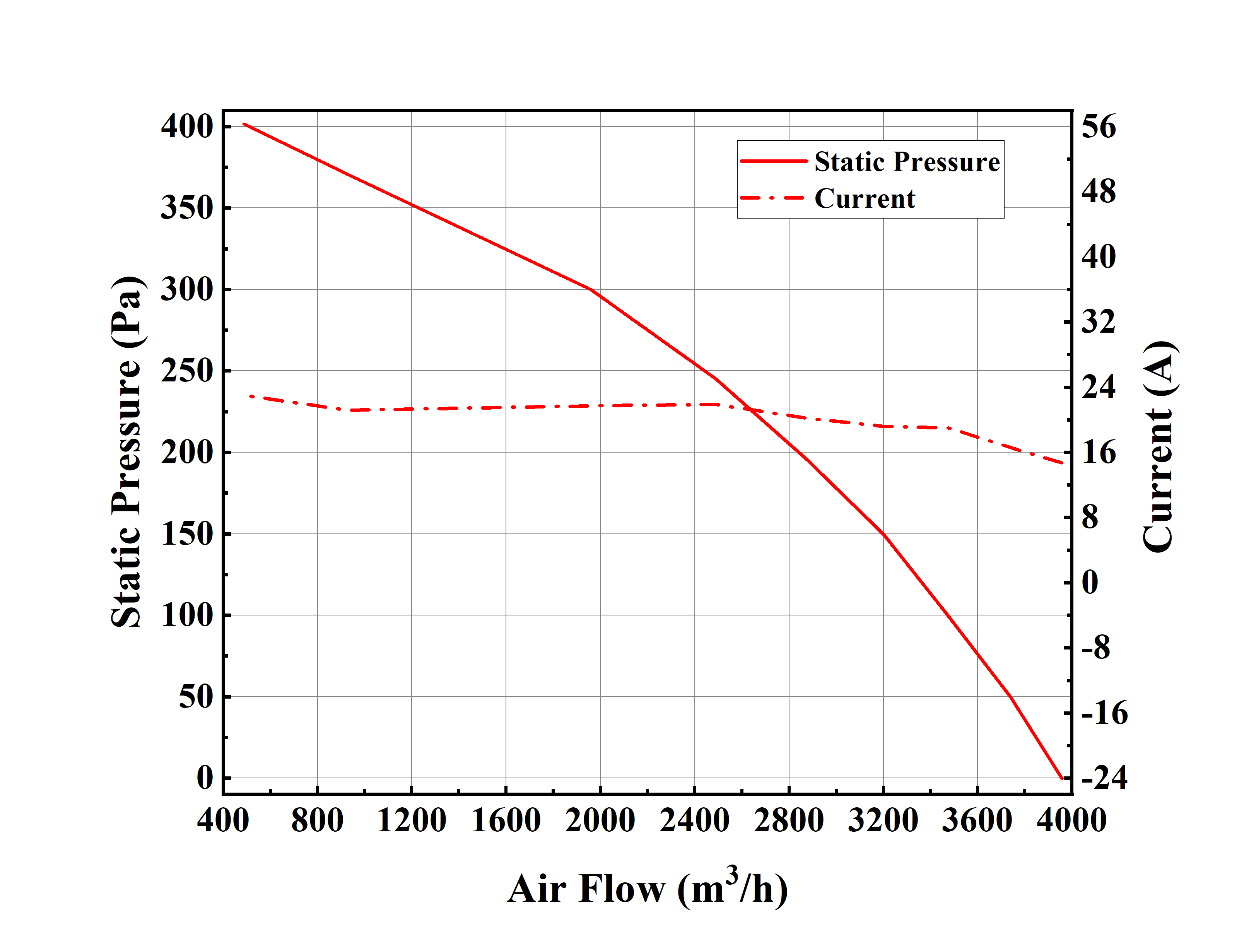

Q8: Are performance curves available?
A: Yes — airflow vs static pressure curves and dimension drawings are available; please request the PDF from sales or download from the product page.
| Model | WBLF-1601-BT2400 |
| Max fan speed | 3100rpm |
| Min fan speed | 1000rpm |
| Noise level | 60dBA |
| Weight | 3.5kg |
| Lifetime | up to 25000 hours depending on mission profile |
| Time from 0 rpm to max speed | 8S |
| Range of working temperature | -40 ~ +80℃ |
| Operating power supply voltage range | 18-32V |
We have 12-24V brushless axial fan,and 200W-950W.We will recomemd u the correct model according to your specifications.
1.Independent research and development fan blades and driver
2.High power
3.low noise
4.IP68 protection level
5.The fan can realize stepless speed regulation.
6.The working environment is -40℃~+ 100℃
7.Passed EMC certification,meets ISO 16750:2010 standards
8.The fan blade and motor structure have applied for domestic and international invention patents.
Brushless axial fan can be used in Ambulance,Loader,Construstion machinery,Drilling truck,Manure truck,corn reciver,Excavator,Snow shovel,Bus,Engineering vehicle,Forestry machinery,Refrigeration truck and so on.
New energy vehicle
new energy charging pile
hydrogen fuel vehicles
Sunlight provides the market with a wide range of high performance brushless fans and blowers, specially designed to meet new generation cooling systems requirements in every industry.
Currently our company has passed ISO9001 and YS16949,also brushless axial fans have got then CE,RoHS certification.
We attended Bauma Fair In German and Shanghai,Frankfurt Shanghai,CIAAR Shanghai.
Shanghai BAUMA Exhibition
Shanghai Frankfurt Exhibition
delivery DC Fans
delivery to European
delivery brushless fans
delivery axial fans
Q1: What vehicles is this fan compatible with?
A: Designed for trucks, buses, construction machinery, refrigeration vehicles and new-energy vehicles. Confirm mounting dimensions and electrical compatibility before replacing an existing unit.
Q2: What nominal voltage does this fan require?
A: Standard SKU is 24 V DC. Custom 12 V or other configurations may be available — contact sales to confirm.
Q3: Is this fan waterproof and dustproof?
A: Yes. The unit is rated IP68 when installed per instructions.
Q4: What control interface is supported?
A: PWM stepless speed control. We can provide wiring recommendations for controllers and fusing.
Q5: Can this replace SPAL condenser fans?
A: It’s designed as a universal SPAL-style replacement. Verify bolt pattern, depth and electrical connections before ordering.
Q6: What is the expected service life and warranty?
A: Typical life is ~25,000 hours depending on operating conditions. Warranty varies by order size/region — contact sales for details.
Q7: Do you provide mounting kits or harnesses?
A: Yes — mounting kits, connector harnesses and protective screens are available as accessories.
Q8: Are performance curves available?
A: Yes — airflow vs static pressure curves and dimension drawings are available; please request the PDF from sales or download from the product page.
