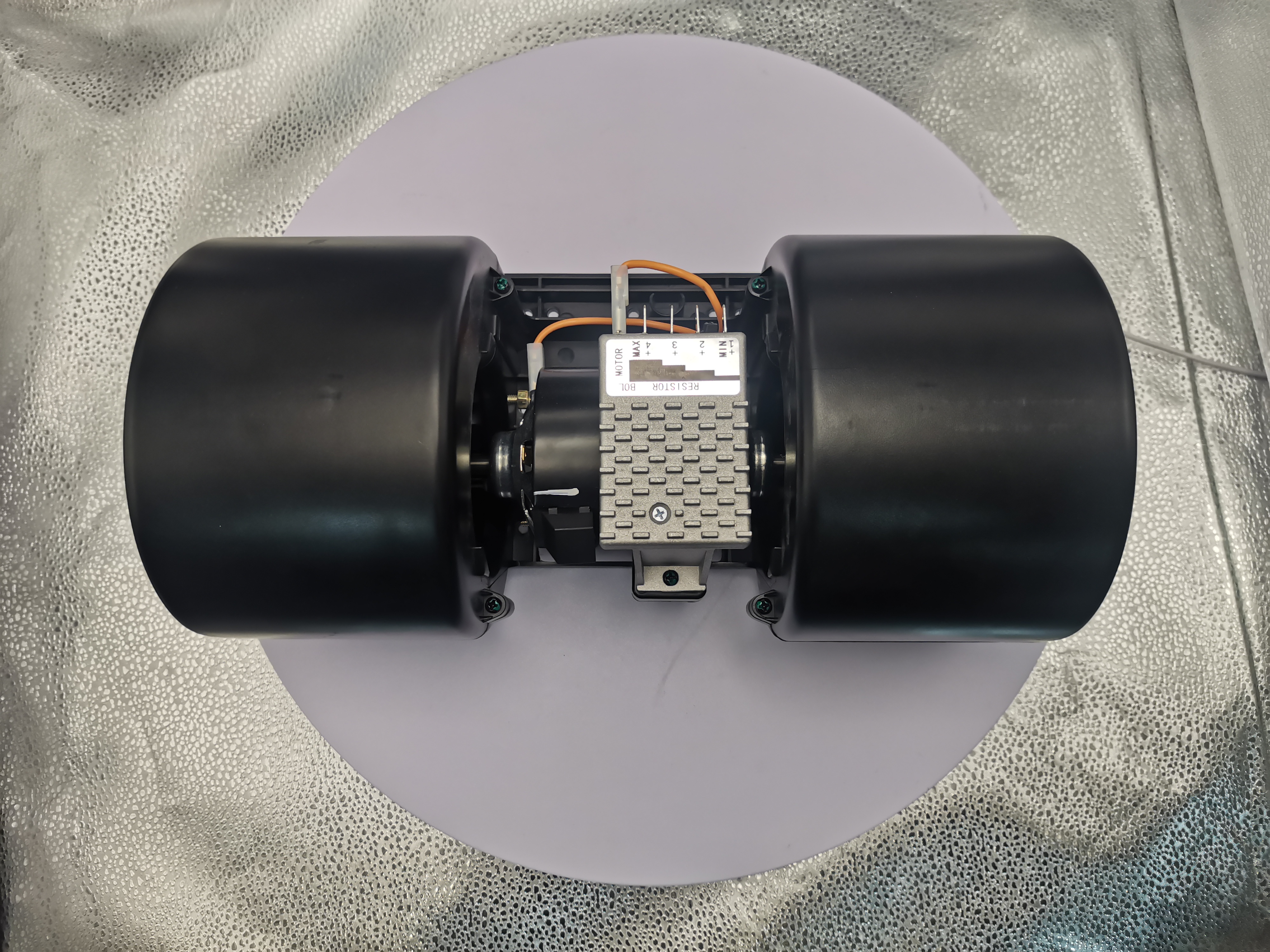

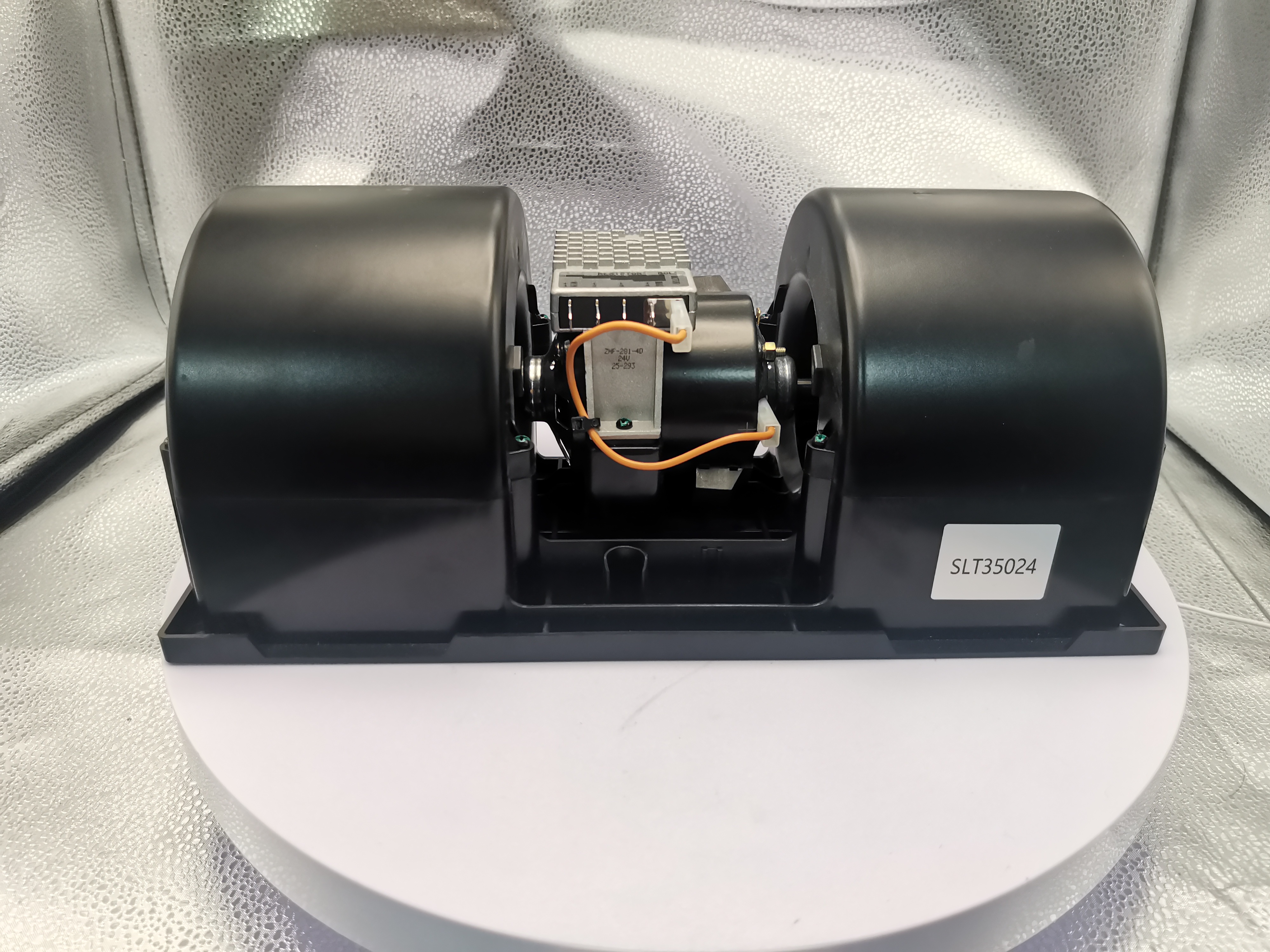

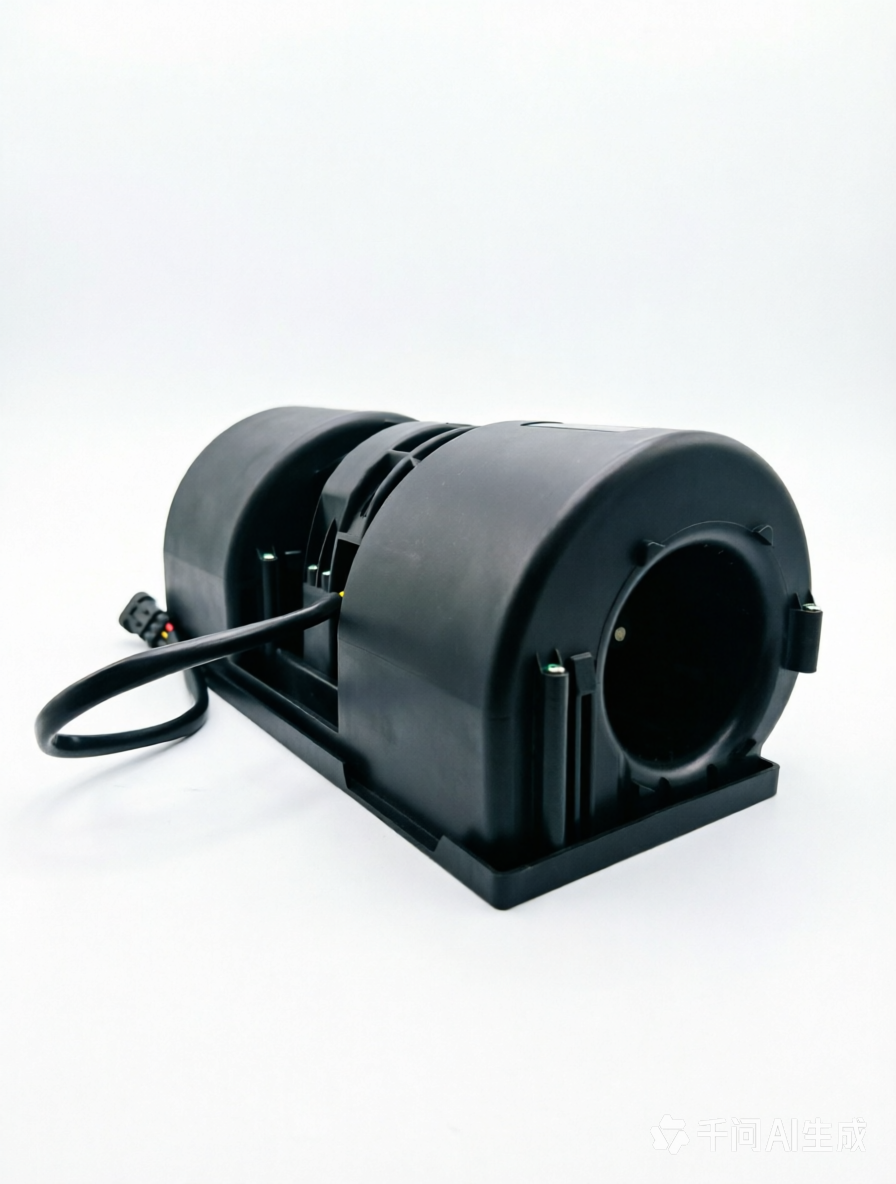

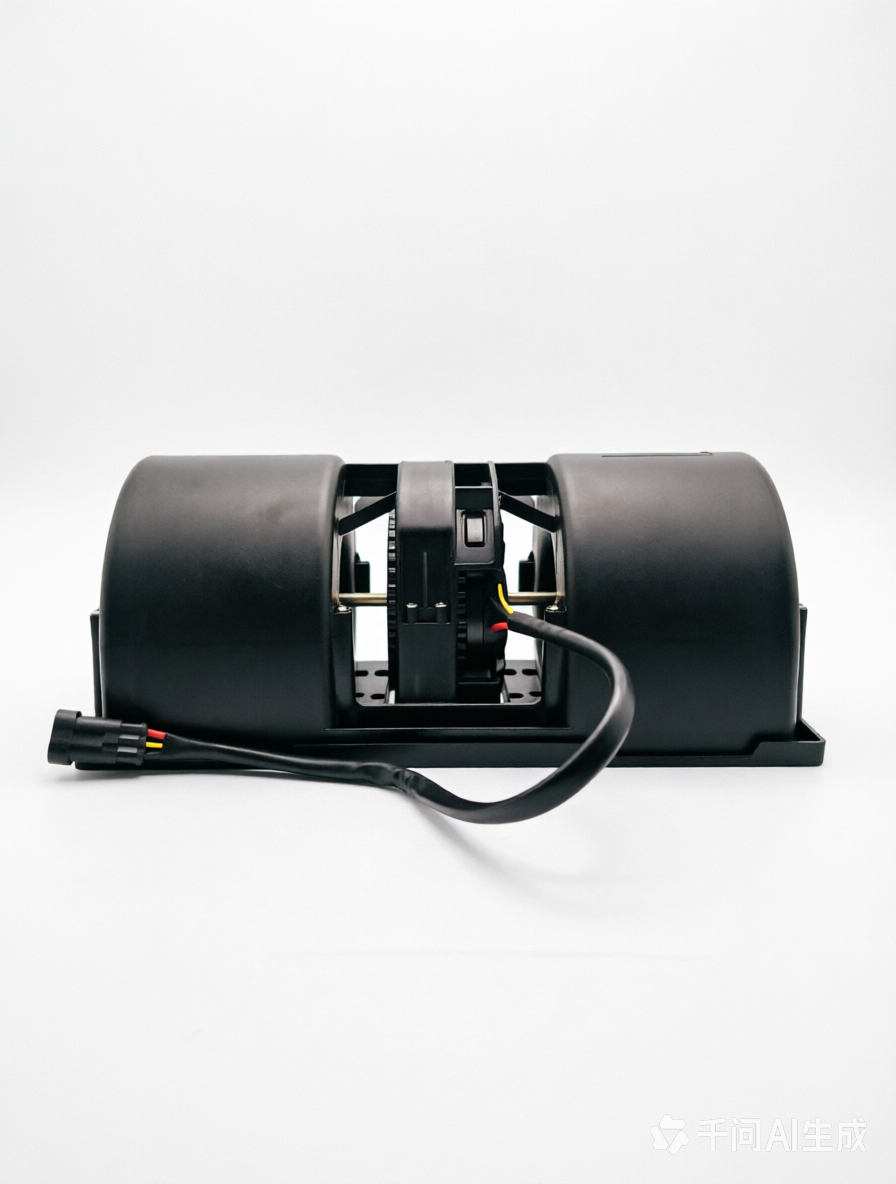

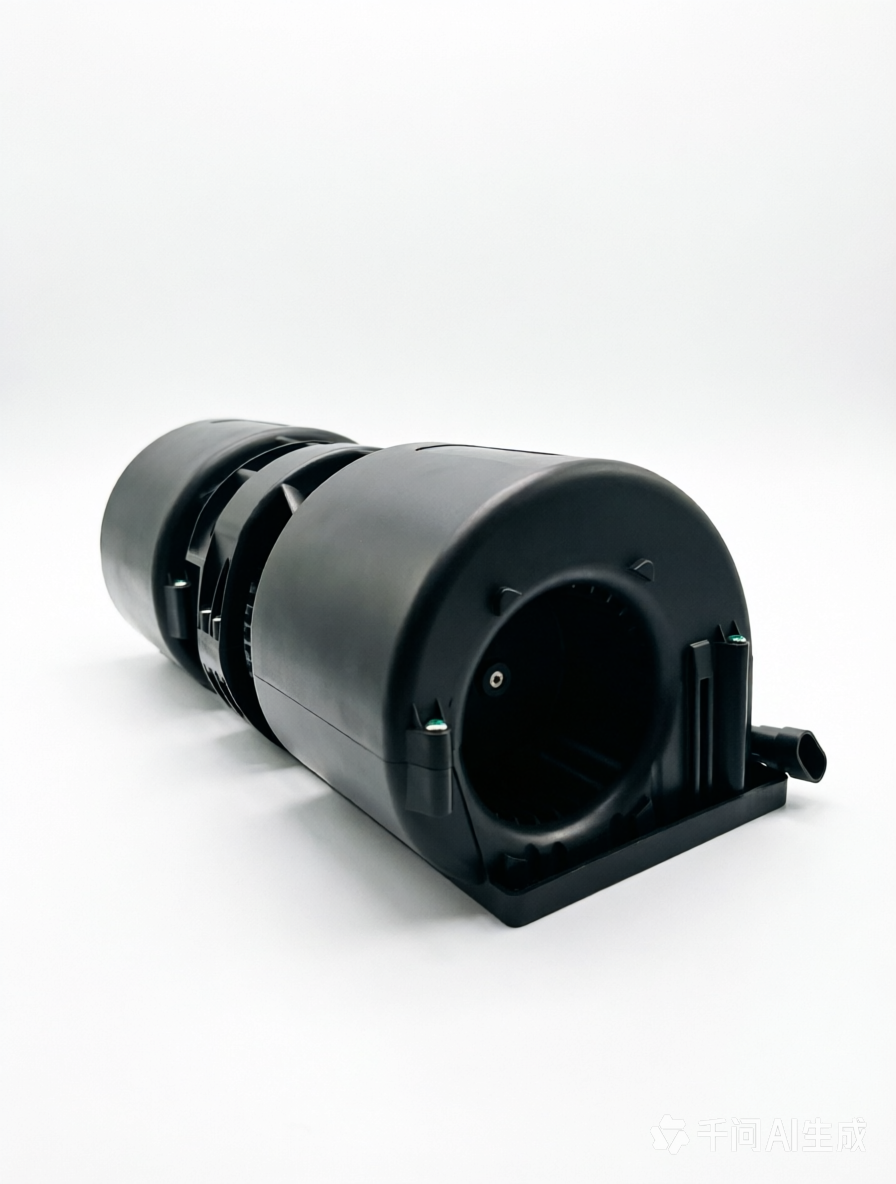

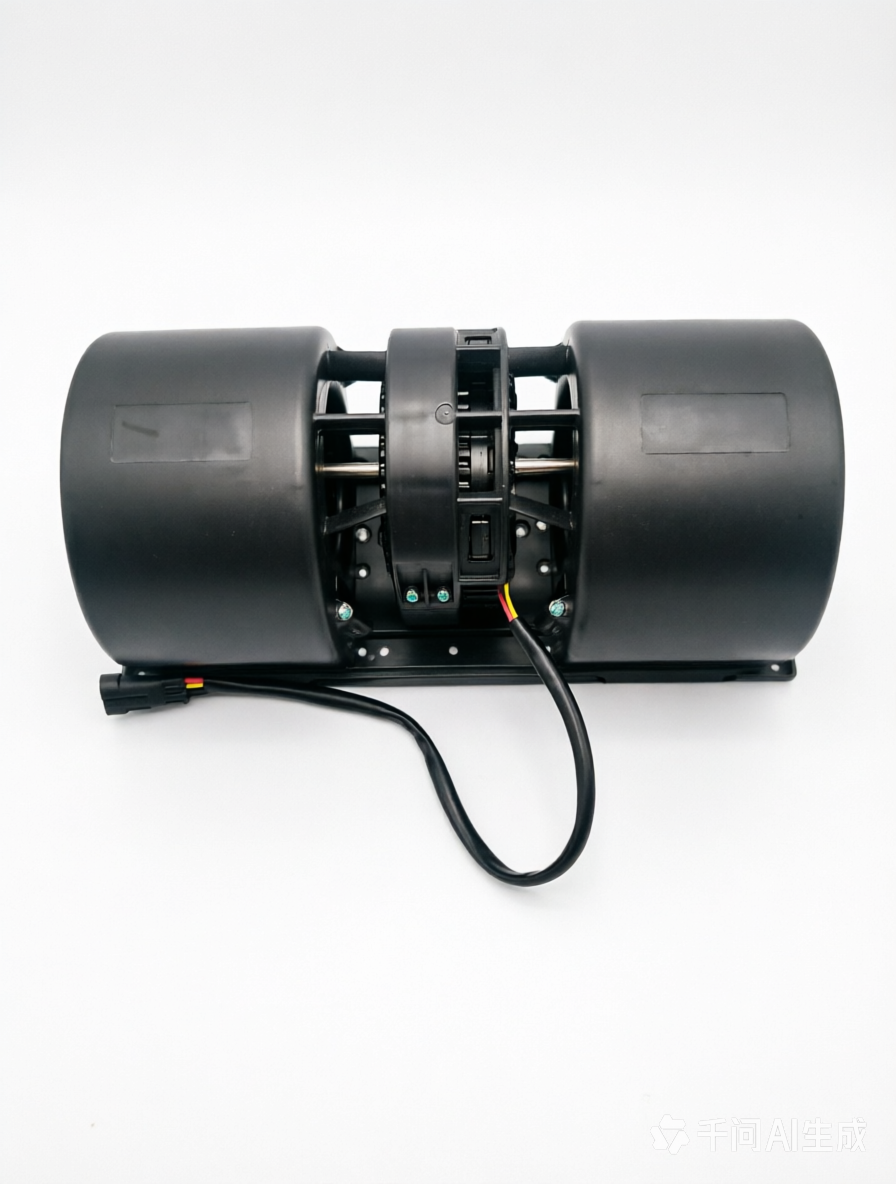

SLTBLDC-35024
Sunlight
| Voltage: | |
|---|---|
| Quantity: | |
| Max Fan Speed | 3600rpm |
| Min Fan Speed | 890rpm |
| Weight | 2.1KG |
| Operating supply voltage rang | 16-32V |
| Operating working temperature range | -40°C - +80°C |
| Storage temperature range | -40°C - +125°C |
| Life time | 4000 |
24V 350mm DC Brushless Blower is widely used in various modelsļ¼such as Ambulance, Loader, Construction machinery, Special vehicle, Manure truck, Corn receiver, Excavator, Snow shovel, Bus, Engineering Vehicle, Forestry Machinery, Refrigeration Truck and so on.
IATF I16949:2016 Certificate
IATF 16949:2016 Certificate
EMC Certificate
CE certificate
Q1ļ¼What voltage fluctuations can this 24V fan withstand in vehicle environment?
Aļ¼Its operating supply voltage range is 16V-32V. It can work normally under vehicle power supply fluctuation; to reach maximum fan speed, the input voltage needs to be 24V-32V at the connection terminal.
Q2ļ¼What is the service life of this cooling fan?
Aļ¼The fan is designed with 40000 hours service life. Strict dynamic balance correction and automotive grade material are adopted to support long time running for commercial vehicles and engineering equipment.
Q3ļ¼What temperature range can this fan endure for operation and storage?
Aļ¼The operating temperature range is 40ā~+80ā, it starts power derating at +85ā. The storage temperature covers 40ā~+125ā, adapting to harsh high temperature engine cabin and frigid outdoor conditions.

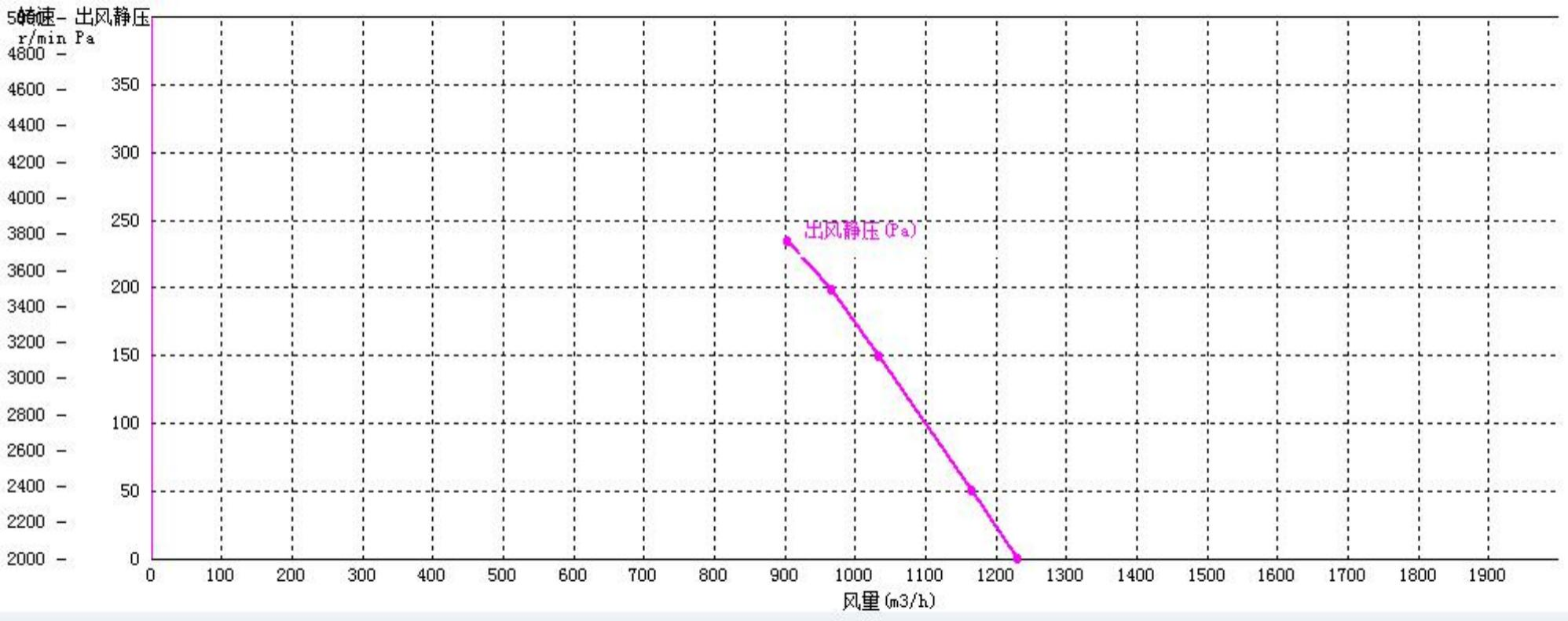

Q4ļ¼What airflow and rotating speed adjustment capability does this fan have?
Aļ¼It delivers airflow ā„1150m³/h. The speed is adjustable from 890rpm up to 3600rpm, which can flexibly match different heat dissipation demands.
Q5ļ¼Which automotive standards does this fan comply with?
Aļ¼This fan complies with QC/T series automotive specifications for cooling fan, wiring harness and plug in components. Its plastic housing, fan blade and high temperature irradiation wire all adopt automotive grade materials.
