SLT-1124C-5
Sunlight
| Voltage: | |
|---|---|
| Quantity: | |
| Max Fan Speed | 3000rpm |
| Min Fan Speed | 1000rpm |
| Weight | 2.2KG |
| Operating supply voltage rang | 24V |
| Operating working temperature range | -40°C - 85°C |
| Storage temperature range |  -40°C - 100°C |
| Life time | up to 8000 hours depending on missing profile |
| Static presusure Pa | Airflow m3/h | Current A |
| 0 | 2271 | 6.5 |
| 20 | 2163 | 6.5 |
| 40 | 2054 | 6.6 |
| 60 | 1908 | 6.7 |
| 80 | 1718 | 6.9 |
| 100 | 1524 | 6.9 |
| 120 | 1332 | 7 |
| 140 | 1126 | 7.1 |
| 160 | 976 | 7.2 |
| 180 | 630 | 7.4 |
| 200 | 500 | 7.6 |

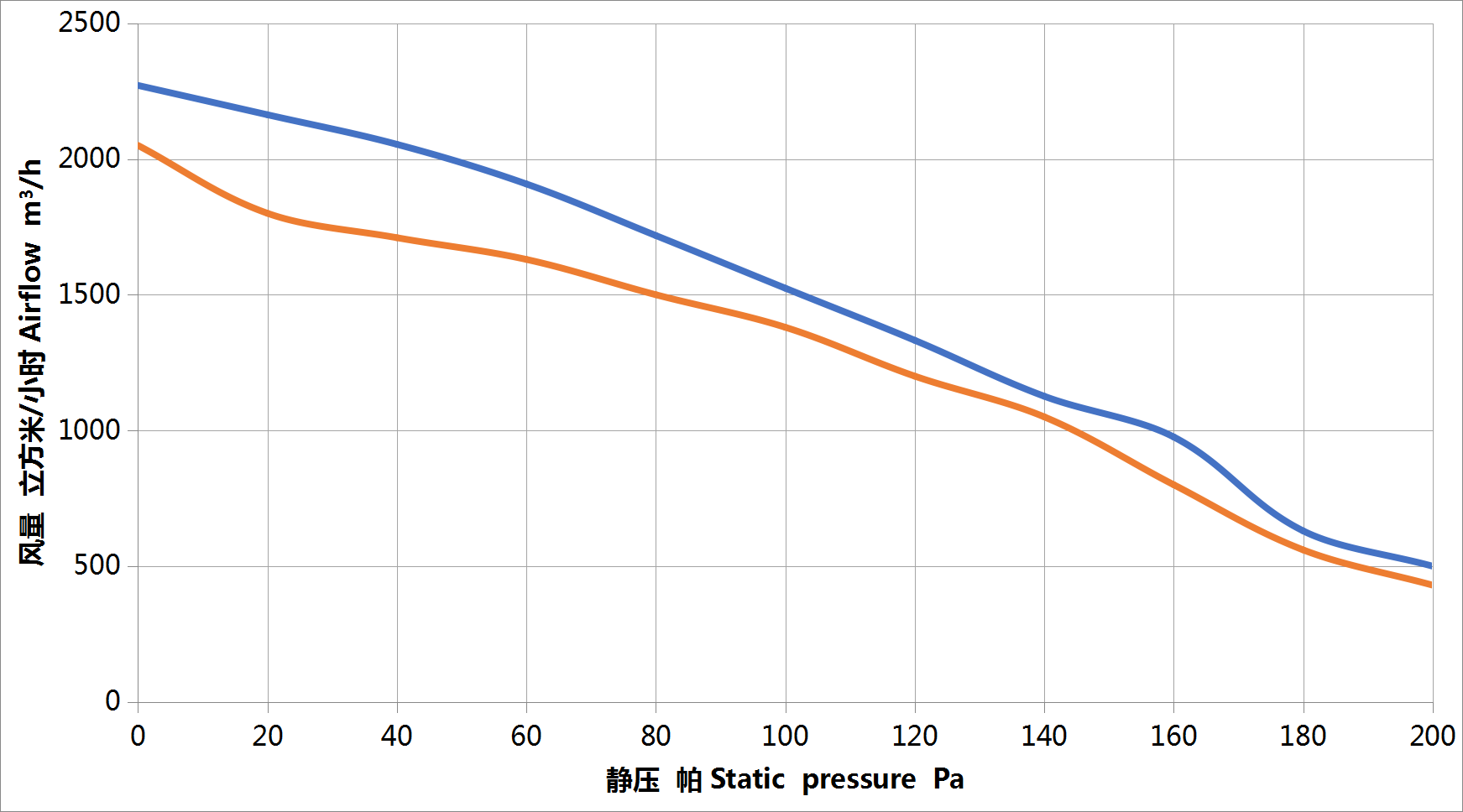

The blue line is Airflow
Brushless Axial fans is widely used in various models，such as Ambulance, Loader, Construction machinery, Special vehicle, Manure truck, Corn receiver, Excavator, Snow shovel, Bus, Engineering Vehicle, Forestry Machinery, Refrigeration Truck and so on.
Since 1990, Sunlight has specialized in manufacturing high-performance brushless fans and blowers. Certified with ISO9001 and IATF16949, our products meet CE, RoHS, and EMC standards. Widely applied in automotive, machinery, refrigeration and energy industries. Sunlight is committed to delivering quality, innovation, and reliable cooling solutions.
All fans undergo 100% testing before shipment, with customization and technical support available.
IATF I16949:2016 Certificate
IATF 16949:2016 Certificate
EMC Certificate
CE certificate
Sunlight Brushless Axial fans are the result of more than 10 years engineering experience. Sunlight uses advanced modeling software and computer-assisted simulation systems to develop electric motors and blades that optimize a fan’s ability to pull air cleanly through the radiator core.
While many cooling fans are pieced together from many different vendors, Sunlight controls all aspects of its engineering and manufacturing processes from the design and tooling of injection molds to the winding of each electric motor at its ISO 9001 and TS16949-certified facilities.
| Max Fan Speed | 3000rpm |
| Min Fan Speed | 1000rpm |
| Weight | 2.2KG |
| Operating supply voltage rang | 24V |
| Operating working temperature range | -40°C - 85°C |
| Storage temperature range | -40°C - 100°C |
| Life time | up to 8000 hours depending on missing profile |
| Static presusure Pa | Airflow m3/h | Current A |
| 0 | 2271 | 6.5 |
| 20 | 2163 | 6.5 |
| 40 | 2054 | 6.6 |
| 60 | 1908 | 6.7 |
| 80 | 1718 | 6.9 |
| 100 | 1524 | 6.9 |
| 120 | 1332 | 7 |
| 140 | 1126 | 7.1 |
| 160 | 976 | 7.2 |
| 180 | 630 | 7.4 |
| 200 | 500 | 7.6 |
The blue line is Airflow
Brushless Axial fans is widely used in various models，such as Ambulance, Loader, Construction machinery, Special vehicle, Manure truck, Corn receiver, Excavator, Snow shovel, Bus, Engineering Vehicle, Forestry Machinery, Refrigeration Truck and so on.
Since 1990, Sunlight has specialized in manufacturing high-performance brushless fans and blowers. Certified with ISO9001 and IATF16949, our products meet CE, RoHS, and EMC standards. Widely applied in automotive, machinery, refrigeration and energy industries. Sunlight is committed to delivering quality, innovation, and reliable cooling solutions.
All fans undergo 100% testing before shipment, with customization and technical support available.
IATF I16949:2016 Certificate
IATF 16949:2016 Certificate
EMC Certificate CE certificate
Sunlight Brushless Axial fans are the result of more than 10 years engineering experience. Sunlight uses advanced modeling software and computer-assisted simulation systems to develop electric motors and blades that optimize a fan’s ability to pull air cleanly through the radiator core.
While many cooling fans are pieced together from many different vendors, Sunlight controls all aspects of its engineering and manufacturing processes from the design and tooling of injection molds to the winding of each electric motor at its ISO 9001 and TS16949-certified facilities.
