24V Brushless DC Motor NEMA 23

SLT57BLF80, Brushless dc motor, 24V Brushless DC Motorhigh efficiency motor, with high speed and largo torque. It is widely used in industry application, medical machinery, AGV , etc.

  • SLT57BLF80

  • SLT

  • 8501310000

  • 57mm

  • 24V

  • 10.5A

  • 0.4N.m

  • 180W

  • 3

  • 4

Availability:
Quantity:
Inquire Add to Basket

Specification of dc brushless motor SLT57BLF80


Specification

 Unit Model
SLT57BLF20 SLT57BLF40 SLT57BLF60 SLT57BLF80
Number of phase phase 3
Number of poles poles 4
Rated voltage VDC 24 24 24 48
Rated speed RPM 4000 4000 4000 4000
Rated torque N.m 0.11 0.22 0.32 0.4
Rated current Amps 2.7 5.4 8.1 10.5
Rated power W 46 92 135 180
Body length mm 55 75 95 115

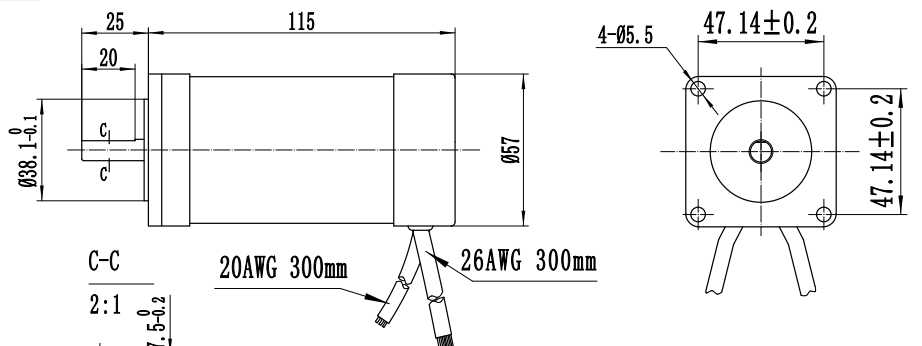

Drawing of dc brushless motor SLT57BLF80

brushless motor 57blf80s

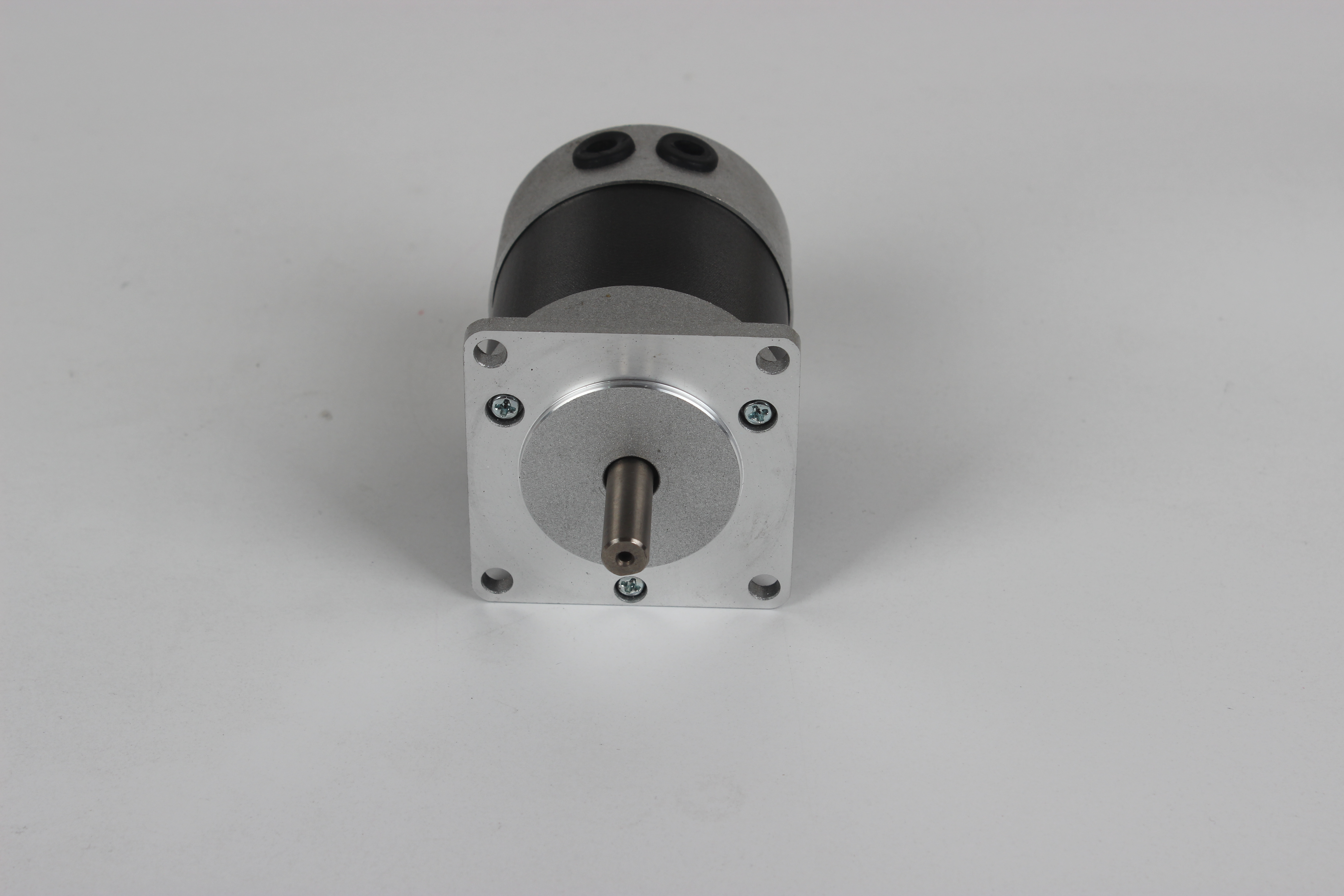

57BLF


Application of dc brushless motor SLT57BLF80

application for brushless motor 1
