SLT57BLF40S 125W Brushless DC Motor

SLT57BLF40S, Brushless dc motor, high efficiency motor, with high speed and largo torque. It is widely used in industry application, medical machinery, AGV , etc.
  • SLT57BLF40S

  • SLT

  • 8501310000

  • 57mm

  • 24V

  • 6.6A

  • 0.4N.m

  • 125W

  • 3

  • 4


Specification of dc brushless motor SLT57BLF40S


Unit Model
Number of phase phase 3
Number of poles poles 4
Rated voltage VDC 24 24 24 48
Rated speed RPM 3000 3000 3000 3000
Rated torque N.m 0.2 0.4 0.6 0.8
Rated current Amps 3.3 6.6 10 7
Rated power W 62 125 188 250
Body length mm 55 75 95 115

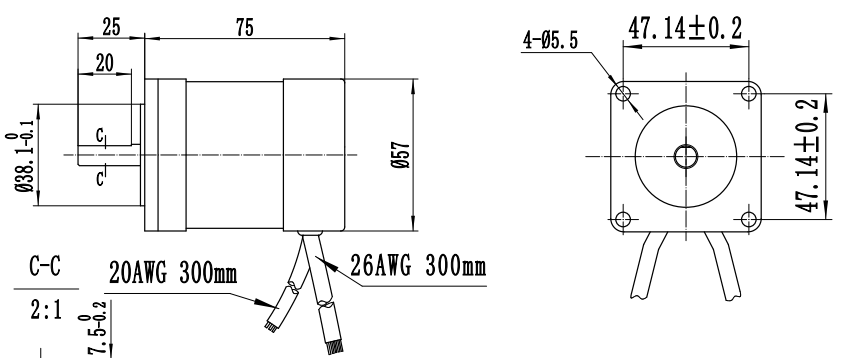

Drawing of dc brushless motor SLT57BLF40S

brushless motor 57BLF40S

Application of dc brushless motor SLT57BLF40S

application for brushless motor 1
