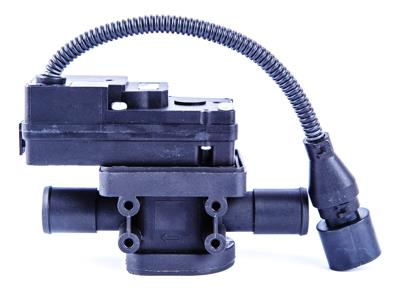

602352A
Sunlight
602352A
DC brush
24 VDC nominal(18 VDC to 32VDC allowable operating range)
0.4N.m
6±1.5rpm
≤0.1A
≥1.1N.m
≤0.5A
Sleeve 0453604,Connector 0128901
less than 45 dB at 10cm
-40℃ to 85℃
0.220KG
90°
≤0.2N.m
more than 1000/L in the fully open position
IP66
more than 50,000 cycles
air leakage zero fault detection per 3 minutes at a 0.4Mpa pressure
internal leakage zero fault detection less than 950ml per hour at the temperature 85℃ under a hydraulic pressure of 0.1Mpa
