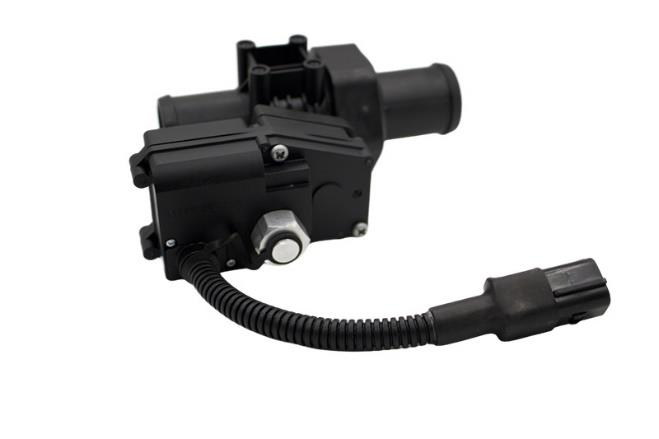

Electric Water Valve 603697A

The valve is running in typical vehicle heating system.The outlet and inlet hoses to the heater core are coupled with engine water circulation together. The actuator drives valve and the valve triggers the valve stem traveling, which directs flow rate to regulate the heating value and enable desired in cabin temperature.

  • 603697A

  • Sunlight

  • 603697A

  • DC brush

  • 12 VDC nominal

  • 0.4N.m

  • 4±1rpm

  • ≤0.1A

  • ≥1.1N.m

  • ≤0.5A

  • Sleeve 174259-2,Connector 173706-1

  • less than 45 dB at 10cm

  • -40℃ to 85℃

  • 0.220KG

  • 90°

  • ≤0.2N.m

  • more than 1000/L in the fully open position

  • IP67

  • more than 50,000 cycles

  • air leakage zero fault detection per 3 minutes at a 0.4Mpa pressure

  • internal leakage zero fault detection less than 950ml per hour at the temperature 85℃ under a hydraulic pressure of 0.1Mpa
