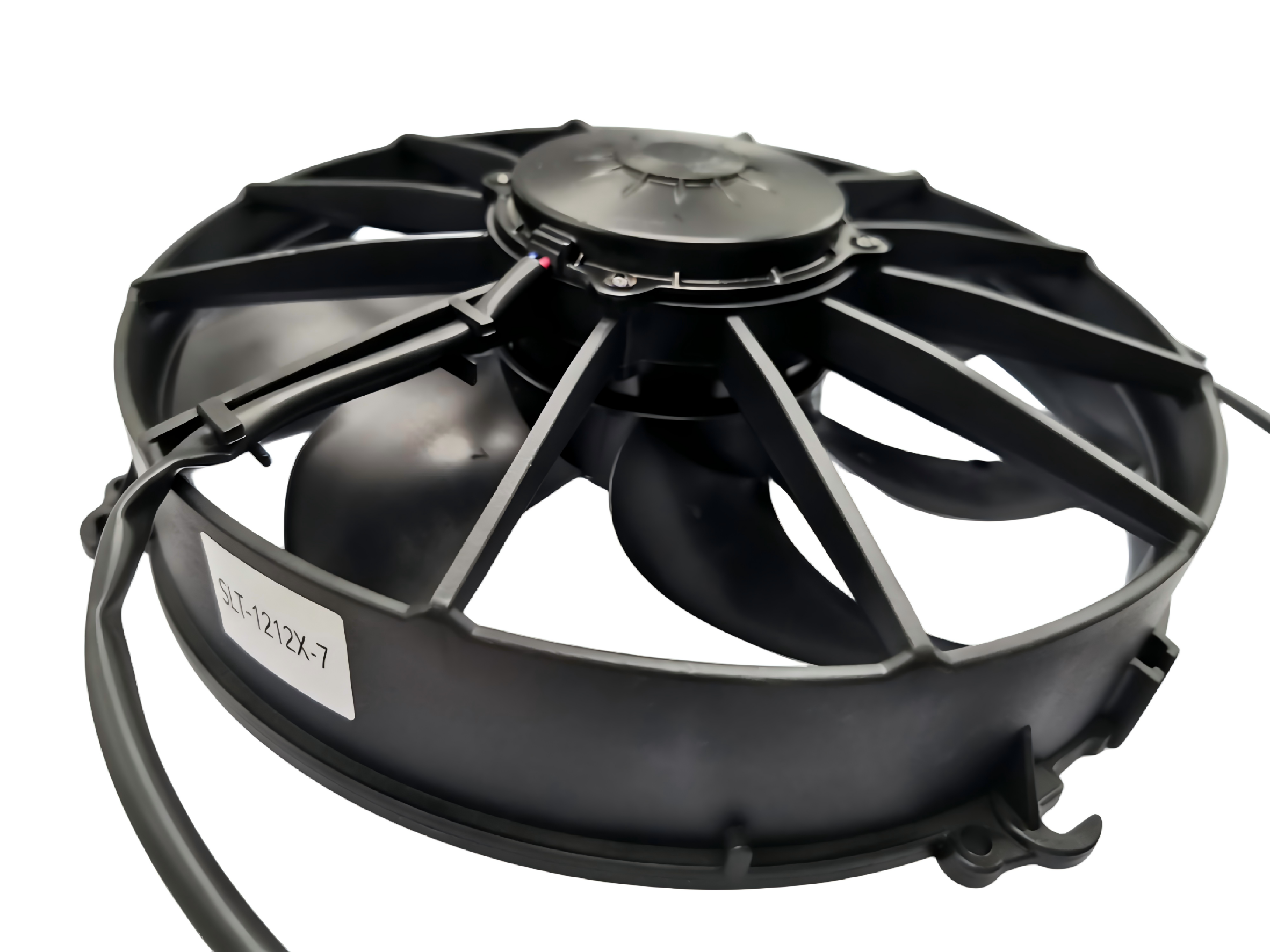

The SLT1212X-7 is a 12V brush-type axial fan of 12-inch (≈ 305 mm) diameter, specially designed to deliver strong airflow and static pressure in demanding cooling and ventilation systems. It is well suited for automotive, heavy machinery, refrigeration, and HVAC applications, offering a robust design, wide temperature range, and reliable performance.
SLT1212X-7
Sunlight
| Voltage: | |
|---|---|
| Quantity: | |
It is 12V & suction aiflow & 3000rpm & 2666m3/h & IP67
| Max Fan Speed | 3000rpm |
| Min Fan Speed | 1000rpm |
| Weight | 2.4KG |
| Operating supply voltage rang | 12V |
| Operating working temperature range | -40°C - 85°C |
| Storage temperature range |  -40°C - 100°C |
| Life time | up to 8000 hours depending on missing profile |
| Static presusure Pa | Airflow m3/h | Current A |
| 0 | 2666 | 16 |
| 20 | 2552 | 16.2 |
| 40 | 2446 | 16.4 |
| 60 | 2313 | 16.8 |
| 80 | 2188 | 17.1 |
| 100 | 2059 | 17.3 |
| 120 | 1928 | 17.5 |
| 140 | 1780 | 17.9 |
| 160 | 1610 | 18 |
| 180 | 1350 | 18.1 |
| 200 | 1080 | 18.3 |

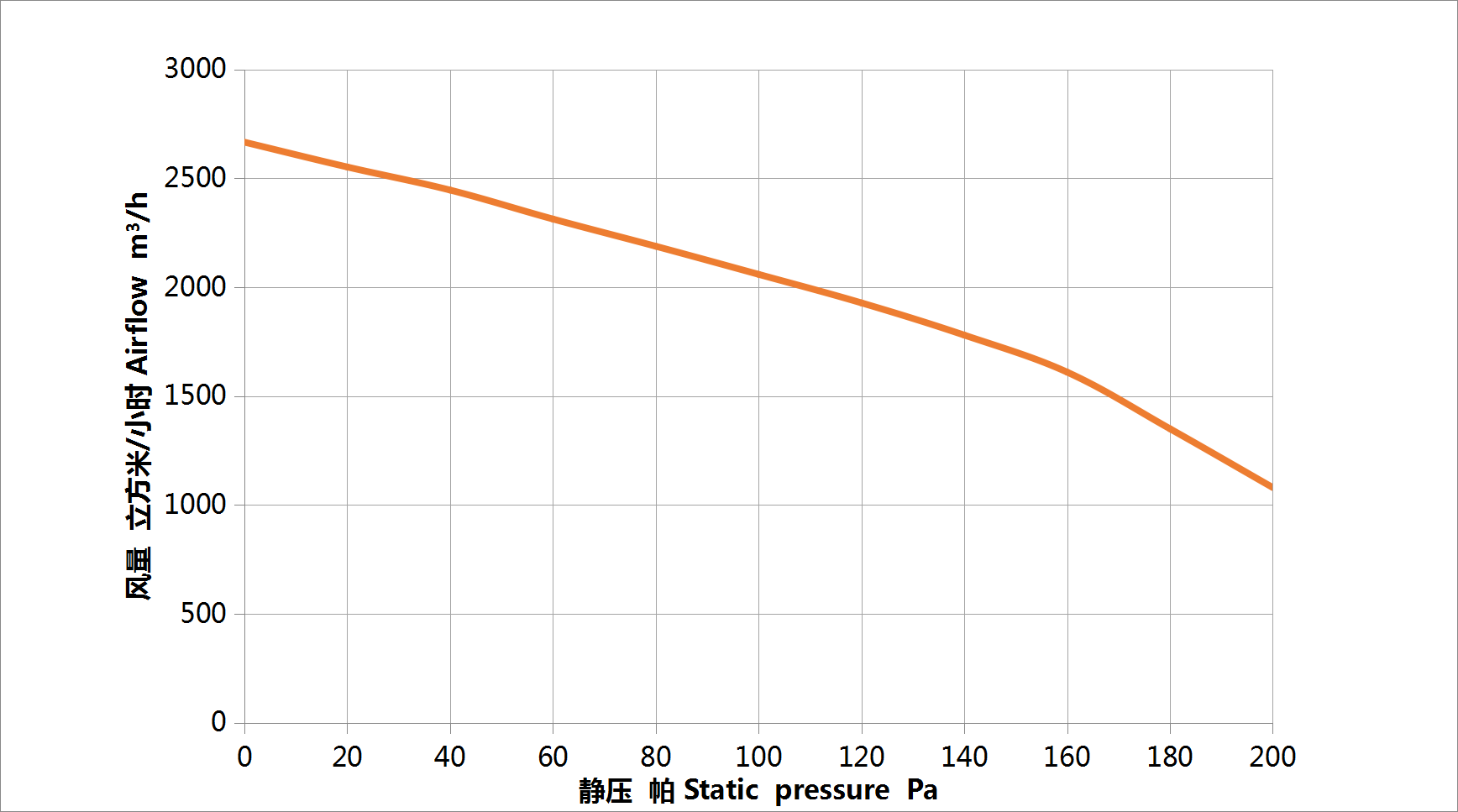

The orange line is Airflow
High Airflow & Static Pressure — up to 2666 m³/h at 0 Pa, maintaining performance under resistance
Wide Operating Temperature — stable operation from –40 °C to +85 °C
Durable Design — rated lifetime up to 8000 hours under standard conditions
IP67 Protection — sealed motor design for dust and water resistance
Compact & Balanced — weighs ~2.4 kg, precision-balanced rotor for low vibration
Certified & Quality Controlled — CE, EMC, IATF / TS16949 certifications ensure reliability
Customizable Options — adjustable voltage ranges, connector types, cable length available
The SLT1212X-7 is ideal for:
Automotive & Specialty Vehicles — car radiators, condenser cooling in buses, service vehicles
Construction & Heavy Equipment — loaders, excavators, utility vehicles
Refrigeration / HVAC Systems — condenser / evaporator cooling in mobile or stationary systems
Industrial Ventilation & Cooling — electronics, control cabinets, enclosures
Case Example: When installed behind a vehicle’s condenser module, the fan improved cooling efficiency under high ambient temperature by reducing coolant temperature by 4–6 °C during peak load runs.
Since 1990, Sunlight has specialized in manufacturing high-performance brushless fans and blowers. Certified with ISO9001 and IATF16949, our products meet CE, RoHS, and EMC standards. Widely applied in automotive, machinery, refrigeration and energy industries. Sunlight is committed to delivering quality, innovation, and reliable cooling solutions.
All fans undergo 100% testing before shipment, with customization and technical support available.
IATF I16949:2016 Certificate
IATF 16949:2016 Certificate
EMC Certificate
CE certificate
Sample Lead Time: 14days
Mass Production: 21days
MOQ: 2
Customization: Voltage, control mode, wiring, housing treatment available
Contact Us:
Sunny Li: +86-18806140118 / sunny@sunlightmotor.com
Alisa Chen: +86-18806140198 / sales3@czsunlight.com
Frances Zhang: +86-18806140168/ sales1@czsunlight.com
Vicky Li: +86-18806140098/ sunlight@sunlightmotor.com
Q1: Is this a brush-type or brushless fan?
A1: This is a brush-type DC axial fan (i.e. with brushes). It is not brushless. The FAQ or marketing sections should not confuse the two types.
Q2: Can the fan speed be controlled / modulated?
A2: Yes, the speed can be controlled via PWM or by reducing voltage within the permissible range (but do not exceed safe limits).
Q3: What is the actual noise level?
A3: The noise depends on speed, mounting, and system load. (If you have test data: “Typical noise is ~ XX dB(A) at 3000 RPM in free air.”) Balanced rotor design helps minimize noise.
Q4: Can I order custom wiring, connectors or cable lengths?
A4: Absolutely. We can adjust connector types, cable lengths, and wiring to suit your installation requirements.
Q5: What warranty and after-sales support do you offer?
A5: Standard warranty is 1 year. For bulk orders, extended warranties and maintenance support are available. We also provide technical guidance and support for installation issues.
