Brush DC Axial Fan 12V 7.5inch 200m3h with Pull/Push

Features Brushed DC Axial Fan 12V 7.5inch

Noise	75dB(A)
IP	IP54
Weight	1.4KG
Operating supply voltage rang	12V
Operating working temperature range	-40°C - 85°C
Storage temperature range	-40°C - 100°C
Life time	up to 2000 hours depending on missing profile

The drawing of Brushed DC Axial Fan 12V 7.5inch

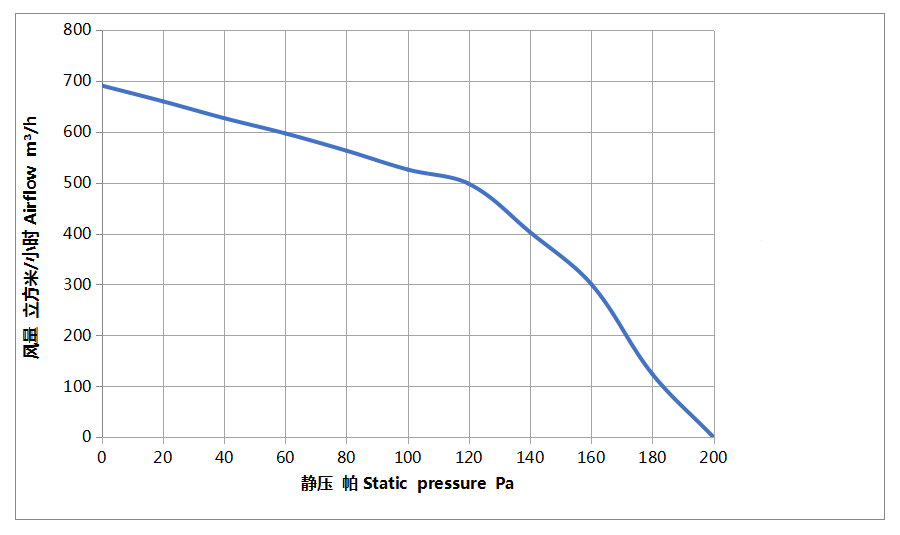

Performance Brushed DC Axial Fan 24V 7.5inch

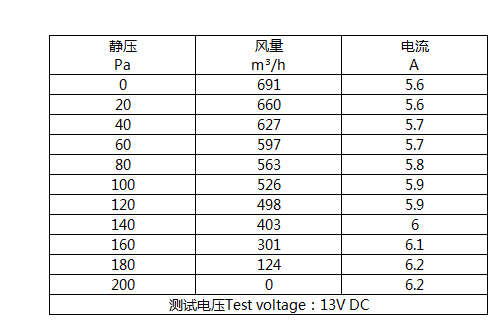

The model Brushed DC Axial Fan 12V 7.5inch

The blue line is Airflow

Advantages

1. Flexible Dual Direction (Pull/Push Design)

This fan can be easily configured for either pulling or pushing airflow, providing great flexibility for installation in different cooling systems.

2. Strong Airflow in Compact Size

Despite its 7.5-inch compact frame, it delivers up to 200 m³/h airflow, ensuring efficient cooling performance even in limited spaces.

3. Reliable Operation in Harsh Conditions

Built to withstand extreme temperatures from –40 °C to +85 °C and designed with IP54 protection, it performs reliably in dusty, humid, and outdoor environments.

4. Durable Brushed Motor

Equipped with a high-quality brush DC motor, this fan offers stable performance, long service life (over 2,000 hours), and easy maintenance.

5. Low Noise & Vibration

Precision-balanced blades and optimized motor design reduce operational noise and vibration, improving user comfort and overall system stability.

6. Easy Integration & Customization

Available with custom voltage, airflow, and connector options, this fan can be tailored to meet your specific cooling or installation requirements.

Application Brushed DC Axial Fan 12V 7.5inch

• Truck & bus cooling systems

• Construction machinery (excavators, loaders)

• Special vehicles (ambulances, refrigerated trucks)

• Engineering and forestry machinery

• HVAC and refrigeration units

• Power electronics / cabinet cooling

• Any equipment requiring robust forced convection in harsh environments

Certifications

EMC Certificate

CE certificate

The Experimental Project

Name1

Name2

Name3

Name4

Name5

Name1

Name2

Name3

Name4

Name5

Ordering Information

Sample Lead Time: 14days

Mass Production: 21days

MOQ: 2

Customization: Voltage, control mode, wiring, housing treatment available

Contact Us:

Sunny Li: +86-18806140118 / sunny@sunlightmotor.com

Alisa Chen: +86-18806140198 / sales3@czsunlight.com

Frances Zhang: +86-18806140168/ sales1@czsunlight.com

Vicky Li: +86-18806140098/ sunlight@sunlightmotor.com

FAQ

Q1: What is the difference between the pull and push versions of this fan?
A1: The pull version draws air through the radiator or heat exchanger, while the push version blows air across it. The same fan can be installed in either configuration depending on your cooling system design.

Q2: Can this 12V DC axial fan run continuously for long hours?
A2: Yes. The fan is designed for continuous operation and is tested for over 2,000 working hours under rated voltage and temperature conditions.

Q3: Does the fan come with waterproof protection?
A3: It features an IP54 protection rating, which provides protection against limited dust ingress and water splashes — ideal for outdoor or automotive environments.

Q4: Can I customize the connector or cable length?
A4: Yes. Connector type, wire length, and even fan speed can be customized to match your equipment specifications.

Q5: What power supply do I need for this fan?
A5: The fan operates on DC 12V power. Please ensure your power source can provide sufficient current according to the fan’s rated wattage.

Q6: How do I choose the right fan size for my equipment?
A6: It depends on your required airflow, installation space, and cooling target. Our engineering team can recommend the best fan model after receiving your system specifications.
