Brush Dc Fan 12V 10inch with 5 Blades 2000m3h

This 12V brushed DC fan features a 10-inch diameter and 5 aerodynamic blades, capable of delivering up to 2000 m³/h airflow. Engineered for durability and reliable cooling performance, the fan is suitable for demanding applications under wide temperature ranges (–40 °C to +85 °C), and offers an estimated life of 8,000 hours. It is compact, efficient, and designed to integrate easily into vehicle, machinery, or industrial cooling systems.

Model:
SLT1012X-5
Brand:
Sunlight

Voltage:	12V
Availability:

Quantity:



Inquire Add to Basket

Product Description

Features 12V 10inch DC Fan

Max Fan Speed	3000rpm
Min Fan Speed	1000rpm
Weight	2.2KG
Operating supply voltage rang	12V
Operating working temperature range	-40°C - 85°C
Storage temperature range	-40°C - 100°C
Life time	up to 8000 hours depending on missing profile

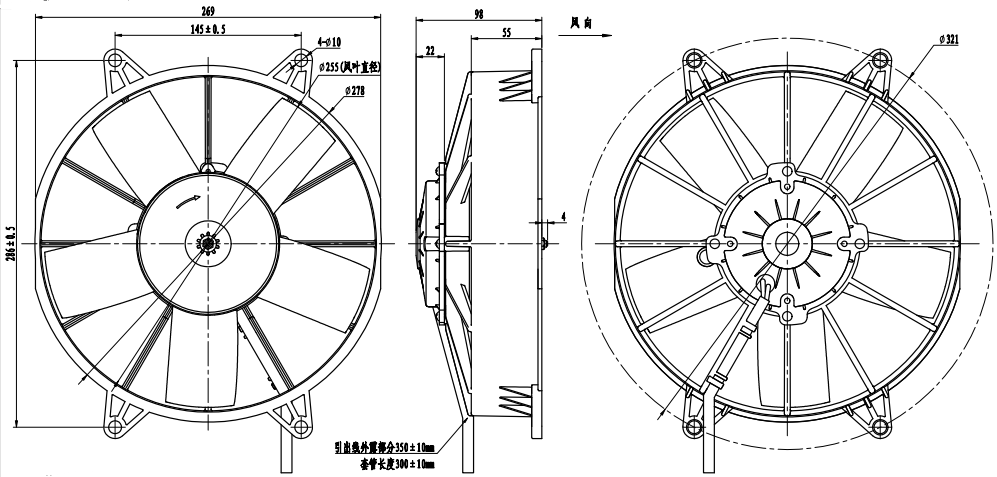

The drawing of brush axial fan diemension (mm) 12V 10inch

Advantages

High Airflow Performance: Efficient blade design ensures strong airflow (≈ 2000 m³/h).
Wide Temperature Operating Range: –40 °C to +85 °C, with storage up to –40 to +100 °C.
Long Service Life: Up to 8,000 operational hours under standard conditions.
Robust Construction: Built for stability and reliability under vibration and varying environmental conditions.
Customizable: Options for customization based on customer requirements (e.g., mounting, wire length).
Stand-alone Packing: Each unit individually boxed to ensure safe shipping.
