DC 12inch 305mm Brushless Axial 24V Fan - WBLF-1251-BS2350

Specification of Brushless axial fan WBLF-1251-BS2350

1,The motor black wire connect the positive,Brown wire connect the negative . clockwise rotation
2,Axial clearance: 0.25mm Max;
3,Pressure test,:660VAC 1S 5mA;
4,Protection:IP68
5,Insulation class:H
6,Insulation resistance:20MΩMIN(500VDC)
7,Operaing temperture:-40-85℃
8,Humidity:0-100°
9,Operaing life:25000 hours Min
10,Vibration :20ms 5G
11,Rated voltage:24VDC Voltage Range:16-32VDC
12,30A Insurance in controller
13,Lead length:500±20mm,A blace∅8 PVCtube length 450
14,Power line model:UL1015 12AWG
15,Weight Approx:3Kg

Features of Brushless axial fan WBLF-1251-BS2350

It is 24V & suction aiflow & 3300rpm & 3200m3/h & IP68 & PWM control

Max Fan Speed	3300rpm
Min Fan Speed	2000rpm
Weight	2.2KG
Operating supply voltage rang	16V -32V
Operating working temperature range	-40°C - 85°C
Storage temperature range	-40°C - 120°C
Life time	up to 40000 hours depending on missing profile
Time from 0 rpm to max speed	8 seconds
IP grade	IP68

The drawing of dimension (mm)  of Brushless axial fan WBLF-1251-BS2350

Airflow  of Brushless axial fan WBLF-1251-BS2350

The orange line is Current  &  The blue line is Airflow

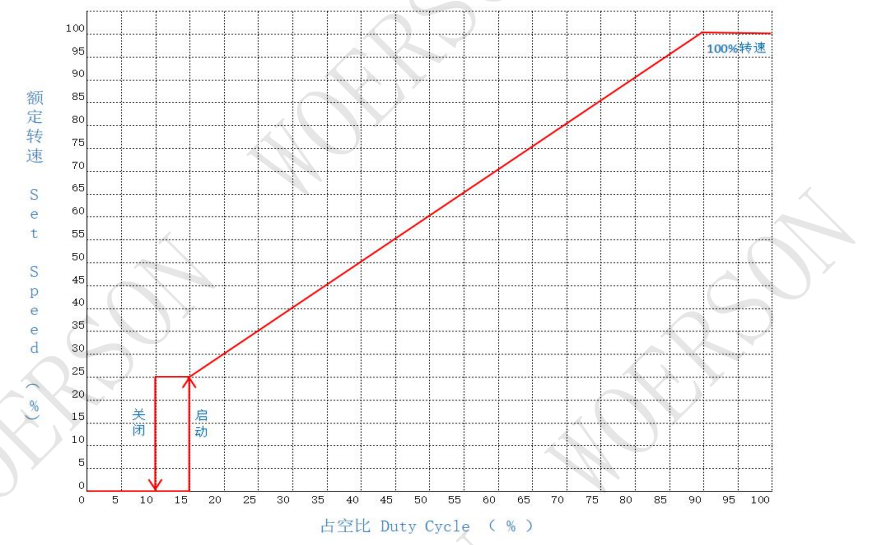

PWM control diagram of Brushless axial fan WBLF-1251-BS2350

Product Picture  of Brushless axial fan WBLF-1251-BS2350

Advantages

• Strong Suction Performance: ~3,200 m³/h airflow for effective cooling under load

• Long Working Life: Designed for ≥25,000 hours of operation under normal conditions

• Sealed & Protected (IP68): Resists dust and water ingress in harsh environments

• Wide Voltage Range: Operates stably from 16V to 32V

• Smooth PWM Control: Allows variable speed matching thermal demand

• Fast Startup: Reaches operational speed in ~8 seconds

• Easy Replacement: Compatible with mounting specs of similar SPAL models




Application

• Truck / bus cooling systems (condenser, radiator)

• New energy vehicle thermal management

• Heavy machinery and construction equipment

• Refrigerated transport and cold chain systems

• Retrofit / upgrade in existing cooling setups

Certifications

EMC Certificate

CE certificate

The Experimental Project :

Ordering Information

Sample Lead Time: 14days

Mass Production: 21days

MOQ: 2

Customization: Voltage, control mode, wiring, housing treatment available

Contact Us:

Sunny Li: +86-18806140118 / sunny@sunlightmotor.com

Alisa Chen: +86-18806140198 / sales3@czsunlight.com

Frances Zhang: +86-18806140168/ sales1@czsunlight.com

Vicky Li: +86-18806140098/ sunlight@sunlightmotor.com

FAQ:

Q: What direction does the fan rotate?
A: Clockwise when viewed from the motor side.

Q: Can it run on 12V?
A: No. It’s designed for 24V systems (16–32V range).

Q: What is its guaranteed lifespan?
A: At least 25,000 hours; can reach up to ~40,000 hours in optimal conditions.

Q: Can I control the speed?
A: Yes, it supports PWM for variable speed control.

Q: Is it suitable for wet / dusty use?
A: Yes, rated IP68. Still avoid direct high-pressure jets or immersion.

Q: How to confirm compatibility with my system?
A: Check physical dimensions, mounting pattern, airflow / pressure demands, and electrical specs before purchase.
