SLT1224X-7
Sunlight
| Voltage: | |
|---|---|
| Quantity: | |
| Max Fan Speed | 3000rpm |
| Min Fan Speed | 1000rpm |
| Weight | 2.4KG |
| Operating supply voltage rang | 24V |
| Operating working temperature range | -40°C - 85°C |
| Storage temperature range |  -40°C - 100°C |
| Life time | up to 8000 hours depending on missing profile |
| Static presusure Pa | Airflow m3/h | Current A |
| 0 | 2800 | 9.1 |
| 20 | 2700 | 9.4 |
| 40 | 2580 | 9.5 |
| 60 | 2450 | 9.7 |
| 80 | 2360 | 9.8 |
| 100 | 2230 | 9.8 |
| 120 | 2120 | 10 |
| 140 | 1970 | 10.1 |
| 160 | 1800 | 10.3 |
| 180 | 1640 | 10.5 |
| 200 | 1420 | 11 |

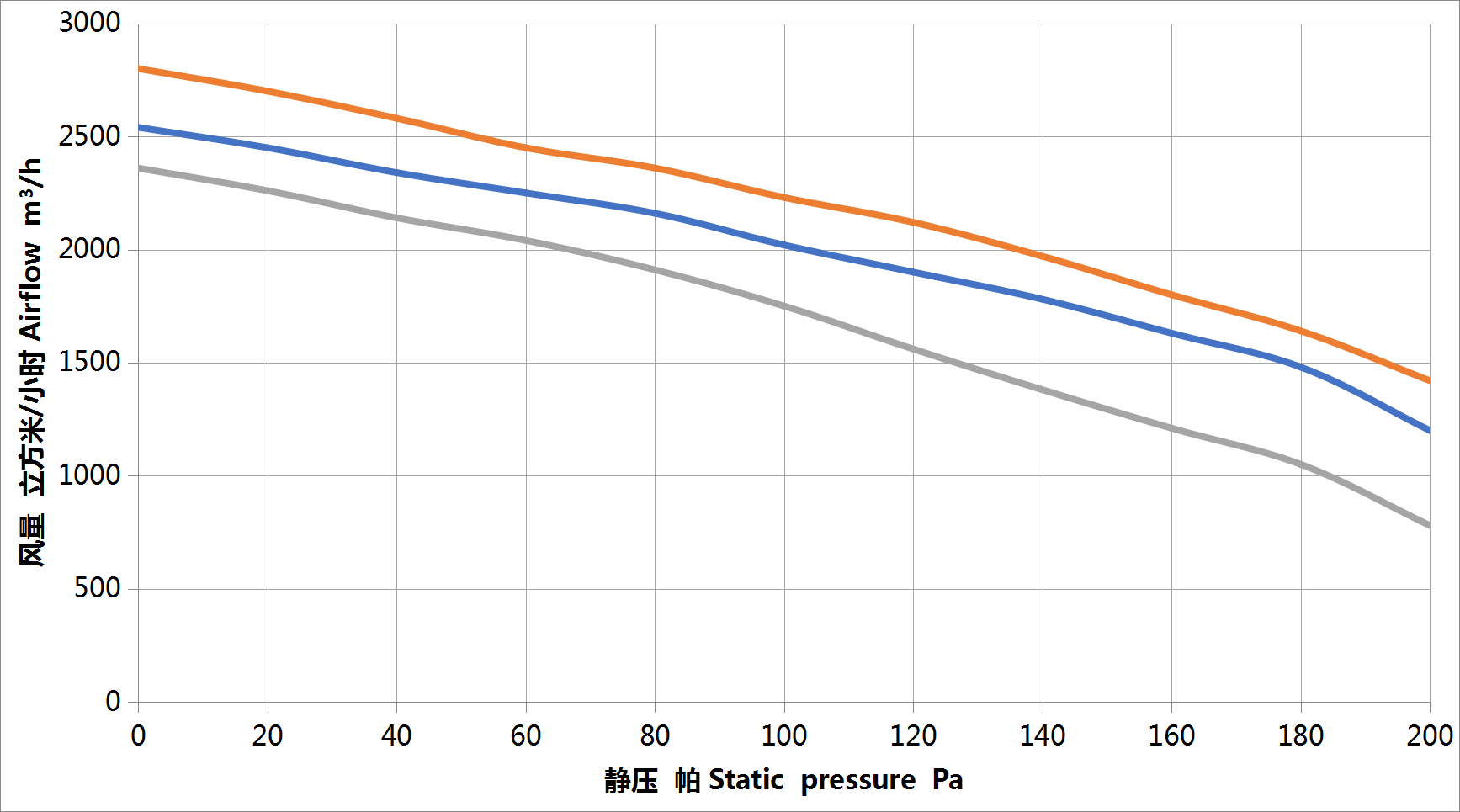

The orange line is Airflow
Strong Airflow Under Resistance – Delivers high flow even when facing backpressure, suitable for dense fin packs.
Wide Operating Temperature Tolerance – Functions reliably from –40 °C to +85 °C.
Durable Design & Long Life – Rated for up to 8000 hours of continuous use.
Precision Balance for Low Vibration – Minimizes noise and mechanical stress during operation.
Compact & Light Structure – Weighs approximately 2.4 kg, easy to integrate.
Certified Quality & Custom Options – Includes IATF, CE, EMC credentialing; supports custom wiring, connectors, and mounting adaptations.
The SLT1224X-7 is ideal for:
Vehicle Condenser / Radiator Systems – especially in buses, trucks, and new energy vehicles
Industrial HVAC / Refrigeration Units – to improve airflow through heat exchangers
Heavy Machinery Cooling Systems – where 24V power is available
OEM Cooling Modules / Thermal Management Solutions
Special Vehicles & Equipment – e.g. rescue vehicles, mobile cooling systems
Use Case Example: In a bus AC condenser system, using this puller fan behind the condenser resulted in lower discharge temperature under heavy load and better performance stability in high ambients.
IATF I16949:2016 Certificate
IATF 16949:2016 Certificate
EMC Certificate
CE certificate
Sample Lead Time: 14days
Mass Production: 21days
MOQ: 2
Customization: Voltage, control mode, wiring, housing treatment available
Contact Us:
Sunny Li: +86-18806140118 / sunny@sunlightmotor.com
Alisa Chen: +86-18806140198 / sales3@czsunlight.com
Frances Zhang: +86-18806140168/ sales1@czsunlight.com
Vicky Li: +86-18806140098/ sunlight@sunlightmotor.com
Q1: What applications is this 24V brush axial fan suitable for?
A1: This fan is ideal for cooling radiators, condensers, EV battery systems, and air conditioning units in trucks, buses, and construction vehicles.
Q2: Can this fan operate under high humidity or dusty conditions?
A2: Yes. The motor is sealed and designed to perform reliably in humid or dusty environments. For extreme conditions, IP-rated versions are available.
Q3: What is the rated speed and airflow of this fan?
A3: The fan runs at approximately 3000 RPM and delivers up to 2800 m³/h airflow at 24V DC, ensuring strong and stable cooling performance.
Q4: Does the fan include reverse polarity protection?
A4: The fan should always be connected with correct polarity. However, reverse polarity protection can be added upon request for custom orders.
Q5: Can the fan be customized for special installation needs?
A5: Yes. We offer customization for mounting brackets, connectors, wire length, and airflow direction (puller or pusher type) to fit your system requirements.
