WBLF-1261-BS7800
Sunlight
| Voltage: | |
|---|---|
| Quantity: | |
Product parameters
| Rated voltage | DC 24V |
| Voltage range | DC18.0V-DC32.0V |
| Rated current | ＜32A |

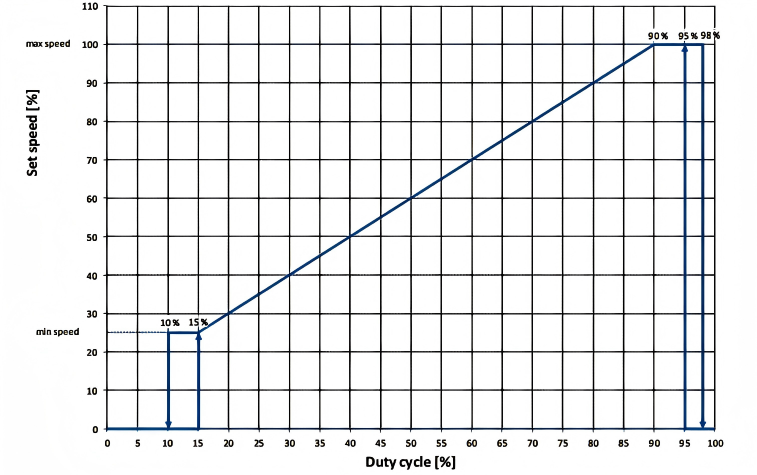

| PWM/E frequency range | 100Hz-1000Hz（recommended 400Hz-600Hz) |

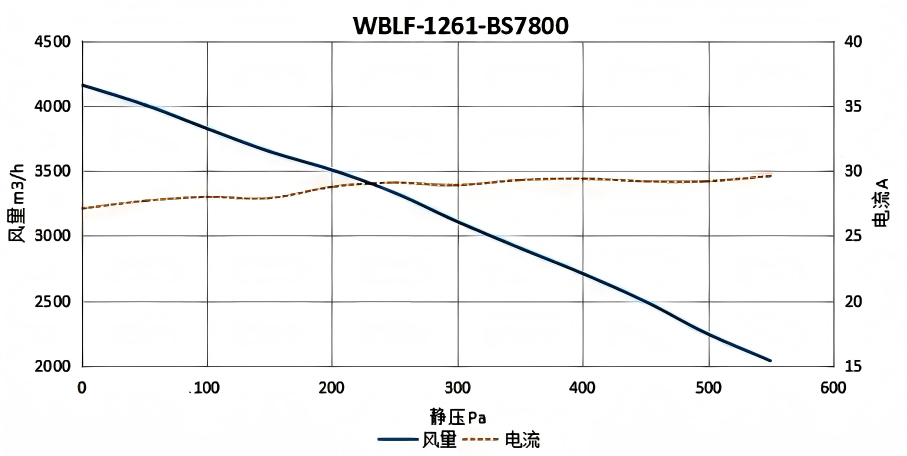

| Maximum airflow | 4200m³/h±200m³/h @ OPa |
| Speed | 4750rpm±150rpm |
| Rated power | 800W |
| Noise | ≤86dB（A）@1m（measured at fan side） |
| Fan life | ≥25000h |
| Ingress protection | IP68 |
| Operating temperature | -40℃～+85℃ |
| Humidity | Max 95% |
| Insulation resistance | ≥20MΩ(room temperature) |
| Vibration | 20ms 5g |
| Net weight | 2.8kg |
Specification
Optimized for High-Demand Systems
Efficiently manages heat in high-power environments without adding complexity.
Robust Brushless Design
Minimizes wear and extends operational life under continuous load conditions.
Compact Yet Powerful
12-inch form factor delivers 800W performance while fitting into constrained system layouts.
Versatile Integration
Compatible with mobile machinery, industrial platforms, and energy infrastructure.
Consistent Airflow Across Conditions
Maintains stable cooling even under voltage variations or changing operating demands.
Enhanced System Reliability
Supports thermal stability for critical equipment, reducing downtime and maintenance needs.
The WBLF-1261-BS7800 excels in managing high heat loads across diverse environments. Its 12-inch, 24V 800W brushless design ensures consistent airflow for thermal-sensitive equipment, from mobile machinery and industrial platforms to energy distribution units and high-density electronic assemblies. Ideal for engineers and system integrators seeking reliable, scalable cooling solutions in demanding operational conditions.
Flexible Mounting Options
Supports versatile installation in constrained spaces, from mobile machinery to industrial racks.
Voltage Stability Check
Ensure a stable 24V power supply to maintain consistent airflow and prevent motor stress.
Optimal Orientation
Position for unobstructed intake and exhaust to maximize thermal performance and system efficiency.
Routine Clean & Inspection
Keep fan surfaces and surroundings free from dust or debris for peak efficiency and extended lifespan.
Integration With Control Systems
Compatible with monitoring or automation setups for adaptive speed control and energy savings.
Environmental Considerations
Designed for fluctuating temperatures and vibration-prone environments common in heavy-duty equipment.
Since 1990, Sunlight has specialized in manufacturing high-performance brushless fans and blowers. Certified with ISO9001 and IATF16949, our products meet CE, RoHS, and EMC standards. Widely applied in automotive, machinery, refrigeration and energy industries. Sunlight is committed to delivering quality, innovation, and reliable cooling solutions.
All fans undergo 100% testing before shipment, with customization and technical support available.
Sample Lead Time: 14days
Mass Production: 21days
MOQ: 2
Customization: Voltage, control mode, wiring, housing treatment available
Contact Us:
Sunny Li: +86-18806140118 / sunny@sunlightmotor.com
Alisa Chen: +86-18806140198 / sales3@czsunlight.com
Frances Zhang: +86-18806140168/ sales1@czsunlight.com
Vicky Li: +86-18806140098/ sunlight@sunlightmotor.com
1. What makes the WBLF-1261-BS7800 brushless fan ideal for high-demand systems?
Its 12-inch, 24V 800W design delivers consistent airflow, ensuring thermal stability for complex and energy-intensive equipment.
2. Can this fan operate reliably under varying voltage and load conditions?
Yes, it maintains stable performance under fluctuating electrical input, reducing overheating risks and extending system lifespan.
3. How adaptable is this fan for diverse installation environments?
Engineered for versatile mounting, it fits mobile machinery, industrial frameworks, and energy distribution units with ease.
4. Does it support integration with automated cooling or monitoring systems?
Absolutely, its brushless motor allows adaptive speed control and remote monitoring for enhanced efficiency and safety.
5. How does this fan help reduce maintenance needs?
The durable brushless design minimizes wear, and optimized airflow prevents heat buildup, lowering the frequency of service interventions.
6. Is this fan suitable for new and evolving industrial applications?
Yes, it’s built to handle demanding conditions, from electrified vehicles and industrial platforms to advanced energy infrastructure.
