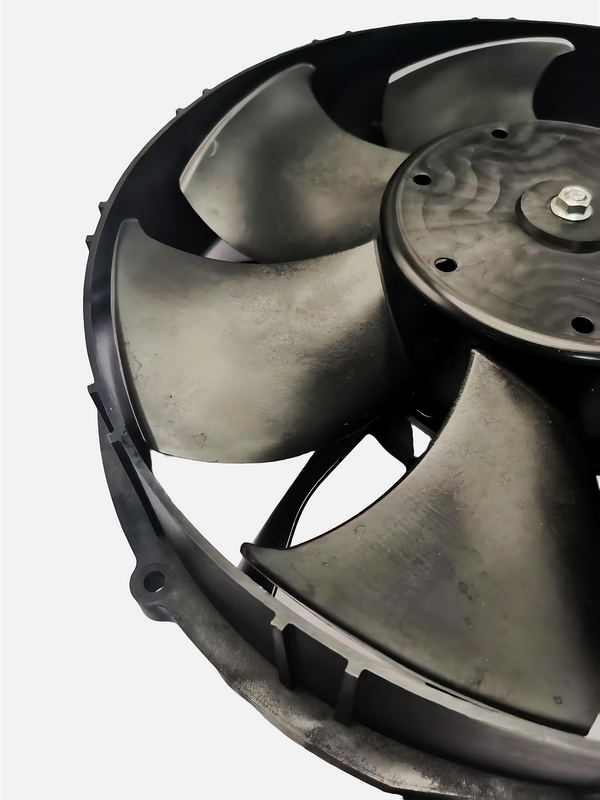

WBLF-1011-BS6300
Sunlight
| Quantity: | |
|---|---|
Product parameters
| Rated Voltage | DC24V |
| Rated Current | 15A±1A @ 350Pa |

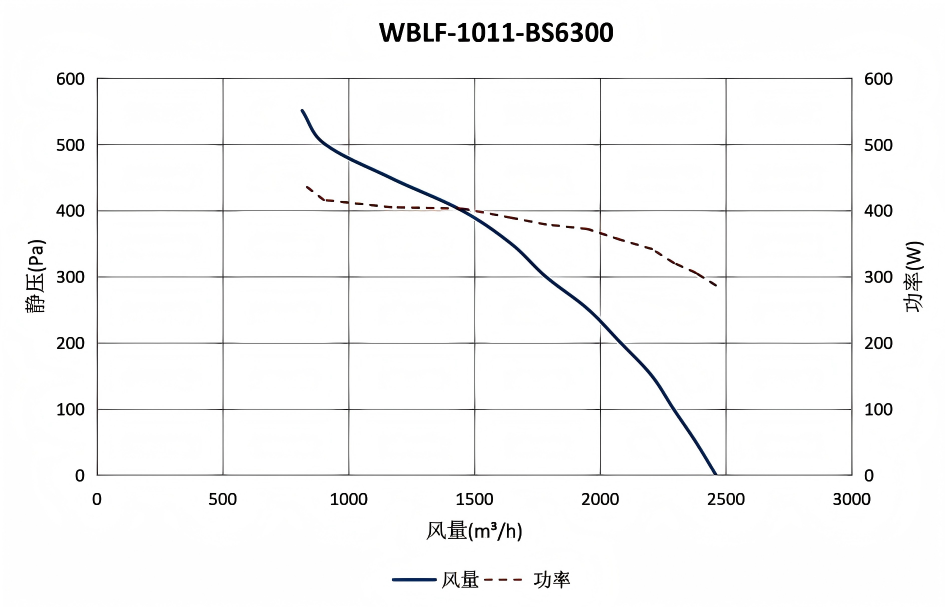

| Maximum Air Volume | 2450m³/h±150m³/h @ 0Pa |
| Rated Rotational Speed | 4200rpm±150rpm |
| Noise | ≤78dB(A) @ 1m (Tested at Fan Side) |
| Fan Service Life | ≥25000h |
| IP Rating | IP68 |
| Operating Temperature | -40℃～+85℃ |
| Humidity | Max. 95% |
| Insulation Resistance | ≥20MΩ (Normal Temperature) |
| Net Weight | 2.0kg |

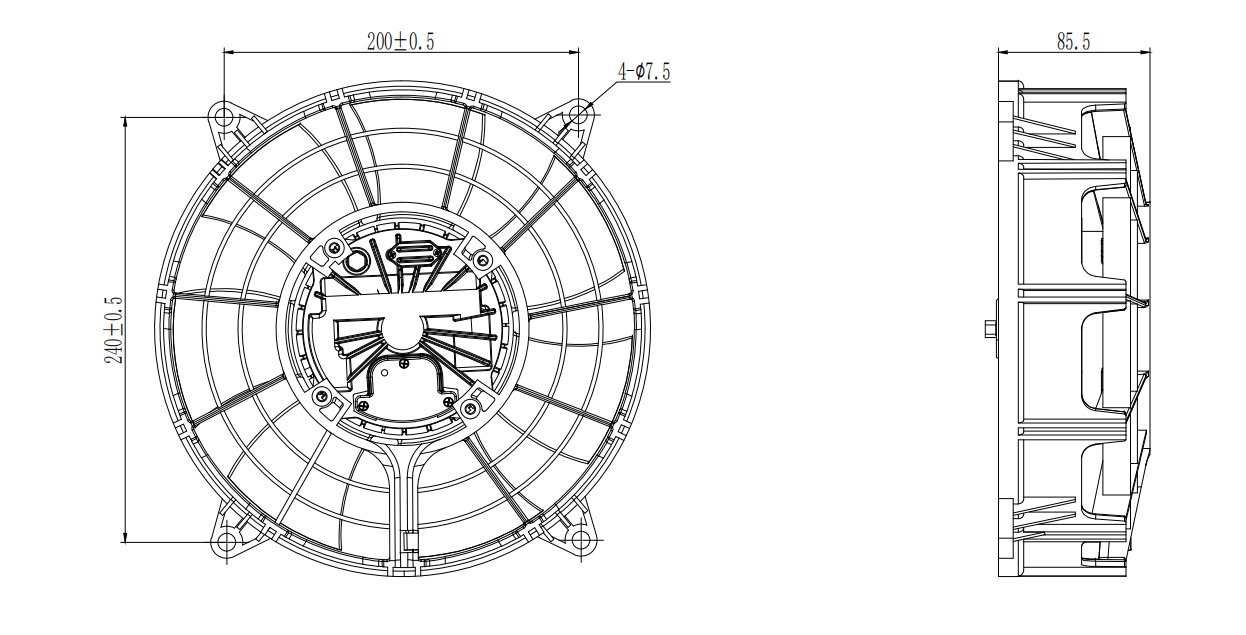

Specification
Built for High-Duty Cycles
Designed to run long hours under fluctuating loads, ideal for equipment that cannot afford cooling interruptions.
Compact Power Density
10-inch size delivers strong airflow at 24V 300W, helping engineers save space without sacrificing thermal performance.
Adaptive to Harsh Environments
Performs consistently in vibration-prone and outdoor systems such as engineering vehicles and charging infrastructure.
Lower Maintenance, Longer Service Life
Brushless structure reduces wear points, minimizing downtime and total operating cost over the lifecycle.
Easy System Integration
Well-suited for OEM platforms requiring flexible mounting and dependable airflow across diverse applications.
The WBLF-1011-BS6300 is used in equipment where consistent airflow is critical to system reliability and thermal balance. It supports cooling in mobile platforms, high-power electrical assemblies, and enclosed installations operating under continuous or peak-load conditions.
This fan is widely adopted in engineering vehicles, commercial transportation systems, EV charging infrastructure, energy cabinets, and industrial control units. Its design allows it to perform steadily in environments exposed to vibration, temperature variation, and long operating cycles, making it suitable for both stationary and mobile cooling solutions.
Plan airflow before mounting
Evaluate the heat source location and airflow path first to ensure the fan works with, not against, the system’s natural ventilation design.
Secure mounting for dynamic systems
Use vibration-resistant fasteners when installed in mobile or high-motion equipment to maintain stable operation over long service periods.
Allow adequate intake and exhaust space
Keep clearances around the fan to prevent airflow restriction and maximize cooling efficiency in compact enclosures.
Match power supply to operating load
Ensure a stable 24V input to support consistent performance, especially in systems with fluctuating electrical demand.
Regular inspection in high-duty environments
Periodic checks for dust buildup or obstruction help maintain airflow efficiency in long-running or outdoor installations.
Optimize placement for heat-sensitive components
Position the fan where airflow directly benefits critical modules such as power electronics, control units, or converters.
Since 1990, Sunlight has specialized in manufacturing high-performance brushless fans and blowers. Certified with ISO9001 and IATF16949, our products meet CE, RoHS, and EMC standards. Widely applied in automotive, machinery, refrigeration and energy industries. Sunlight is committed to delivering quality, innovation, and reliable cooling solutions.
All fans undergo 100% testing before shipment, with customization and technical support available.
Sample Lead Time: 14days
Mass Production: 21days
MOQ: 2
Customization: Voltage, control mode, wiring, housing treatment available
Contact Us:
Sunny Li: +86-18806140118 / sunny@sunlightmotor.com
Alisa Chen: +86-18806140198 / sales3@czsunlight.com
Frances Zhang: +86-18806140168/ sales1@czsunlight.com
Vicky Li: +86-18806140098/ sunlight@sunlightmotor.com
1. What types of systems is the WBLF-1011-BS6300 designed for?
It is suited for high-load systems that require continuous airflow, including mobile equipment, power electronics, and enclosed industrial installations.
2. Can this brushless fan handle long operating hours?
Yes. The brushless structure supports extended duty cycles, making it suitable for applications where cooling must run for long periods without interruption.
3. Is the fan suitable for outdoor or vibration-prone environments?
Its design allows stable operation in demanding conditions such as moving vehicles, infrastructure equipment, and installations exposed to mechanical stress.
4. How does this fan support high-power thermal management?
With a 24V 300W output, it delivers concentrated airflow that helps remove heat efficiently from compact, high-density systems.
5. Is the WBLF-1011-BS6300 easy to integrate into existing designs?
The fan supports flexible mounting and is compatible with various system layouts, simplifying integration for OEM and system integrators.
