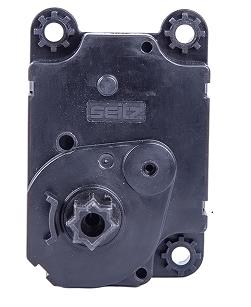

Automobile Actuator 603646A

Running in vehicle HVAC system to switch between recirculated and fresh air, and regulate in-cabin temperture and airflow direction as well. Manage optimal airflow directions via infinite variable speed control.

  • 603646A

  • Sunlight

  • 603646A

  • DC brush

  • 24 VDC nominal(18 VDC to 32VDC allowable operating range)

  • 0.4N.m

  • 1.67±0.2rpm

  • ≤0.1A

  • customized

  • less than 43 dB at 10cm

  • -40℃ to 85℃

  • 5 to 95% RH non-condensing

Availability:
Quantity:
Inquire Add to Basket

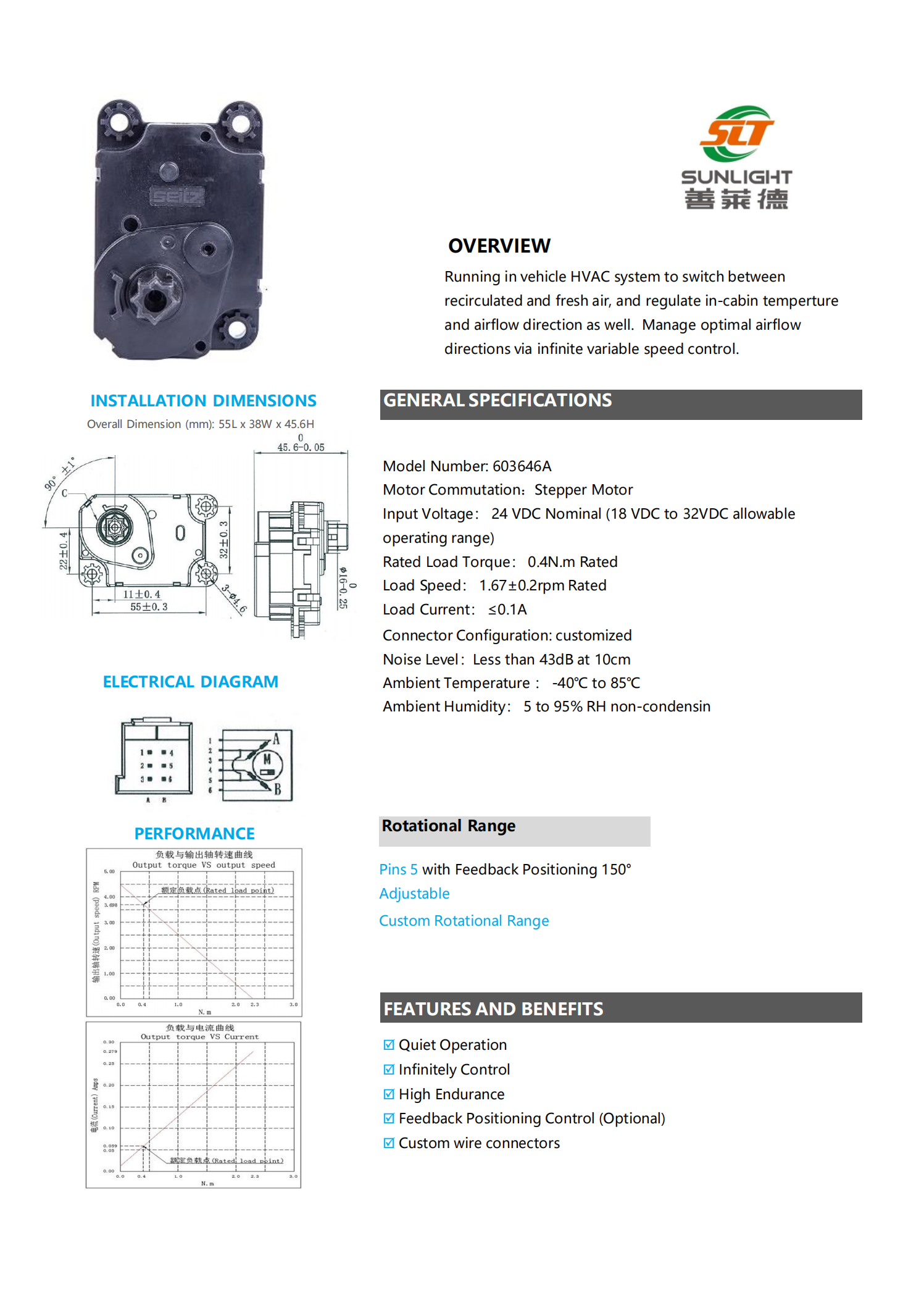

White_paper_EN_Actuator_&_valve_2024_catalogue(1)(1)_06
