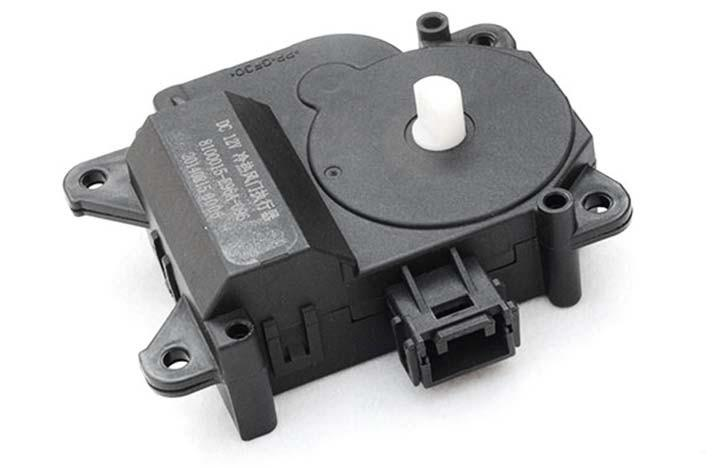

Automobile Actuator 81000-E96A-096

Running in vehicle HVAC system to switch between recirculated and fresh air, and regulate in-cabin temperture and airflow direction as well. Manage optimal airflow directions via infinite variable speed control.

  • 81000-E96A-096

  • Sunlight

  • 81000-E96A-096

  • DC brush

  • 12 VDC nominal(9 VDC to 16VDC allowable operating range)

  • 0.4N.m

  • 3.5±1.5rpm

  • ≤0.2A

  • ≥1.1N.m

  • ≤0.5A

  • Sleeve YAKAZI 7283-5830, Connector 316836-1

  • less than 45 dB at 10cm

  • -40℃ to 85℃

  • 5 to 95% RH non-condensing

Availability:
Quantity:
Inquire Add to Basket

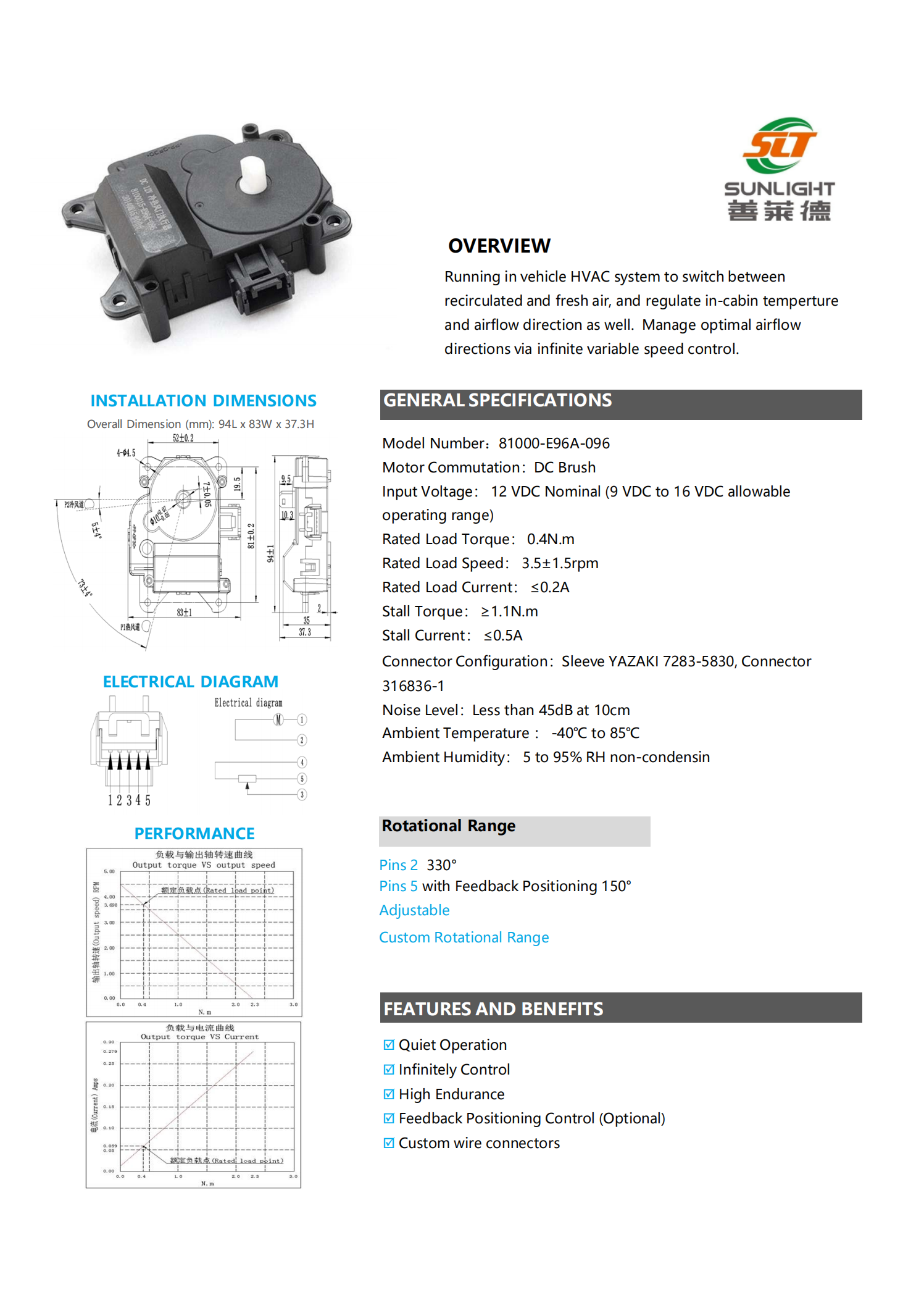

White_paper_EN_Actuator_&_valve_2024_catalogue(1)(1)_03
