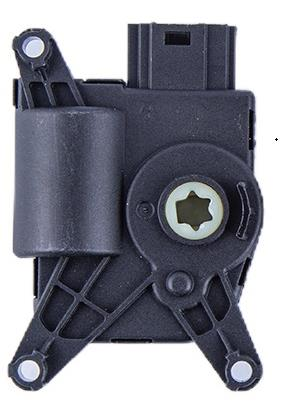

Automobile Actuator YP12C300420

Running in vehicle HVAC system to switch between recirculated and fresh air, and regulate in-cabin temperture and airflow direction as well. Manage optimal airflow directions via infinite variable speed control.

  • YP12C300420

  • Sunlight

  • YP12C300420

  • DC brush

  • 12 VDC nominal(9 VDC to 16VDC allowable operating range)

  • 0.4N.m

  • 3.5±1.5rpm

  • ≤0.2A

  • ≥0.9N.m

  • ≤0.4A

  • 1355082-1(AMP)

  • less than 45 dB at 10cm

  • -40℃ to 85℃

  • 5 to 95% RH non-condensing
