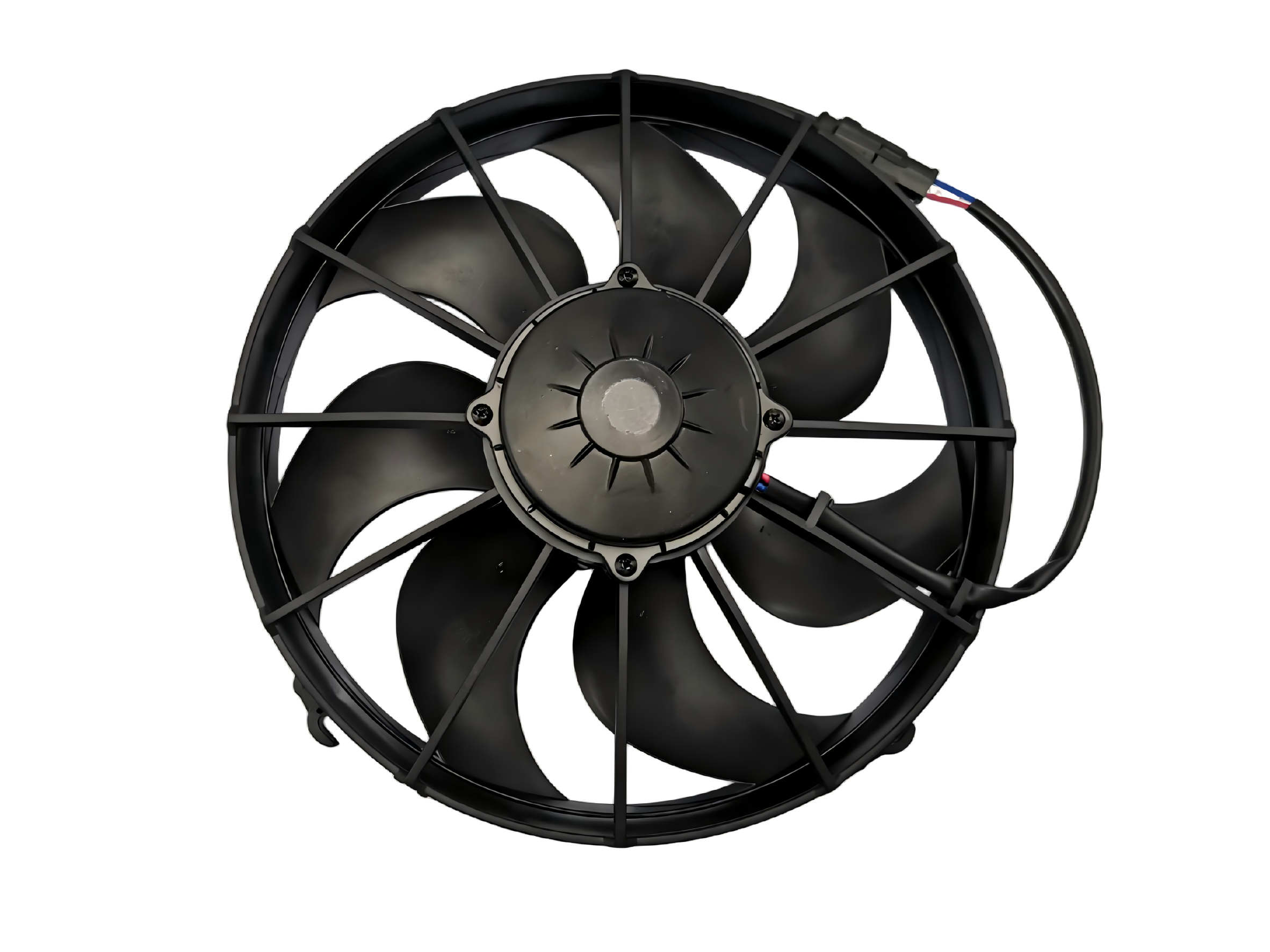

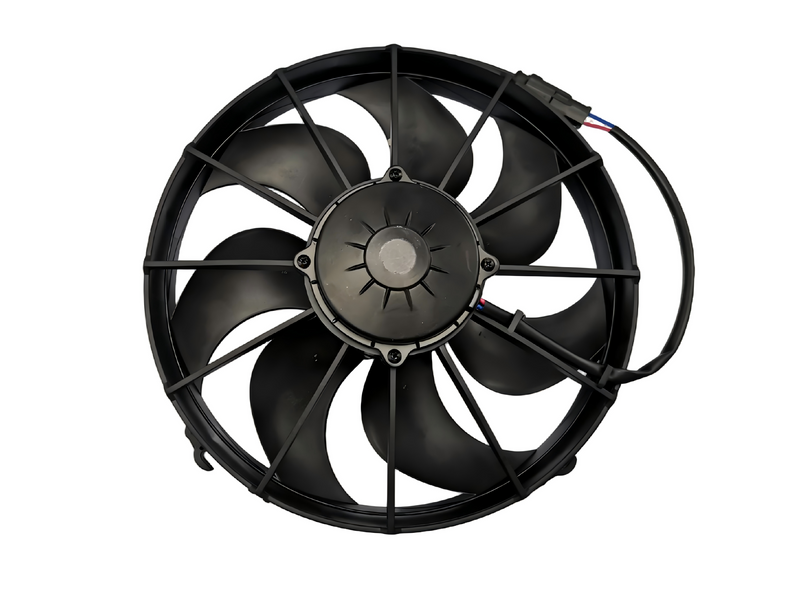

The SLT1224C-7 is a rugged 24V brushed DC axial fan with a 12-inch (≈ 305 mm) diameter, engineered for demanding cooling environments. With strong airflow, robust design, and compatibility with 24V electrical systems, it is ideal for automotive, industrial, HVAC condenser / radiator systems where large-volume air movement is needed.
SLT1224C-7
Sunlight
| Voltage: | |
|---|---|
| Quantity: | |
It is 24V & pull aiflow & 3000rpm & 2774m3/h & IP67
| Max Fan Speed | 3000rpm |
| Min Fan Speed | 1000rpm |
| Weight | 2.4KG |
| Operating supply voltage rang | 24V |
| Operating working temperature range | -40°C - 85°C |
| Storage temperature range |  -40°C - 100°C |
| Life time | up to 8000 hours depending on missing profile |
| Static presusure Pa | Airflow m3/h | Current A |
| 0 | 2774 | 8 |
| 20 | 2659 | 8.2 |
| 40 | 2541 | 8.2 |
| 60 | 2419 | 8.3 |
| 80 | 2266 | 8.3 |
| 100 | 2002 | 8.5 |
| 120 | 1798 | 8.6 |
| 140 | 1627 | 8.6 |
| 160 | 1383 | 8.8 |
| 180 | 1040 | 9.1 |
| 200 | 750 | 9.3 |

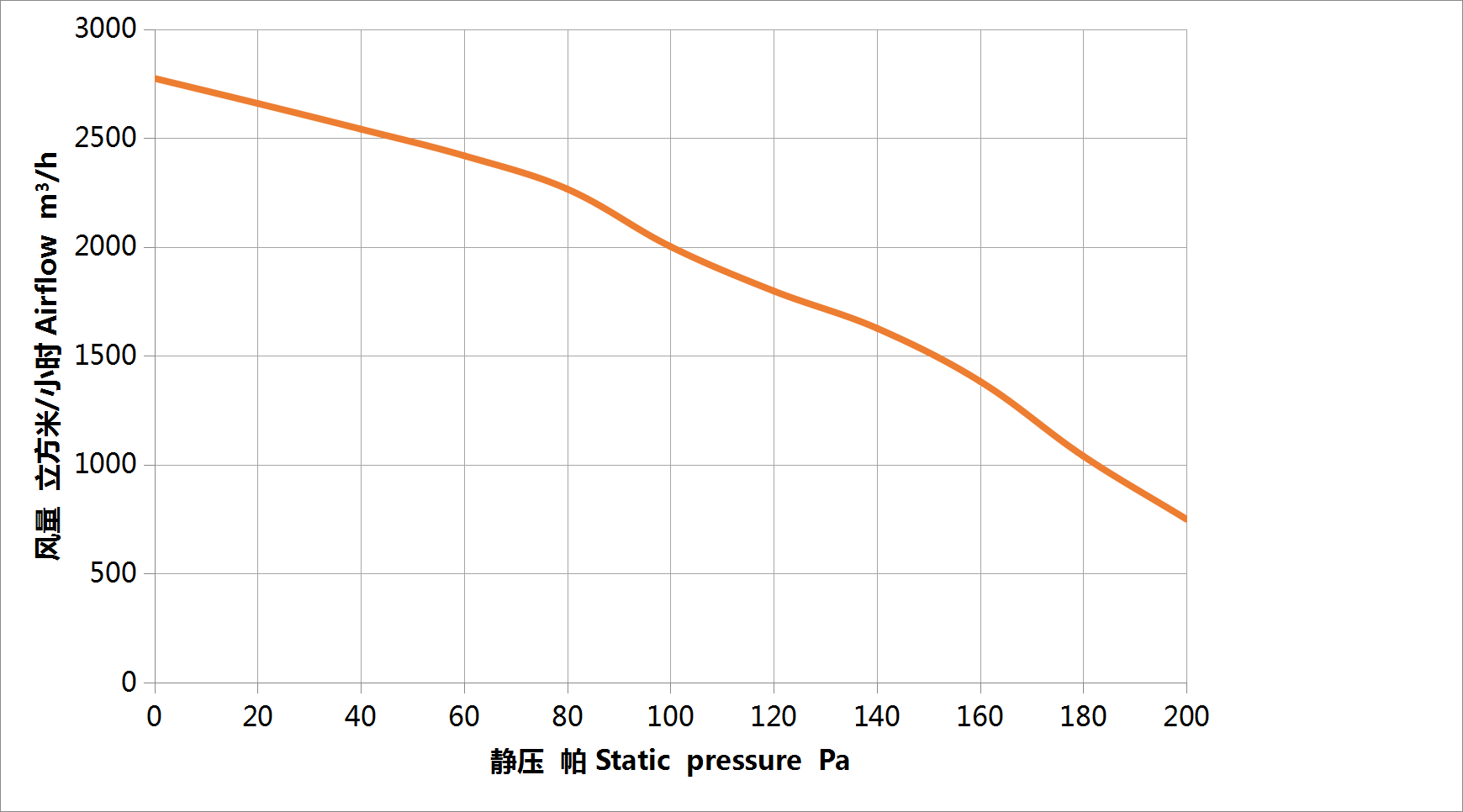

The orange line is Airflow
High Airflow Performance — designed to push large volumes of air under load for efficient heat transfer
Robust Build & Durability — brush motor architecture ensures reliable operation under stress
Wide Temperature Capability — built to withstand harsh environments (low and high temp)
Stable Operation & Low Vibration — precise balancing minimizes noise and mechanical wear
Easy Integration — standardized mounting and wiring for straightforward adoption
Optional Customization — supports variations in wiring, connectors, mounting brackets
Quality and Testing Assurance — factory-tested and quality-controlled to ensure consistency
This 24V 12″ brush axial fan is well suited for:
Heavy-duty automotive / truck / bus condenser and radiator systems
Industrial HVAC / chillers where large airflow is needed
Agricultural / construction machinery cooling systems operating on 24V systems
Refrigeration / freezer units in trailers or remote installations
Custom cooling modules / enclosures requiring robust air movement
IATF I16949:2016 Certificate
IATF 16949:2016 Certificate
EMC Certificate
CE certificate
Sample Lead Time: 14days
Mass Production: 21days
MOQ: 2
Customization: Voltage, control mode, wiring, housing treatment available
Contact Us:
Sunny Li: +86-18806140118 / sunny@sunlightmotor.com
Alisa Chen: +86-18806140198 / sales3@czsunlight.com
Frances Zhang: +86-18806140168/ sales1@czsunlight.com
Vicky Li: +86-18806140098/ sunlight@sunlightmotor.com
Q1: What makes this 24V brush axial fan suitable for automotive and industrial use?
A1: The fan features a durable brushed motor and high-efficiency blade design, providing strong and stable airflow even under high temperature or continuous operation, which is ideal for vehicles and heavy-duty cooling systems.
Q2: Can the fan be mounted both as a puller and a pusher?
A2: Yes. This model can be configured as either a puller or a pusher by reversing the polarity and adjusting the mounting direction, depending on your cooling system layout.
Q3: Does this fan have any waterproof protection?
A3: The standard version offers moisture and dust resistance suitable for normal outdoor operation. For higher protection, optional IP67-rated designs can be supplied upon request.

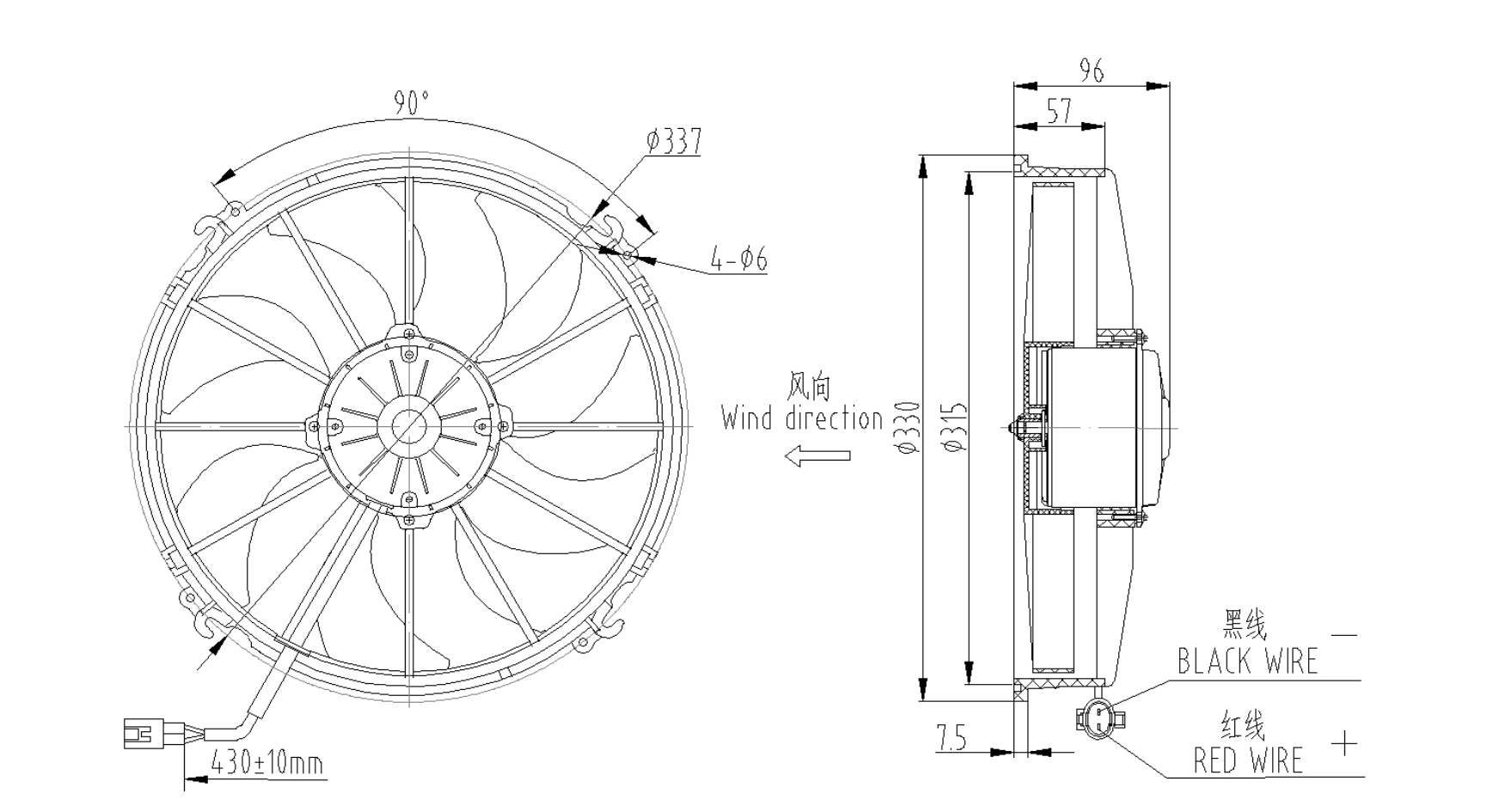

Q4: What are the electrical connection details?
A4: The fan typically uses two wires — red for positive (+) and black for negative (–). It’s important to ensure correct polarity during installation to avoid motor damage.
Q5: Can I order this fan with customized specifications?
A5: Yes. Voltage, wiring harness, connector type, airflow direction, and even fan frame materials can be customized to meet specific application requirements.
