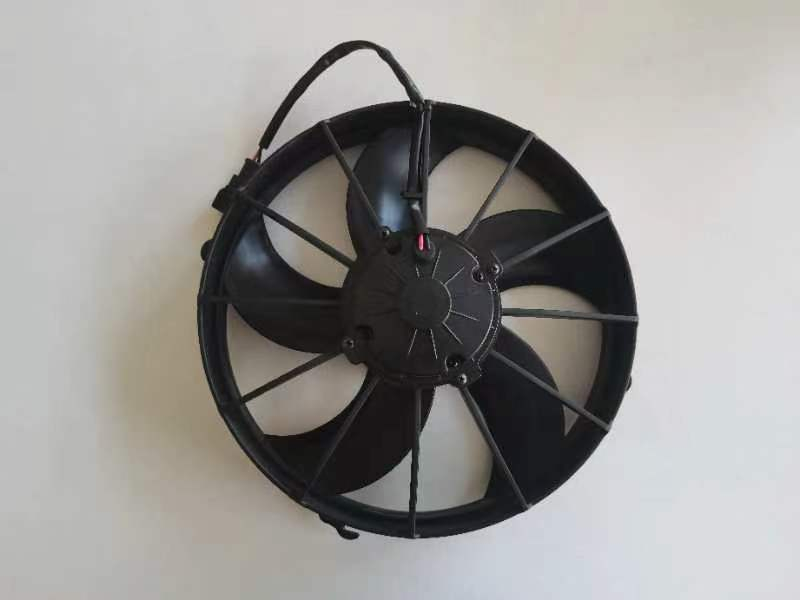

SLT1212X-5C
Sunlight
| Voltage: | |
|---|---|
| Quantity: | |
It is 12V & suction aiflow & 3000rpm & 2360m3/h & IP67
| Max Fan Speed | 3000rpm |
| Min Fan Speed | 1000rpm |
| Weight | 2.4KG |
| Operating supply voltage range | 12V |
| Operating working temperature range | -40°C - 85°C |
| Storage temperature range | -40°C - 100°C |
| Life time | up to 8000 hours depending on mission profile |
Static presusure | Airflow | Current |
0 | 2360 | 11.3 |
20 | 2260 | 11.5 |
40 | 2140 | 11.9 |
60 | 2040 | 12.1 |
80 | 1910 | 12.5 |
100 | 1750 | 12.6 |
120 | 1560 | 12.9 |
140 | 1380 | 13 |
160 | 1210 | 13.5 |
180 | 1050 | 13.9 |
200 | 780 | 14.2 |
5-Blade Design for Enhanced Airflow — optimized blade geometry improves static pressure and airflow balance.
High Power Rating (140W) — drives stronger air movement in challenging conditions.
Wide Operating Range — stable performance from –40 °C to +85 °C.
Long Service Life — designed for durability under continuous use.
Sealed / Protected Motor — to resist dust and moisture ingress .
Balanced & Low Vibration — precise dynamic balancing for quieter operation.
Certification & Quality Assurance — built under quality controls, with certification support.
Customization Available — tailor voltage tolerance, wiring, connectors, etc.
The SLT1212X-5C is well suited for:
Automotive & Specialty Vehicles — radiator / condenser cooling in trucks, buses, service vehicles
Refrigeration & HVAC Systems — especially where high airflow / pressure is needed
Industrial Equipment Cooling — such as compressors, electrical enclosures, ventilation
Heavy Machinery / Construction Equipment — cooled components, engine bays
Custom Cooling Modules — for OEMs needing higher performance fans
Use Case Example: In a mobile refrigeration unit, after replacing a standard 2- or 3-blade fan with this 5-blade 140W model, the cooling performance improved under high ambient load, maintaining lower temperature more stably over long operation periods.
Sample Lead Time: 14days
Mass Production: 21days
MOQ: 2
Customization: Voltage, control mode, wiring, housing treatment available
Contact Us:
Sunny Li: +86-18806140118 / sunny@sunlightmotor.com
Alisa Chen: +86-18806140198 / sales3@czsunlight.com
Frances Zhang: +86-18806140168/ sales1@czsunlight.com
Vicky Li: +86-18806140098/ sunlight@sunlightmotor.com
Q1: Why 5 blades instead of typical 3 or 4 blades?
A1: The additional blades help increase static pressure and stabilize airflow under resistance, making it more effective in ducted or obstructed airflow systems.
Q2: Can this fan’s speed be adjusted?
A2: Yes — you can use PWM control or adjust input voltage (within safe range) to regulate speed and airflow.
Q3: What is the noise level of this fan in operation?
A3: Noise depends on speed, load conditions, and mounting. (If you have test data: “Typical noise is ~ XX dB(A) at full speed in free air.”) The balanced design helps keep vibration and noise low.
Q4: Is the motor sealed / protected from dust and water?
A4: The motor is in a sealed housing (if so). If there is an IP rating, specify it here (e.g. “IP54 rated for dust and splash resistance”).
Q5: Can I customize the wiring, connector, or blade configuration?
A5: Yes — we support customization of connectors, cable length, wiring colors, and can discuss blade geometry modifications if needed.
