SLT-0812C-W10
Sunlight
| Voltage: | |
|---|---|
| Quantity: | |
Specification of SLT-0812C-W10 200mm (8Inch) 12V 96W Brushed Cooling Fan
| Rated Voltage | DC12V |
| Load current | ≤8A |
| Load Speed | 3800 ±4% rpm |
| Static Pressure | 0Pa |
| Air Volume | ≤710m³/h |
| Noise | ≤70db(A) |
| Vibration | ≤3.5m/S² |
| 0perating temperature range | -40 to +85° C |

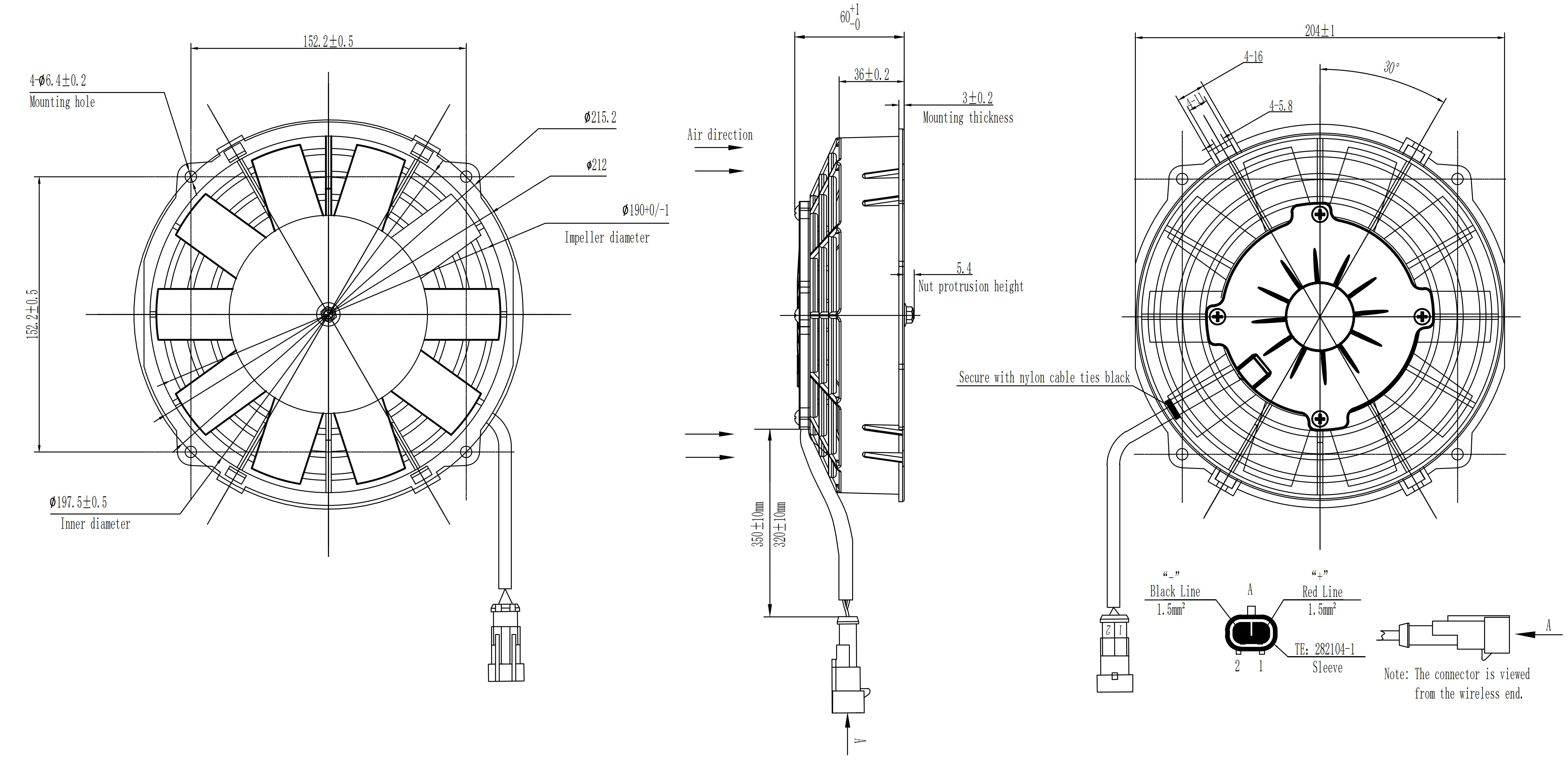

Drawing of SLT-0812C-W10 200mm (8Inch) 12V 96W Brushed Cooling Fan

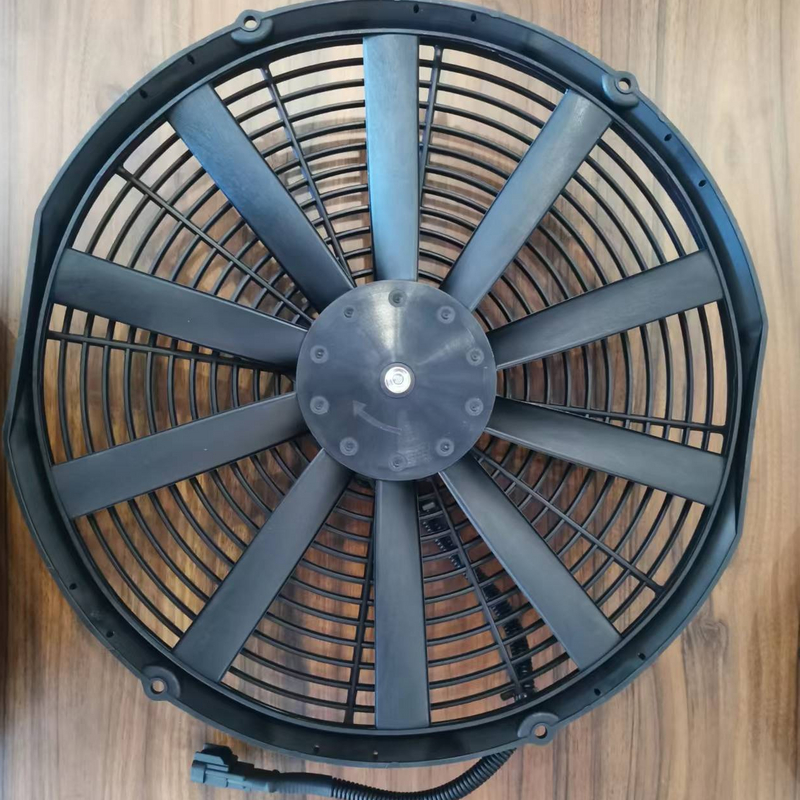

Real photo of SLT-0812C-W10 200mm (8Inch) 12V 96W Brushed Cooling Fan
Advantages of SLT-0812C-W10 200mm (8Inch) 12V 96W Brushed Cooling Fan
High airflow output: 360 m³/h at 0 Pa static pressure (resolves compact device heat buildup)
Reliable waterproof design: Oil-free bearing structure (avoids leakage risks)
Long service life: Durable construction (consistent long-term performance)
Wide operating temperature: from –20 °C to +60 °C (adapts to common working environments)
Stable current draw: ~8 A at 0 Pa load (12V 96W efficient power usage)
Compact 355 mm diameter (14″): Compact 200 mm (8″) diameter (fits small equipment setups)
Push (blower) configuration: Push airflow configuration (fits compact front-mount setups)
Certifications included: Low-voltage harness standard compliance
Customizable options available: Mounting & connector configurations
Application of SLT-0812C-W10 200mm (8Inch) 12V 96W Brushed Cooling Fan
This 12V 8″ brush axial push fan is ideal for a variety of cooling and ventilation scenarios:
Automotive radiators and condensers (push-through applications)
Trucks, buses, and commercial vehicles
Refrigerated trucks and HVAC systems
Construction and agricultural machinery (e.g. loaders, excavators)
Special vehicles such as ambulances, snow plows, engineering vehicles
Industrial equipment requiring forced air cooling
Forestry machinery and off-road equipment
Installation & Usage Tips
Mount Flat & Securely: Use a flat mounting surface with proper torque. Avoid frame deformation—prevent airflow imbalance, safeguard 360m³/h cooling efficiency.
Maintain Clear Airflow: Do not obstruct inlet/outlet paths; allow free airflow—avoid compact device heat buildup, cut downtime risks.
Wiring Polarity: Connect correct polarity (positive-negative matching). Reverse polarity risks fan damage (clear red/black wire marking reduces misconnection errors).
Stable Power Supply: Keep voltage 12V (nominal) for stable operation; power ripple ≤1%—ensure steady 96W performance, no speed fluctuations.
Use Clean Environments: Oil-free bearing design, avoid corrosive liquids; -20~+60℃ operating temp—fit standard working conditions, no leakage risks.
Routine Checks: Periodically inspect wiring/connections for loosening or damage—catch issues early, prevent fan failure.
Storage Conditions: Store dry at -20~+60℃ to preserve insulation and materials—maintain bearing durability.
Control & Regulation: Use direct wiring control—match device native power setups, simple and reliable for integration.
About us
Since 1990, Sunlight has specialized in manufacturing high-performance brushless fans and blowers. Certified with ISO9001 and IATF16949, our products meet CE, RoHS, and EMC standards. Widely applied in automotive, machinery, refrigeration and energy industries. Sunlight is committed to delivering quality, innovation, and reliable cooling solutions.
All fans undergo 100% testing before shipment, with customization and technical support available.
Certifications
Exhibition

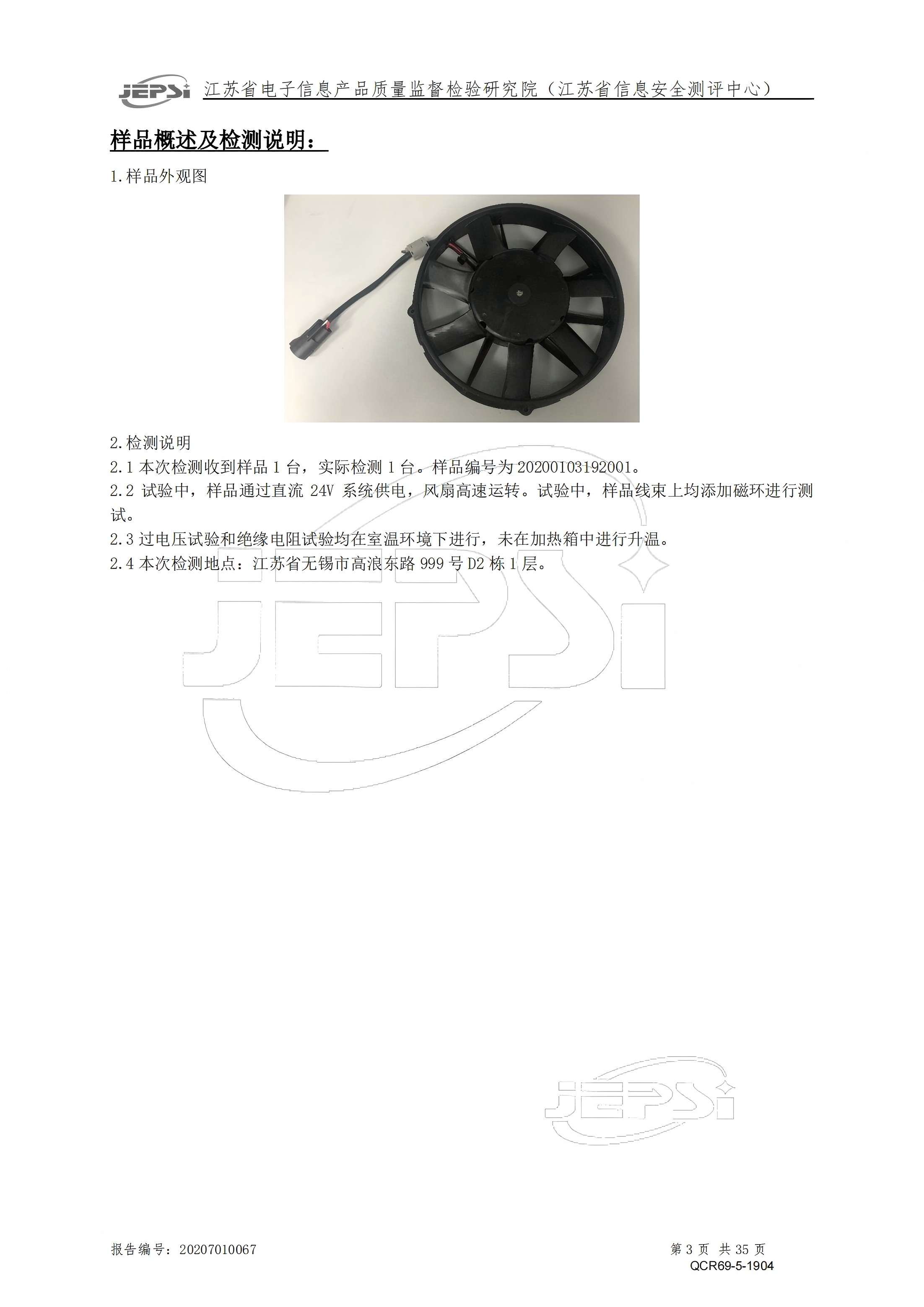

Test Experiment
Sample Lead Time: 14days
Mass Production: 21days
MOQ: 2
Customization: Voltage, control mode, wiring, housing treatment available
Contact Us:
Sunny Li: +86-18806140118 / sunny@sunlightmotor.com
Alisa Chen: +86-18806140198 / sales3@czsunlight.com
Frances Zhang: +86-18806140168/ sales1@czsunlight.com
Vicky Li: +86-18806140098/ sunlight@sunlightmotor.com
