SLT-1112X-W7 280mm (11Inch) 12V 170W Brushed Cooling Fan - Sunlight Motor

Introducing Sunlight Motor’s SLT-1112X-W7 — a 280mm (11Inch) 12V 170W brushed cooling fan engineered for reliable heat dissipation.
It operates at 2800r/min with 0 Pa static pressure, delivering efficient cooling for diverse equipment.
With an oil-sealed bearing design, it runs stably across -40~+85℃ and boasts a long service life of up to 6000 hours.
Compliant with CE and EMC certifications, its clear wiring polarity marking ensures easy, error-free installation.
The compact 280mm frame and low-voltage compatibility enable seamless integration into multiple application setups.

  •  SLT-1112X-W7

  • Sunlight

Voltage:
12V
Availability:
Quantity:
Inquire Add to Basket

Specification of 280mm (11Inch) 12V 170W Brushed Cooling Fan

Rated Voltage 12v
Load Current ≤7A
Load Speed 2800 ±200 rpm
Static Pressure 0Pa
Air Volume ≤2000m³/h
Noise <70db(A)
Vibration ≤100mg
Ambient temperature range -40°C to +85°C
Waterproof lP63/P68


Drawing of SLT-1112X-W7 280mm (11Inch) 12V 170W Brushed Cooling Fan

SLT-1112X-W7产品图

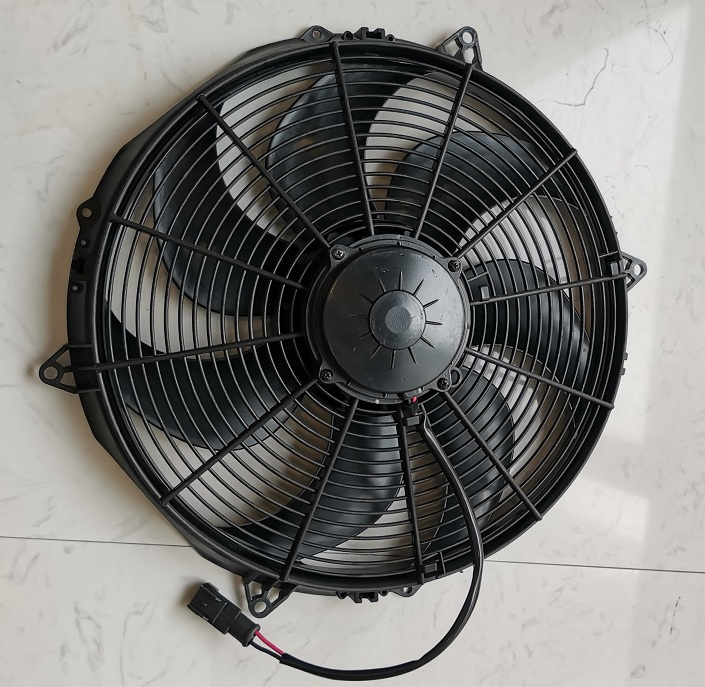

Real photo of SLT-1112X-W7

16-2-3


Advantages of  280mm (11Inch) 12V 170W Brushed Cooling Fan

  • High airflow output: 2800r/min speed + 0Pa static pressure (rapidly dissipates equipment heat, avoids overheating downtime)

  • Reliable waterproof design: Oil-sealed bearing structure (prevents leakage and dust intrusion, adapts to complex working environments)

  • Long service life: Up to 6000 operating hours (reduces replacement frequency, lowers maintenance costs)

  • Wide operating temperature: from –40 °C to +85 °C (handles temperature fluctuations in industrial/outdoor scenarios)

  • Stable current draw: ≤14 A at 0 Pa load (12V 170W efficient power use, protects circuit from overload)

  • Industry-standard 280 mm (11″) diameter: Fits mainstream radiators/equipment enclosures, solves compact installation constraints

  • Push (blower) configuration: Fits front-mount cooling systems (flexible installation, compatible with diverse cooling setups)

  • Certifications included: CE, EMC (complies with EU standards, no electromagnetic interference)

  • Customizable options available: mounting & connector configurations (adapts to specific equipment requirements)

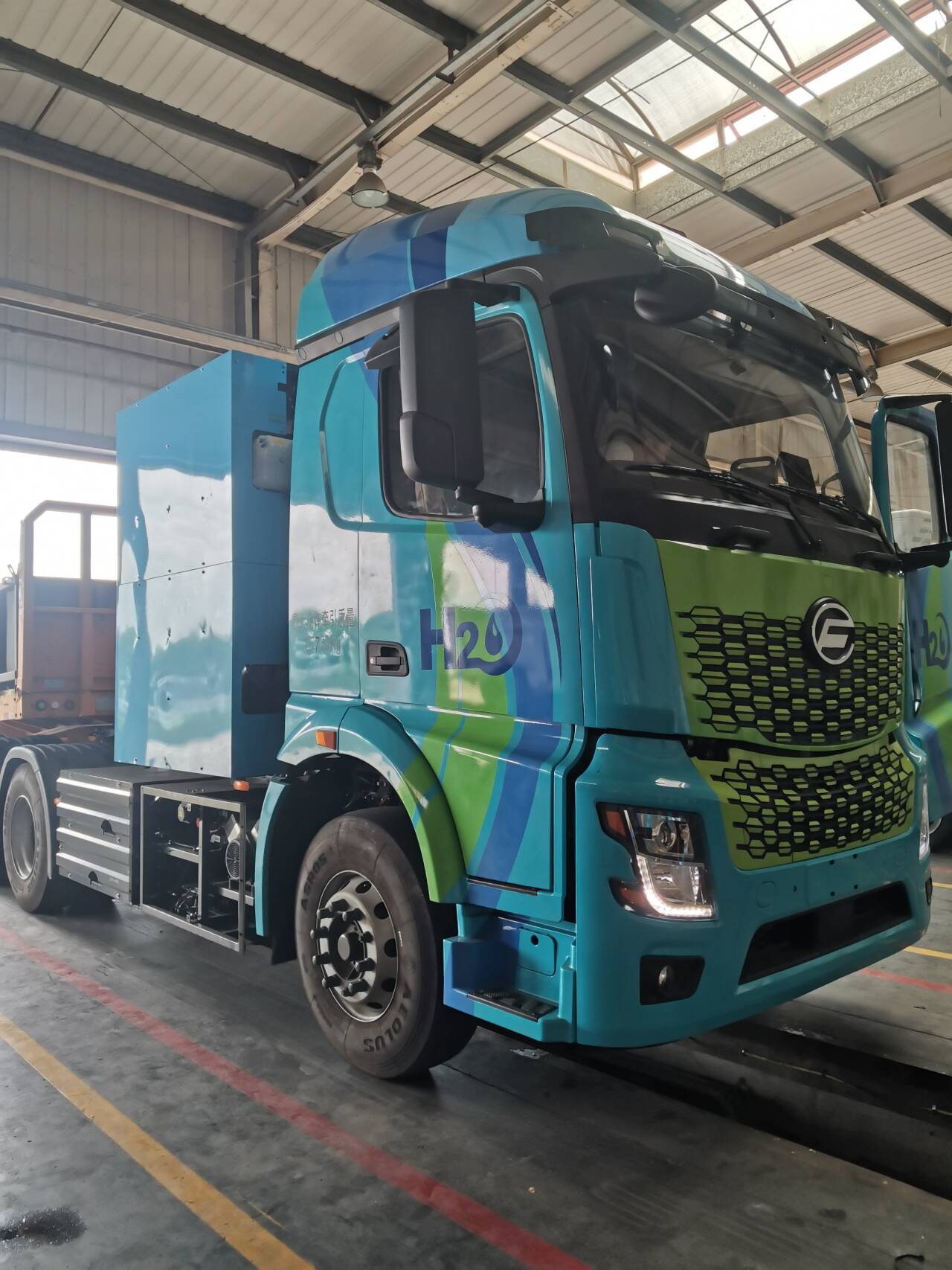

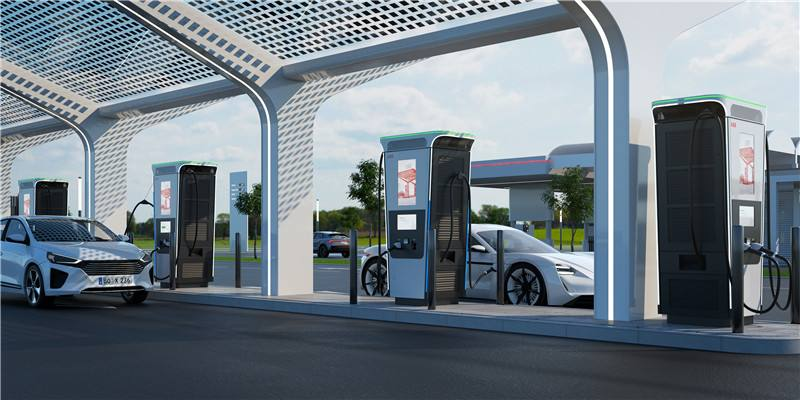

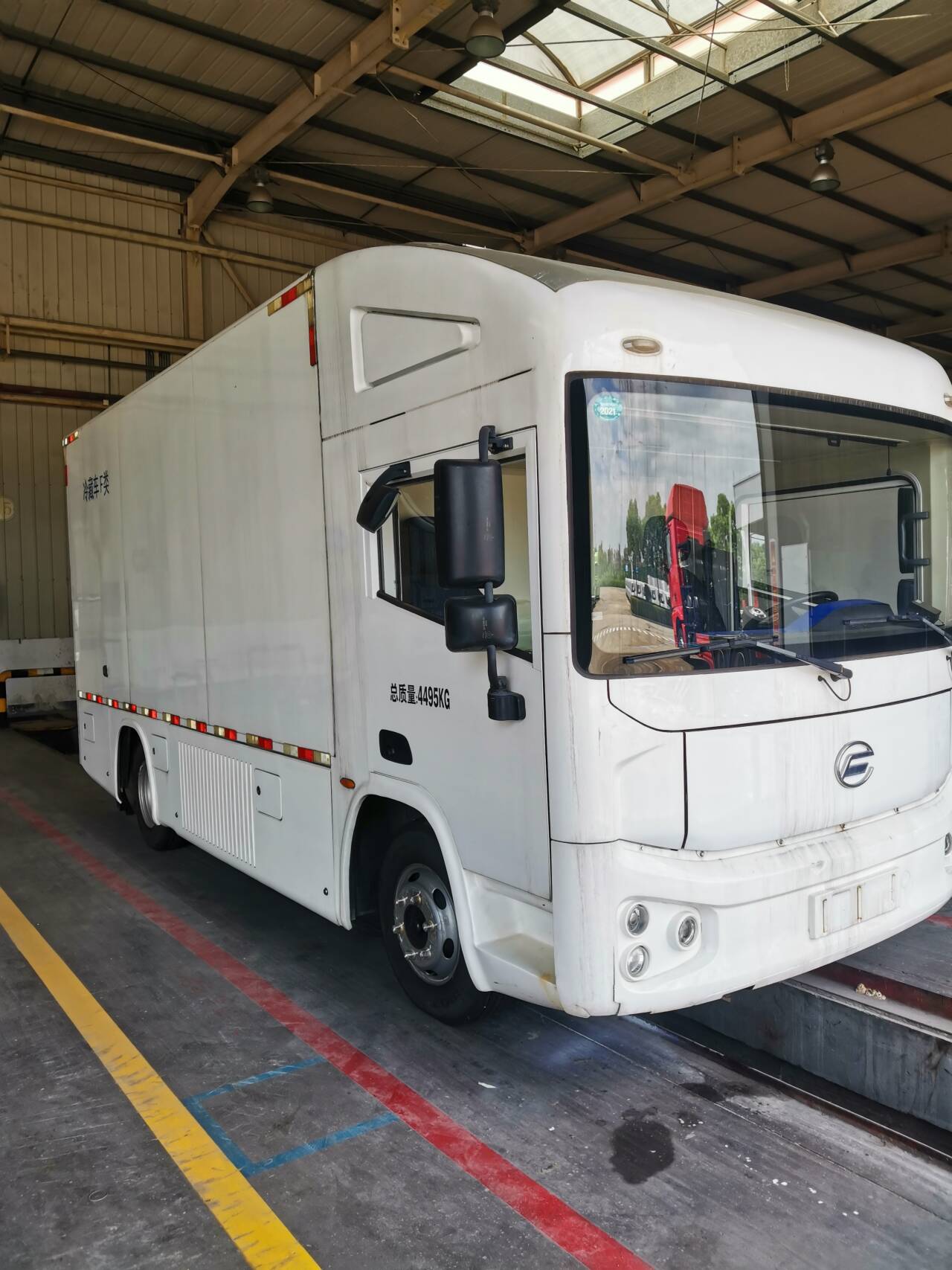

Application of SLT-1112X-W7

图4图2图4图1图片5


应用图


Installation & Usage Tips


  • Mount Flat & Securely: Use a flat mounting surface with proper torque. Avoid frame deformation—ensure stable 2000m³/h airflow output and prevent vibration exceeding 100mg.

  • Maintain Clear Airflow: Do not obstruct inlet/outlet paths; allow free airflow—avoid equipment overheating shutdown and guarantee efficient heat dissipation performance.

  • Wiring Polarity: Connect correct polarity (positive-negative matching). Reverse polarity risks driver damage (red/black wires clearly marked, reducing misconnection risks, compliant with QC/T 417-2001 connector standards).

  • Stable Power Supply: Keep 12V rated voltage for stable operation; ensure current ≤14A—avoid speed fluctuations (2800±200rpm) that affect cooling efficiency.

  • Use Clean Environments: IP63 rated, avoid corrosive liquids/strong chemicals; -40~+85℃ operating temp—adapt to harsh working conditions, prevent harness aging (heat-resistant ≥125℃ irradiated wires).

  • Routine Checks: Periodically inspect wiring/connections for loosening or damage—timely eliminate hidden dangers to avoid fan failure caused by loose fasteners.

  • Storage Conditions: Store dry at -40~+85℃ to preserve insulation and materials—maintain harness and component performance for future use.

  • Control & Regulation: Adopt simple and reliable wiring control—comply with QC/T 708-2004 automotive HVAC blower standards, seamlessly integrate with equipment systems.

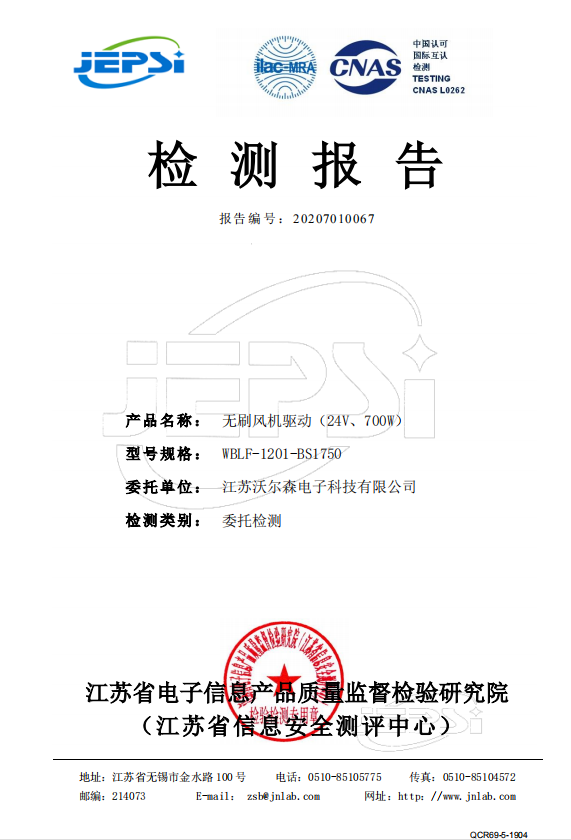

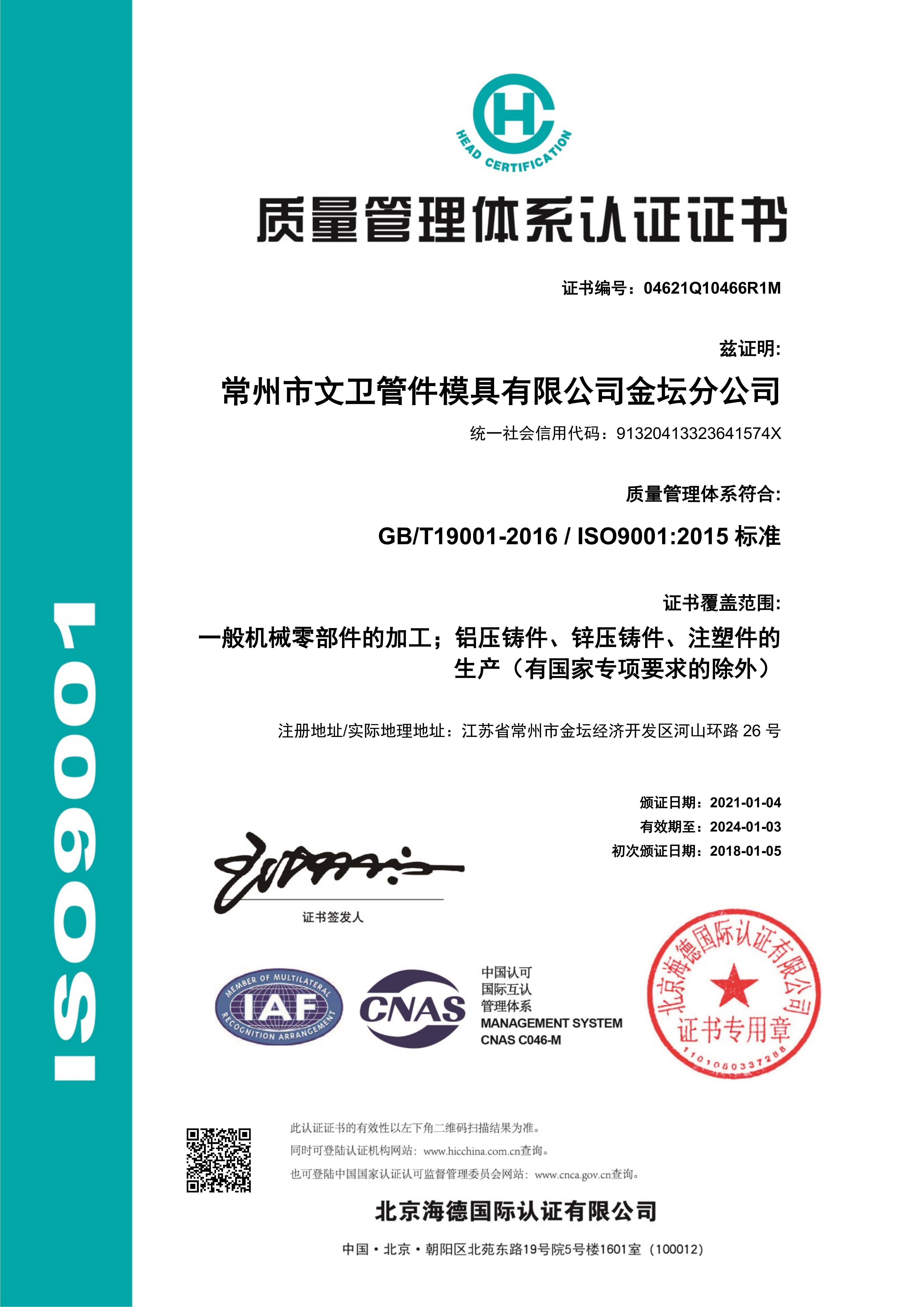

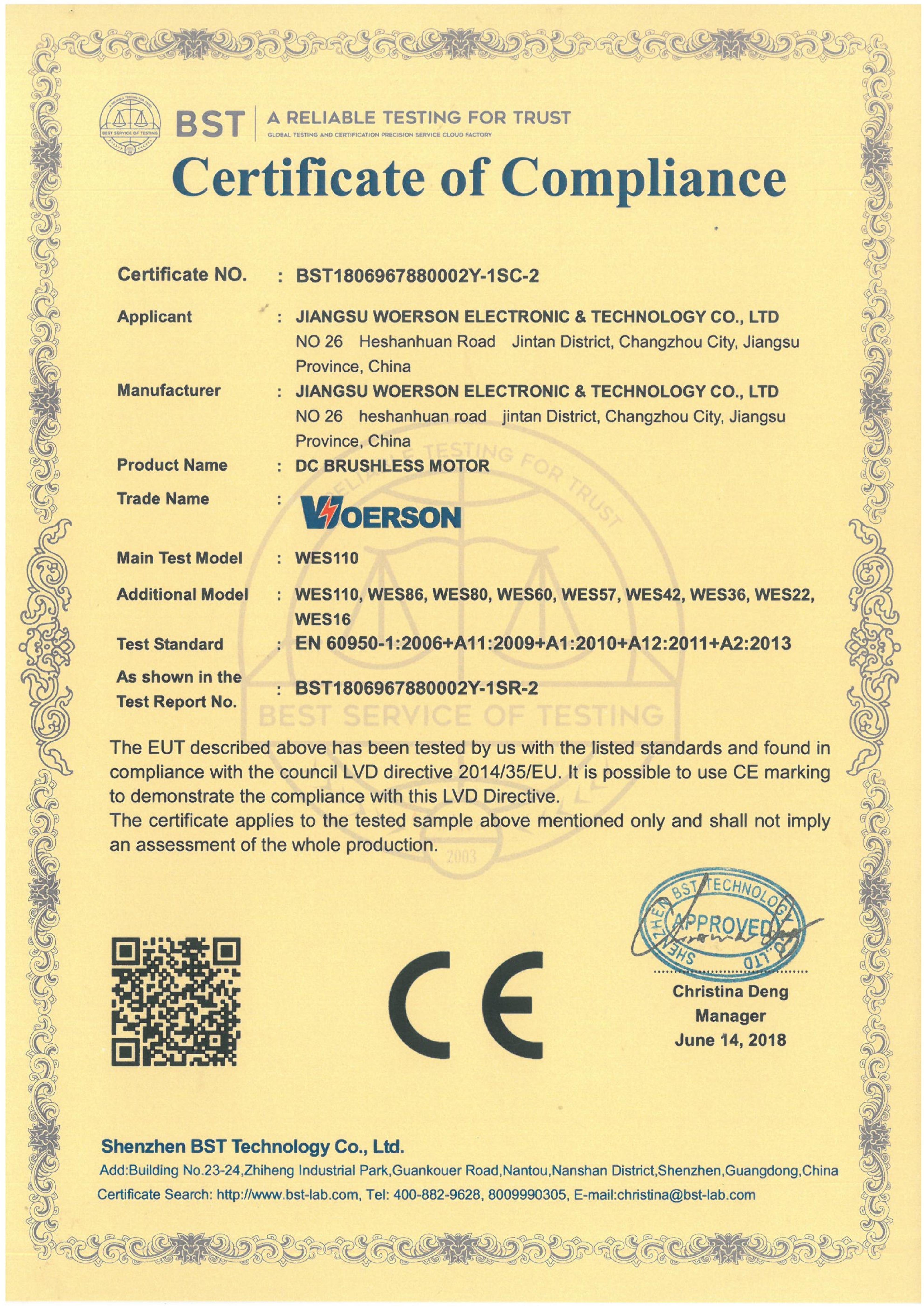

Certifications

5图片31637图片1

Exhibition


Brushless Axial Fans - czsunlight.com (16)Brushless Axial Fans - czsunlight.com (19)Brushless Axial Fans - czsunlight.comBrushless Axial Fans - czsunlight.com (29)

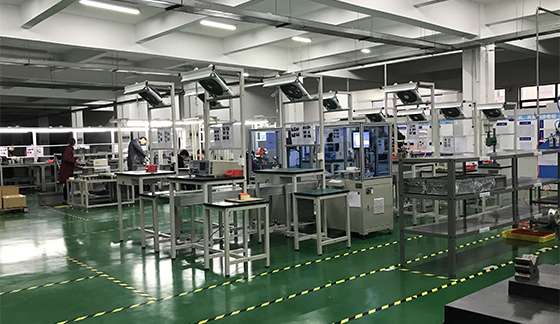

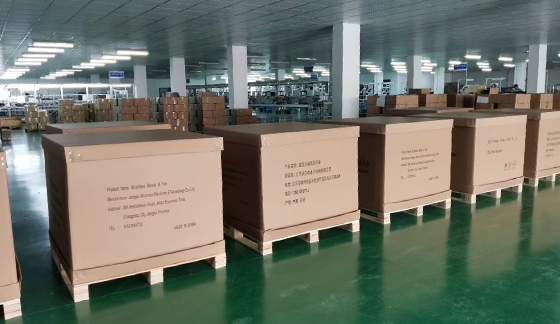

workshopwarehouse-packaging

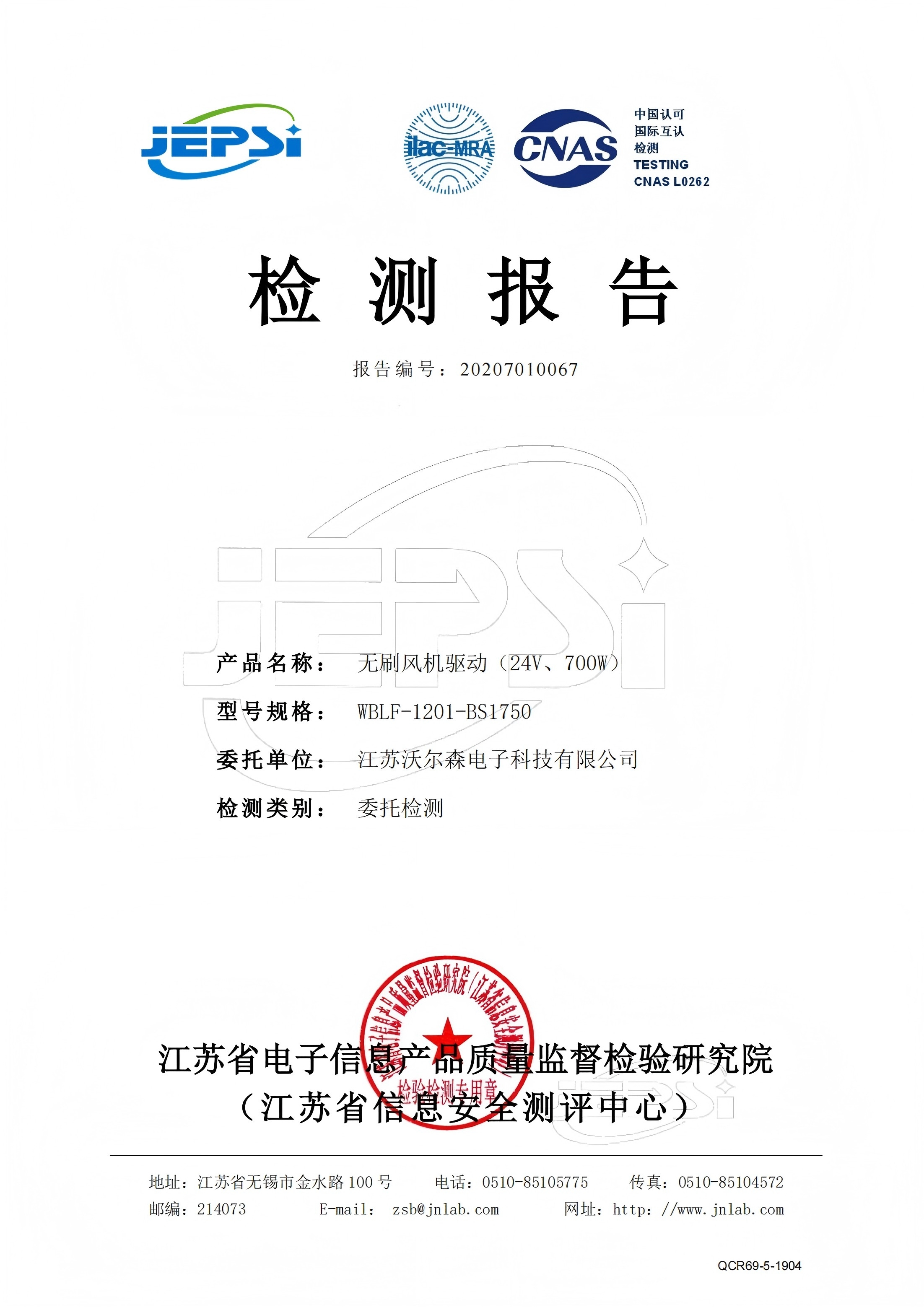

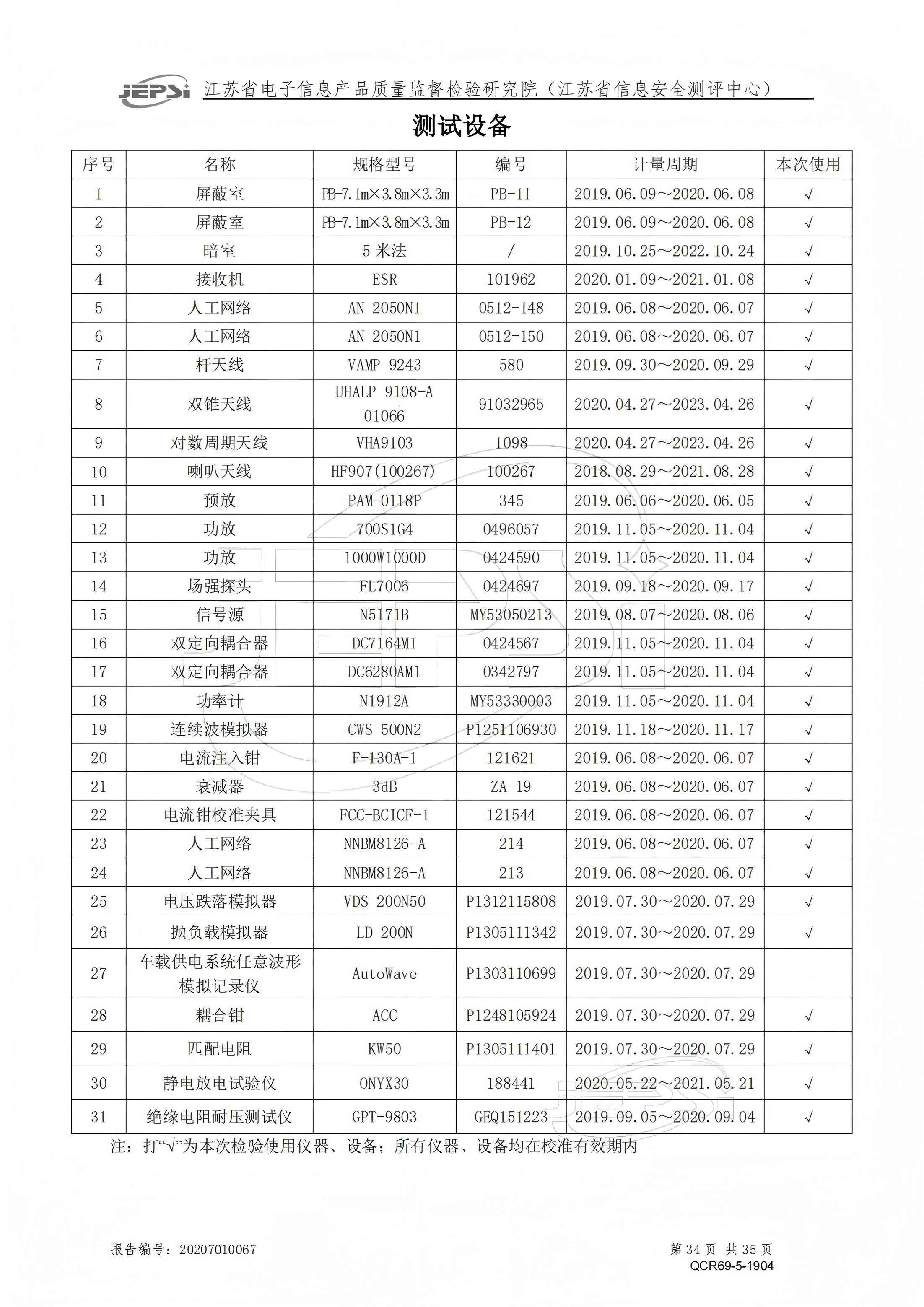

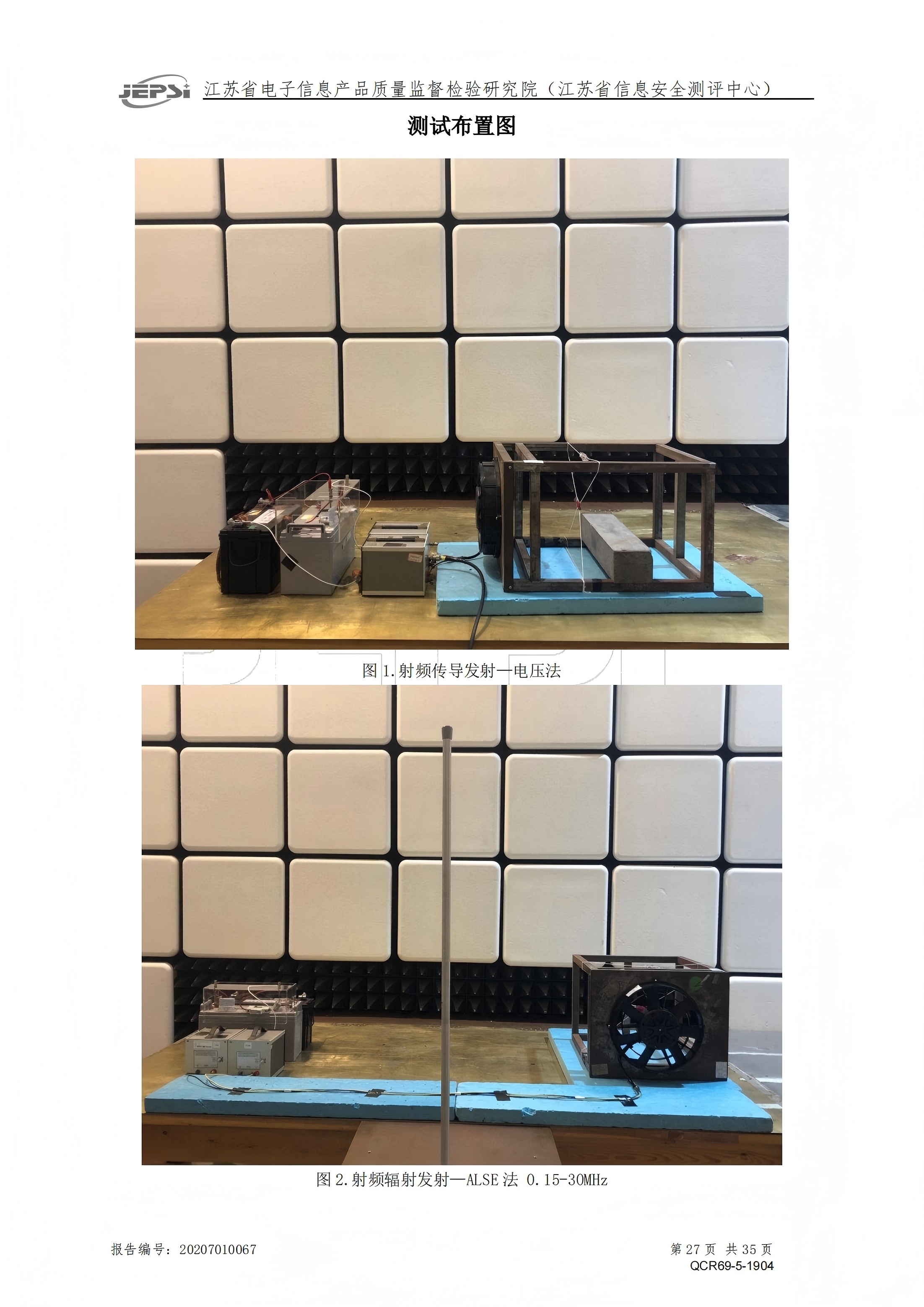

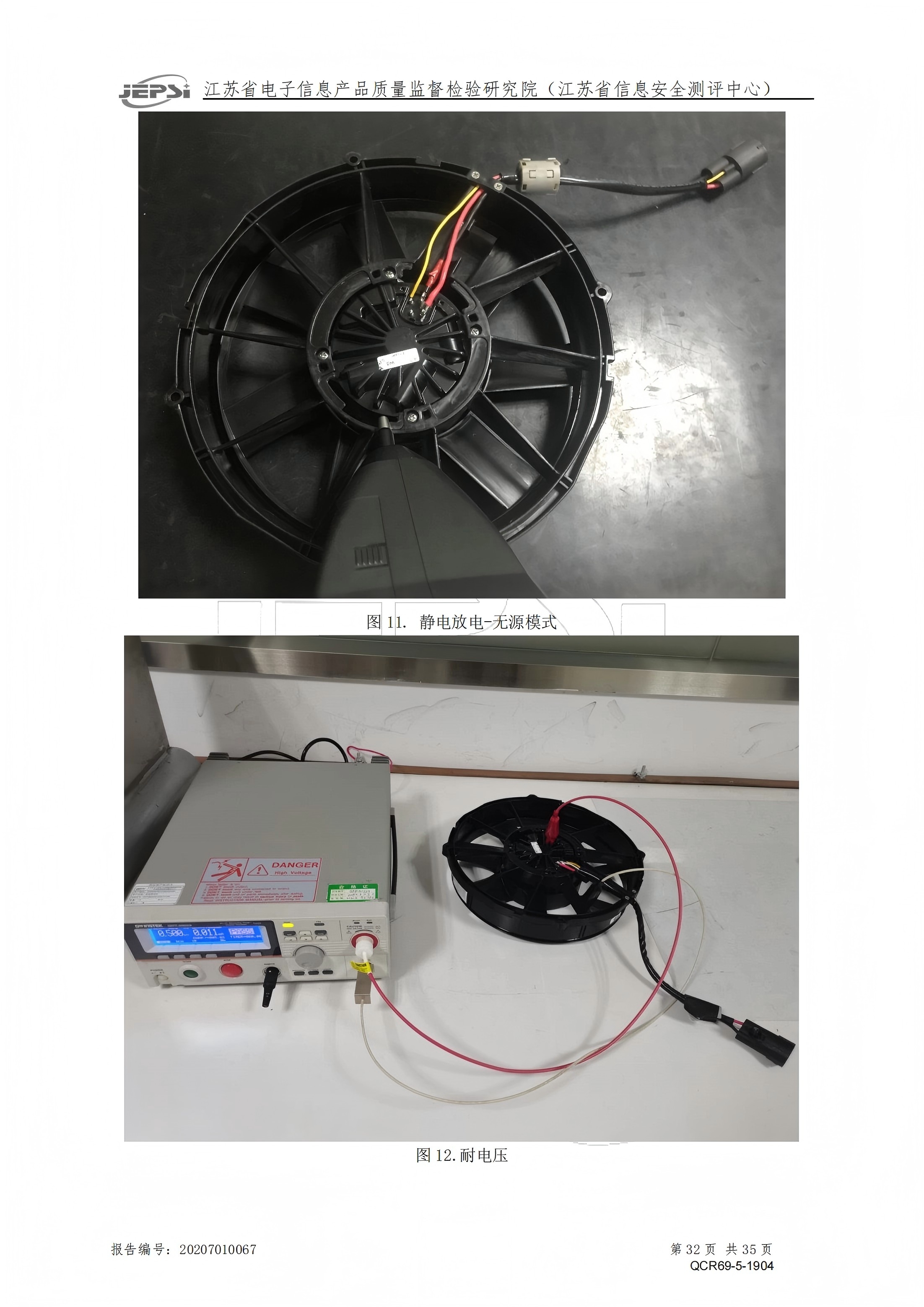

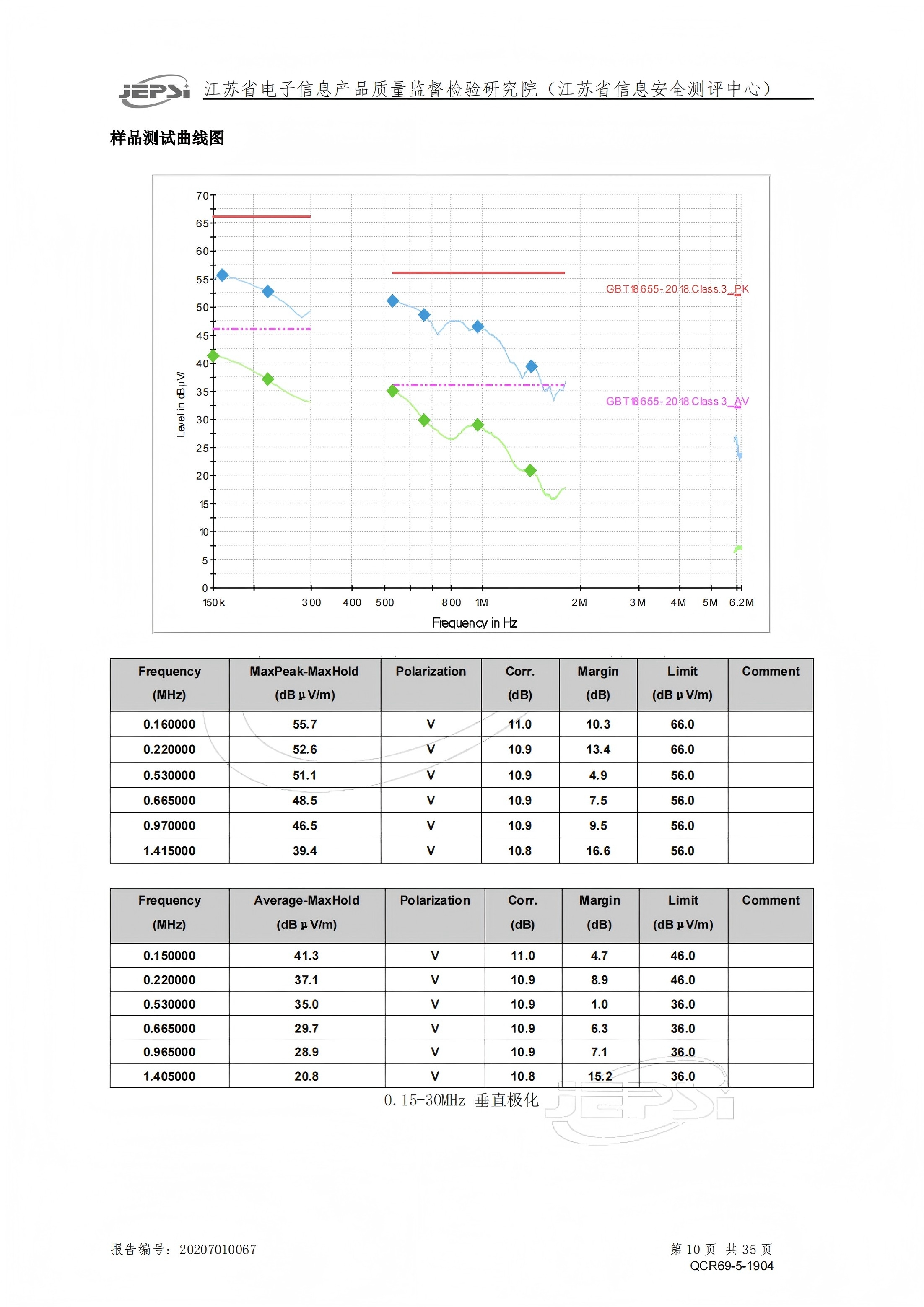

Test Experiment

132756810


Ordering Information

Sample Lead Time: 14days

Mass Production: 21days

MOQ: 2

Customization: Voltage, control mode, wiring, housing treatment available

Contact Us:

Sunny Li: +86-18806140118 / sunny@sunlightmotor.com

Alisa Chen: +86-18806140198 / sales3@czsunlight.com

Frances Zhang: +86-18806140168/ sales1@czsunlight.com

Vicky Li: +86-18806140098/ sunlight@sunlightmotor.com


FAQ

1. Q: What core specs does the SLT-1112X-W7 have, and can it meet my equipment’s cooling needs?

A: It’s a  12V 170W brushed cooling fan with 280mm (11Inch) size, delivering ≥1800m³/h airflow and 2800±200rpm speed—perfect for resolving overheating issues in high-demand equipment.

2. Q: Can the SLT-1112X-W7 work reliably in harsh environments?

A: Yes. With  IP63 protection rating and -40~+85℃ operating temperature range, it resists dust/moisture and handles extreme temperature fluctuations, adapting to tough industrial/outdoor scenarios.

3. Q: How to avoid wiring mistakes and ensure secure installation for the SLT-1112X-W7?

A: Follow the clear red/black wire polarity marking (compliant with QC/T 417-2001) to prevent misconnection; mount on a flat surface with proper torque to avoid loosening or frame deformation.

4. Q: Does the SLT-1112X-W7 comply with international or industry standards?

A: It meets multiple key standards—QC/T 708-2004 (automotive HVAC blowers), QC/T 29106 (low-voltage wiring harnesses), and QC/T 417-2001 (connectors)—ensuring compatibility and reliability for professional applications.

5. Q: What about the SLT-1112X-W7’s noise and vibration levels?

A: It operates with noise ≤70dB(A) and vibration ≤100mg, minimizing interference with your equipment while maintaining powerful cooling performance.
