SLT-0824C-W10
Sunlight
| Voltage: | |
|---|---|
| Quantity: | |
Specification of 200mm (8Inch) 24V 96W brushed cooling fan
| Test Voltage | 24V |
| Load current | ≤4A |
| Load Speed | 3800 ±4% rpm |
| Static Pressure | 0Pa |
| Air Volume | ≤710m³/h |
| Noise | ≤70db(A) |
| Operating temperature range | -40 to +85° C |
| Diameter | 7.5inch |
| Waterproof | lP63/P68 |

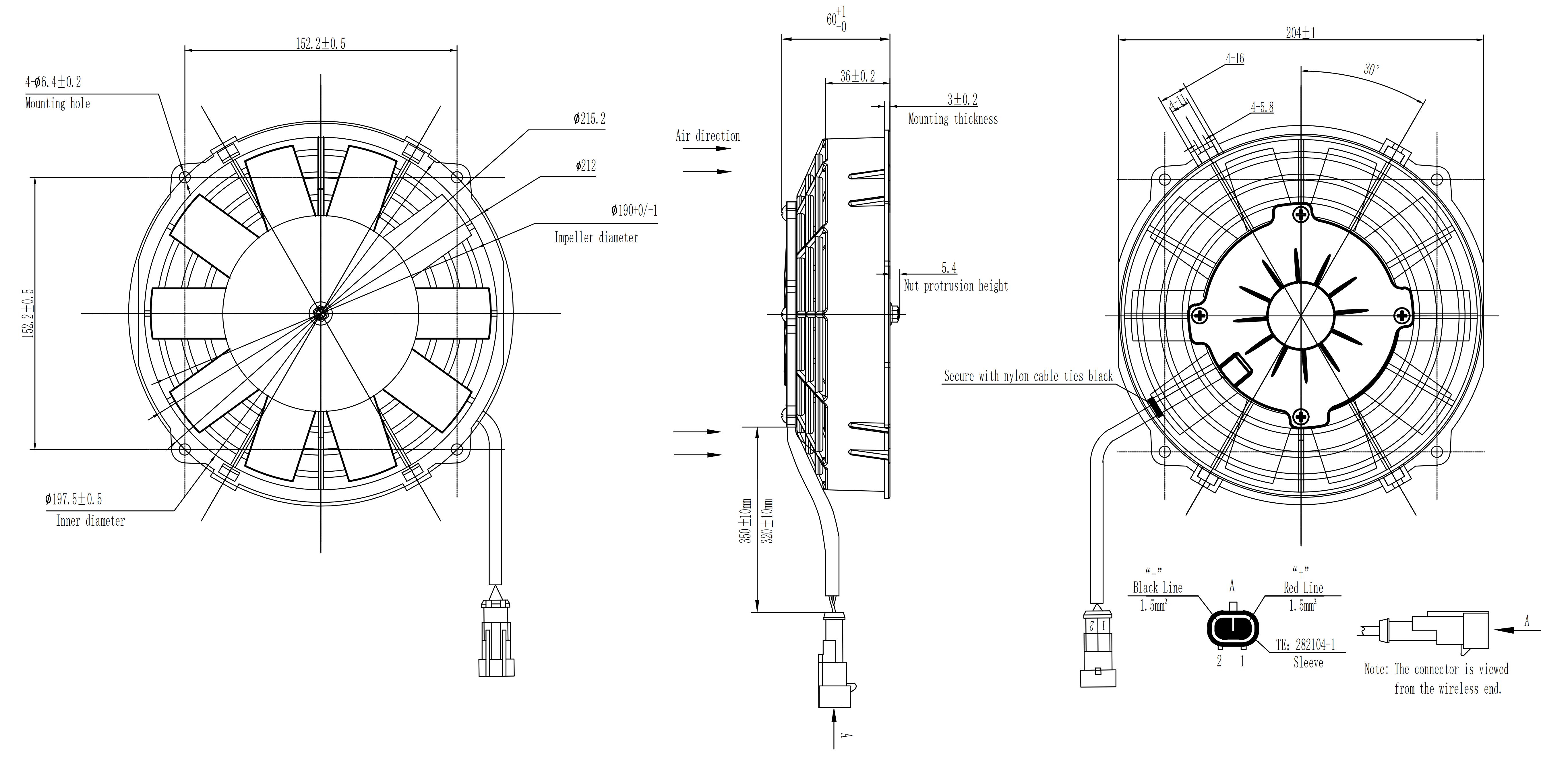

Drawing of 200mm (8Inch) 24V 96W brushed cooling fan

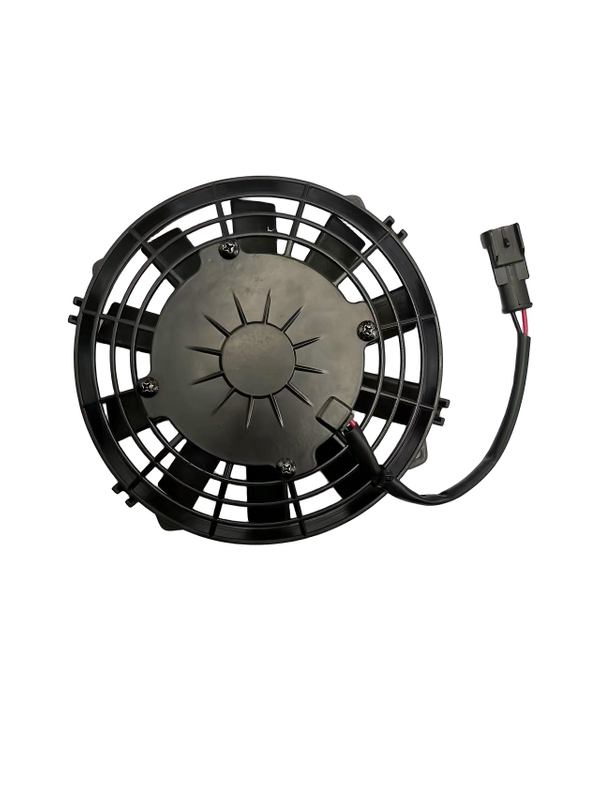

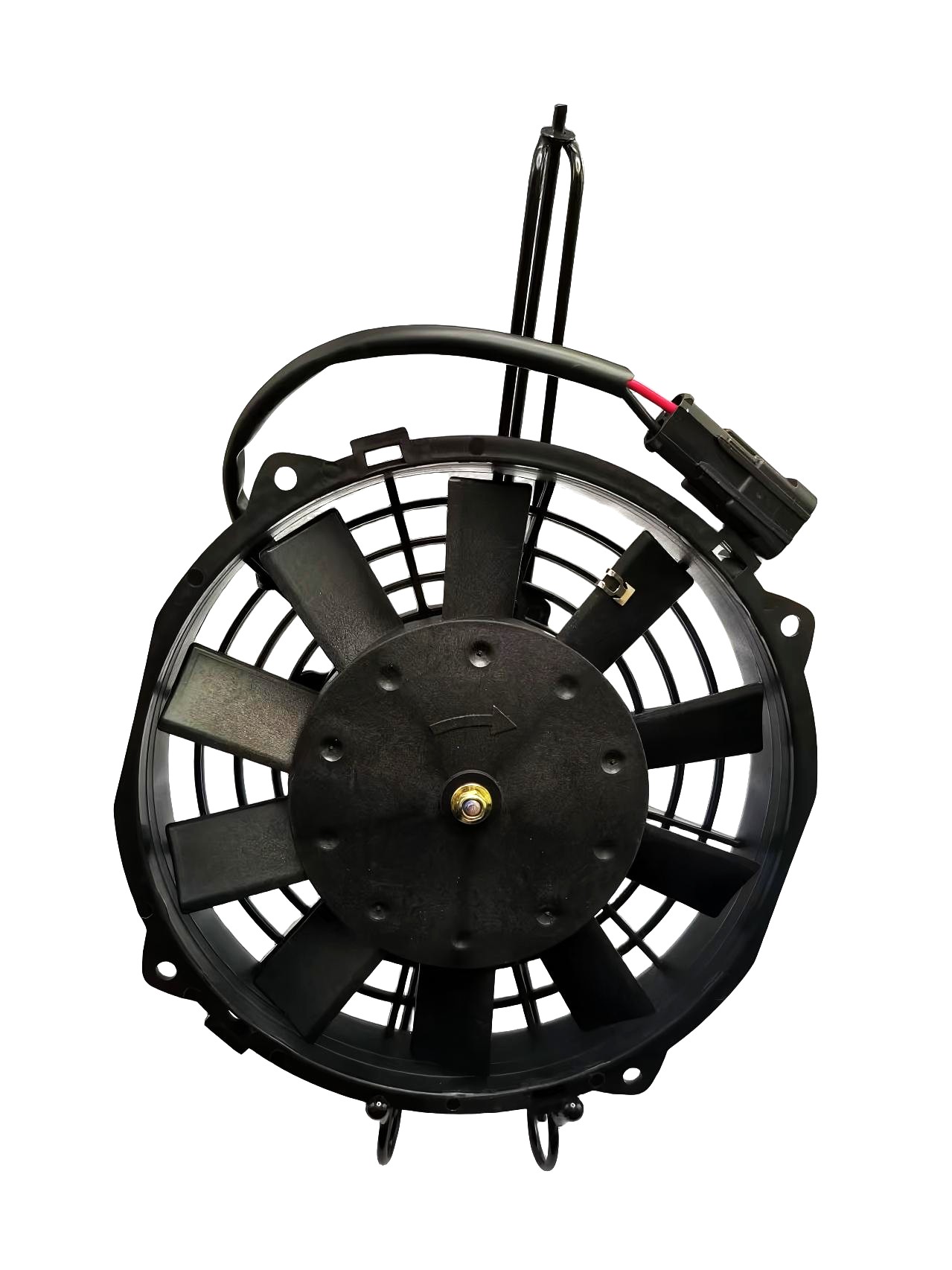

Real photo of 200mm (8Inch) 24V 96W brushed cooling fan
Advantages of 200mm (8Inch) 24V 96W brushed cooling fan
High airflow output: 710 m³/h at 0 Pa static pressure (resolves compact device heat buildup)
Reliable waterproof design: Oil-free bearing structure (avoids leakage risks)
Long service life: Durable construction (ensures consistent long-term performance)
Wide operating temperature: from –40 °C to +85°C (adapts to common working environments)
Stable current draw: ~4 A at 0 Pa load (24V 96W efficient power usage)
Compact 200 mm diameter (8″): Space-saving 200 mm (8″) size (perfectly fits small equipment installation setups)
Push (blower) configuration: Push (blower) configuration (suits compact front-mount setups)
Certifications included: Low-voltage harness standard compliance
Customizable options available: Mounting & connector configurations
Application of 200mm (8Inch) 24V 96W brushed cooling fan
Suitable for use in
Trucks, trailers, and refrigeration units
Condensers, radiators, heat exchangers
Construction & utility vehicles
Buses, ambulances, engineering vehicles
Agricultural, mining, forestry machinery
New energy vehicles, charging station thermal managemer
Installation & Usage Tips
Mount Flat & Securely: Use a flat mounting surface with proper torque. Avoid frame deformation—prevent airflow imbalance, safeguard the fan's 710m³/h cooling efficiency.
Maintain Clear Airflow: Do not obstruct inlet/outlet paths; allow free airflow—avoid heat buildup in compact equipment, reduce the risk of unplanned downtime.
Wiring Polarity: Connect correct polarity (positive-negative matching). Reverse polarity risks fan damage (clear red/black wire marking reduces misconnection errors).
Stable Power Supply: Keep voltage 24V (nominal) for stable operation; power ripple ≤1%—ensure steady 96W performance with no speed fluctuations.
Use Clean Environments: Oil-free bearing design, avoid corrosive liquids; -40~+85℃ operating temp—adapt to common working conditions, no leakage risks.
Routine Checks: Periodically inspect wiring/connections for loosening or damage—catch issues early to prevent fan failure from disrupting equipment operation.
Storage Conditions: Store dry at -40~+85℃ to preserve insulation and materials—maintain the bearing’s long-term durability.
Control & Regulation: Use direct wiring control—match the native power configuration of your device, with simple and reliable operation.
About us
Since 1990, Sunlight has specialized in manufacturing high-performance brushless fans and blowers. Certified with ISO9001 and IATF16949, our products meet CE, RoHS, and EMC standards. Widely applied in automotive, machinery, refrigeration and energy industries. Sunlight is committed to delivering quality, innovation, and reliable cooling solutions.
All fans undergo 100% testing before shipment, with customization and technical support available.
Certifications
Exhibition

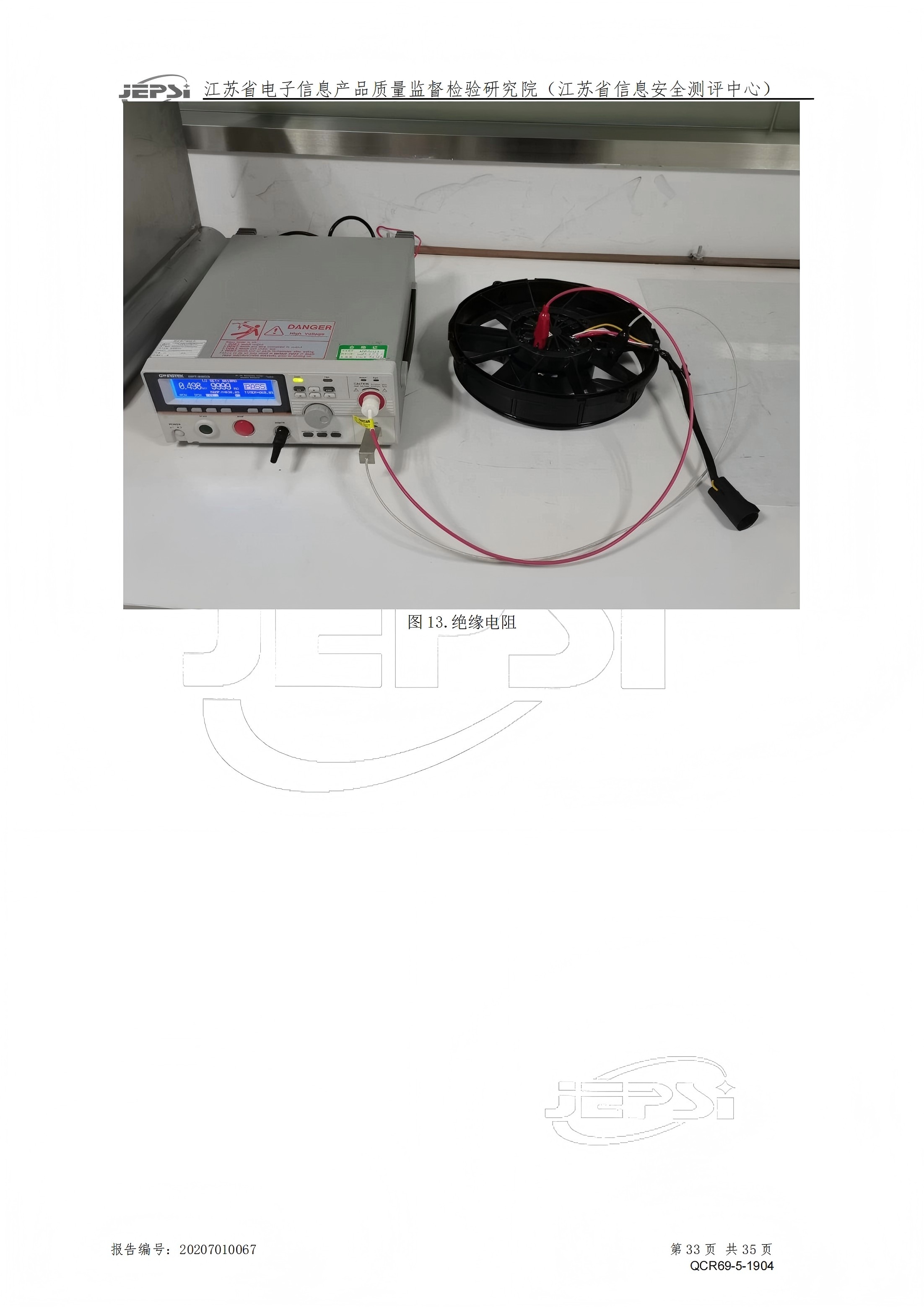

Test Experiment
Sample Lead Time: 14days
Mass Production: 21days
MOQ: 2
Customization: Voltage, control mode, wiring, housing treatment available
Contact Us:
Sunny Li: +86-18806140118 / sunny@sunlightmotor.com
Alisa Chen: +86-18806140198 / sales3@czsunlight.com
Frances Zhang: +86-18806140168/ sales1@czsunlight.com
Vicky Li: +86-18806140098/ sunlight@sunlightmotor.com
