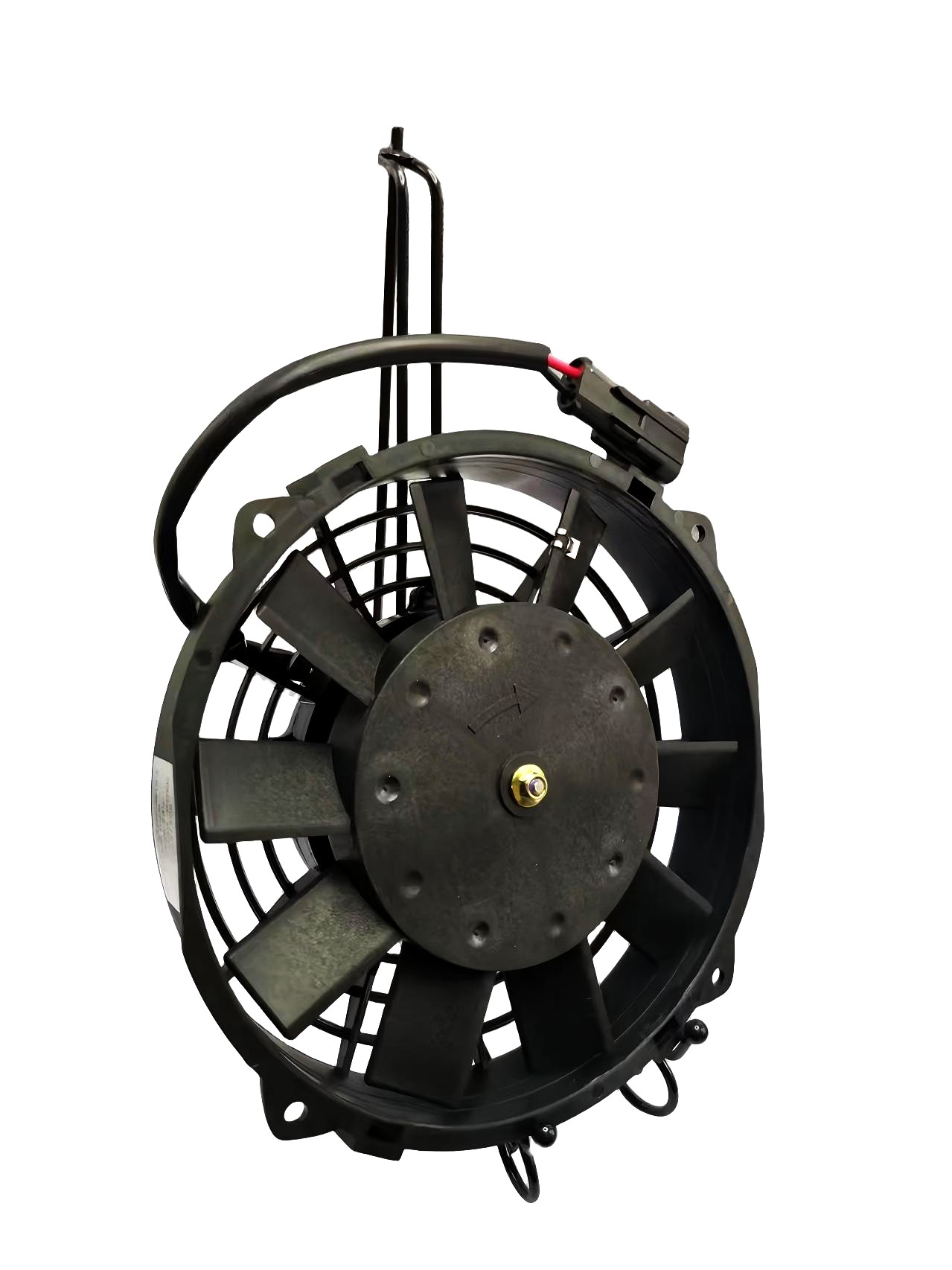

SLT-0824X-W10 200mm (8Inch) 24V 96W Brushed Cooling Fan - Sunlight Motor

Introducing Sunlight Motor’s SLT-0824X-W10 — a 200mm (8Inch) 24V 96W brushed cooling fan for compact equipment heat management.
It delivers an airflow of ≤710m³/h and 0Pa static pressure, efficiently resolving heat buildup in small-scale devices.
The fan operates reliably across a -40~+85℃ temperature range, with an oil-free bearing design ensuring stable long-term performance.
Its wiring complies with low-voltage harness standards, enabling convenient integration into diverse application setups.

  • SLT-0824X-W10

  • Sunlight

Voltage:
24V
Availability:
Quantity:
Inquire Add to Basket

Specification of 200mm (8Inch) 24V 96W brushed cooling fan

Test Voltage 24V
Load current ≤4A
Load Speed 3800 ±4% rpm
Static Pressure 0Pa
Air Volume ≤710m³/h
Noise ≤70db(A)
Operating temperature range -40 to +85° C
Diameter 7.5inch
Waterproof lP63/P68

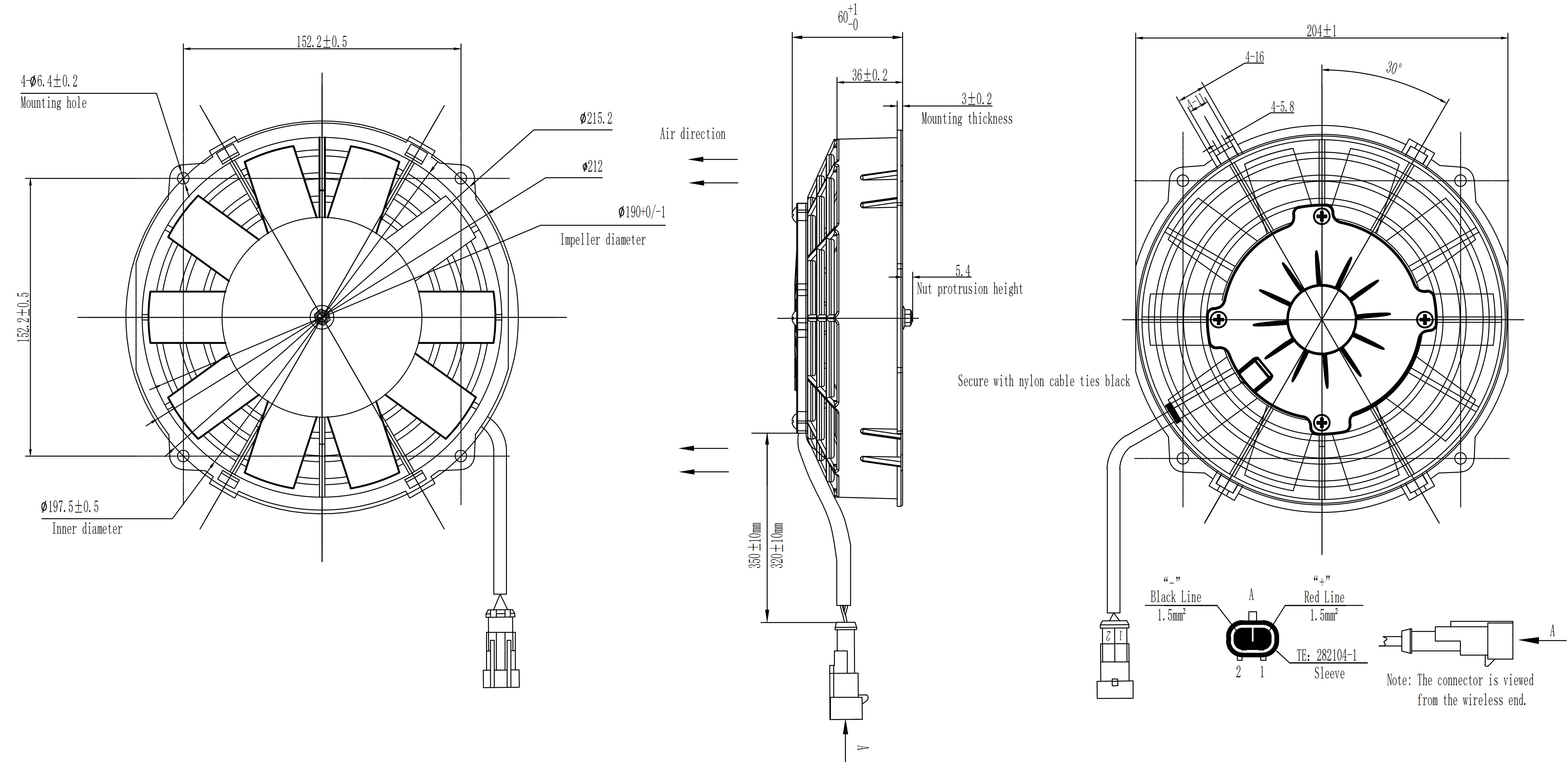

Drawing of 200mm (8Inch) 24V 96W brushed cooling fan

SLT-0824X-W10-T drawing

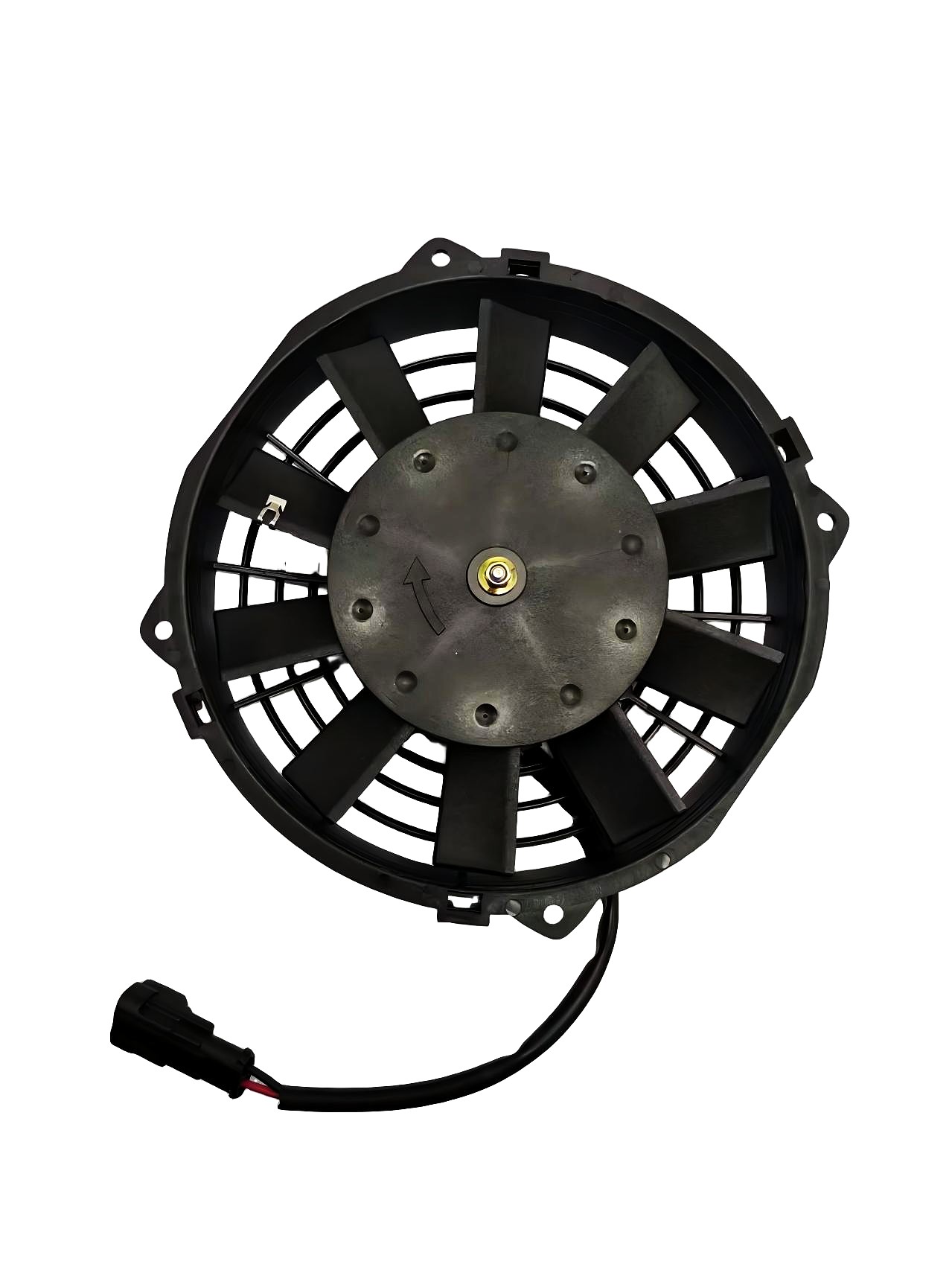

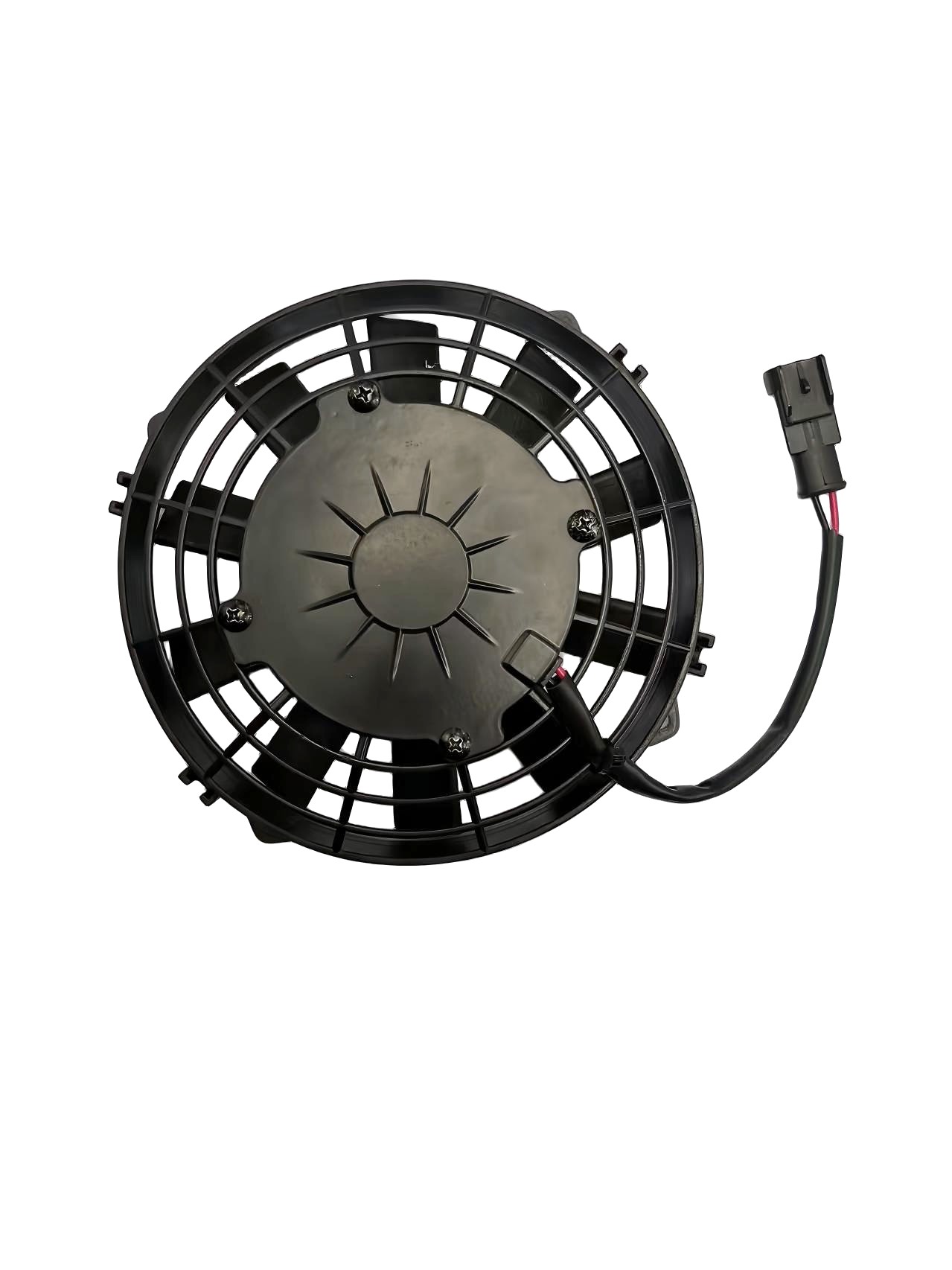

Real photo of 200mm (8Inch) 24V 96W brushed cooling fan


图2(1)


Advantages of 200mm (8Inch) 24V 96W brushed cooling fan


  • High airflow output: 710 m³/h at 0 Pa static pressure (resolves compact device heat buildup)

  • Reliable waterproof design: Oil-free bearing structure (avoids leakage risks)

  • Long service life: Durable construction (ensures consistent long-term performance)

  • Wide operating temperature: from –40 °C to +85°C (adapts to common working environments)

  • Stable current draw: ~4 A at 0 Pa load (24V 96W efficient power usage)

  • Compact 200 mm diameter (8″): Space-saving 200 mm (8″) size (perfectly fits small equipment installation setups)

  • Push (blower) configuration: Push (blower) configuration (suits compact front-mount setups)

  • Certifications included: Low-voltage harness standard compliance

  • Customizable options available: Mounting & connector configurations


Application of 200mm (8Inch) 24V 96W brushed cooling fan


Suitable for use in

  • Trucks, trailers, and refrigeration units

  • Condensers, radiators, heat exchangers

  • Construction & utility vehicles

  • Buses, ambulances, engineering vehicles

  • Agricultural, mining, forestry machinery

  • New energy vehicles, charging station thermal managemer

图4图片5图2图3应用图


Installation & Usage Tips


  • Mount Flat & Securely: Use a flat mounting surface with proper torque. Avoid frame deformation—prevent airflow imbalance, safeguard the fan's 710m³/h cooling efficiency.

  • Maintain Clear Airflow: Do not obstruct inlet/outlet paths; allow free airflow—avoid heat buildup in compact equipment, reduce the risk of unplanned downtime.

  • Wiring Polarity: Connect correct polarity (positive-negative matching). Reverse polarity risks fan damage (clear red/black wire marking reduces misconnection errors).

  • Stable Power Supply: Keep voltage 24V (nominal) for stable operation; power ripple ≤1%—ensure steady 96W performance with no speed fluctuations.

  • Use Clean Environments: Oil-free bearing design, avoid corrosive liquids; -40~+85℃ operating temp—adapt to common working conditions, no leakage risks.

  • Routine Checks: Periodically inspect wiring/connections for loosening or damage—catch issues early to prevent fan failure from disrupting equipment operation.

  • Storage Conditions: Store dry at -40~+85℃ to preserve insulation and materials—maintain the bearing’s long-term durability.

  • Control & Regulation: Use direct wiring control—match the native power configuration of your device, with simple and reliable operation.


About us


Since 1990, Sunlight has specialized in manufacturing high-performance brushless fans and blowers. Certified with ISO9001 and IATF16949, our products meet CE, RoHS, and EMC standards. Widely applied in automotive, machinery, refrigeration and energy industries. Sunlight is committed to delivering quality, innovation, and reliable cooling solutions.

All fans undergo 100% testing before shipment, with customization and technical support available.


Certifications


5图片31637图片1


Exhibition


Brushless Axial Fans - czsunlight.com (25)Brushless Axial Fans - czsunlight.com (20)Brushless Axial Fans - czsunlight.com (9)Shipping photoEXHIBITION2


Test Experiment

5图片31637图片1



Ordering Information

Sample Lead Time: 14days

Mass Production: 21days

MOQ: 2

Customization: Voltage, control mode, wiring, housing treatment available

Contact Us:

Sunny Li: +86-18806140118 / sunny@sunlightmotor.com

Alisa Chen: +86-18806140198 / sales3@czsunlight.com

Frances Zhang: +86-18806140168/ sales1@czsunlight.com

Vicky Li: +86-18806140098/ sunlight@sunlightmotor.com


FAQ

1. Q: What core specs does the SLT-0824X-W10 have, and is it suitable for small equipment?

A: It’s a  200mm (8Inch) 24V 96W brushed cooling fan with  710m³/h airflow and 0Pa static pressure—specifically designed to resolve heat buildup in compact devices.

2. Q: How easy is the SLT-0824X-W10 to install, and what setups does it fit?

A: It only requires a flat mounting surface (with proper torque), and its  8Inch (200mm) compact size fits seamlessly into small-scale equipment cooling configurations.

3. Q: What operating conditions does the SLT-0824X-W10 support, and is it durable?

A: It works reliably at  -40~+85℃; its oil-free bearing design avoids leakage risks and ensures consistent long-term performance for your devices.

4. Q: How can I avoid wiring errors when setting up the SLT-0824X-W10?

A: Follow the clear  red/black wire polarity marking—reverse polarity may damage the fan, and this labeling cuts misconnection risks.

5. Q: What power configuration ensures stable performance for the SLT-0824X-W10?

A: Use  24V nominal voltage (power ripple ≤1%)—this maintains steady 96W output, with no speed fluctuations during operation.
